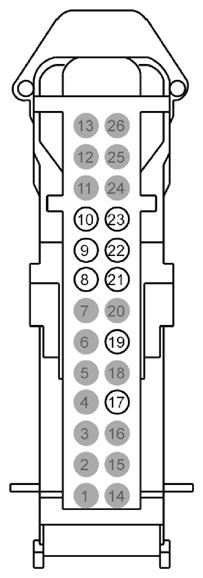

Smart Junction Box (SJB) Connector End View (C2280F)

Fig 1: Identifying Smart Junction Box Connector (C2280F)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	CRW01 (WH)	22	INPUT - WIPERS ON
9	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID
10	CPL25 (BU-OG)	20	SWITCH - HOOD # AJAR
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	CLF06 (BN-GN)	20	CTRL MOD. - CORNERING LAMP LEFT
18	*	*	Not Used
19	CLF07 (GY-OG)	20	CTRL MOD. - CORNERING LAMP RIGHT
20	*	*	Not Used
21	CLS21 (BU-GN)	18	CTRL MOD. - TURN LAMP LEFT FRONT
22	RMC19 (YE-GY)	20	SWITCH - LOW LEVEL BRAKE FLUID RETURN
23	CLS25 (YE-VT)	18	CTRL MOD. - TURN LAMP RIGHT FRONT
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
