Component Location Views

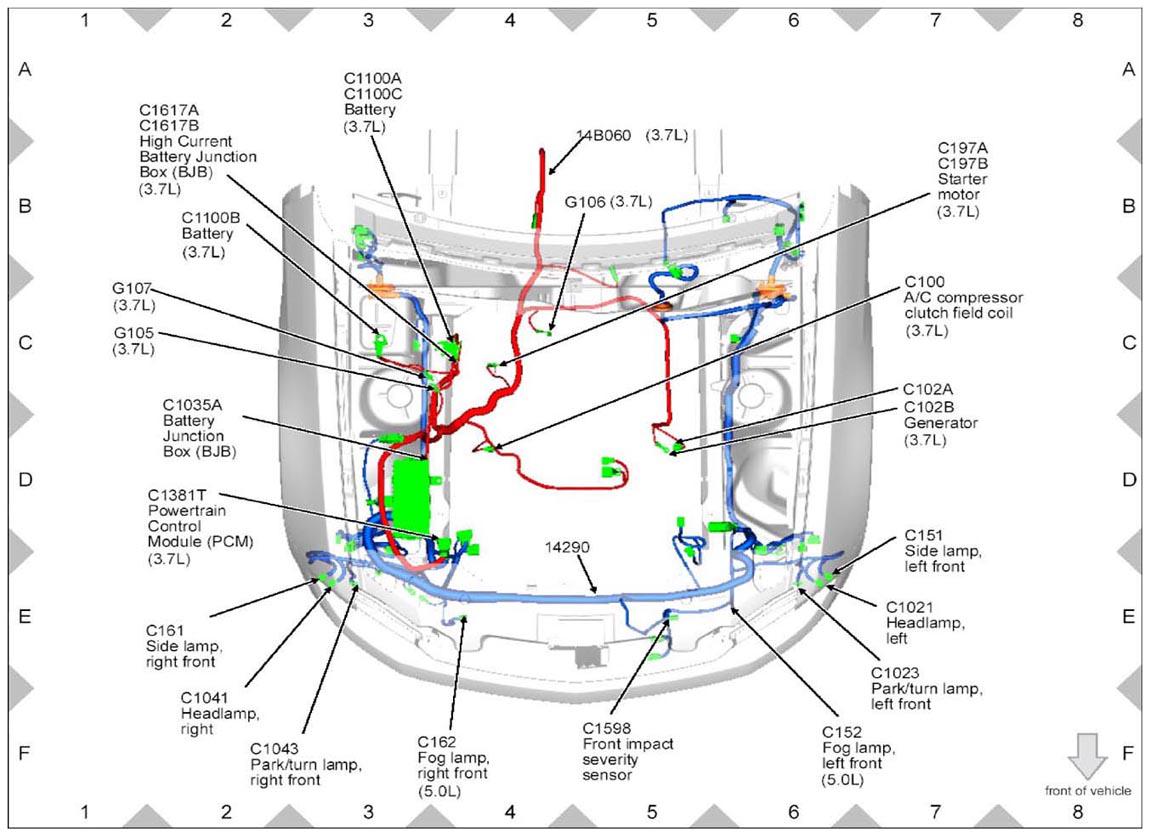

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 5)

G09284004

Courtesy of FORD MOTOR CO.

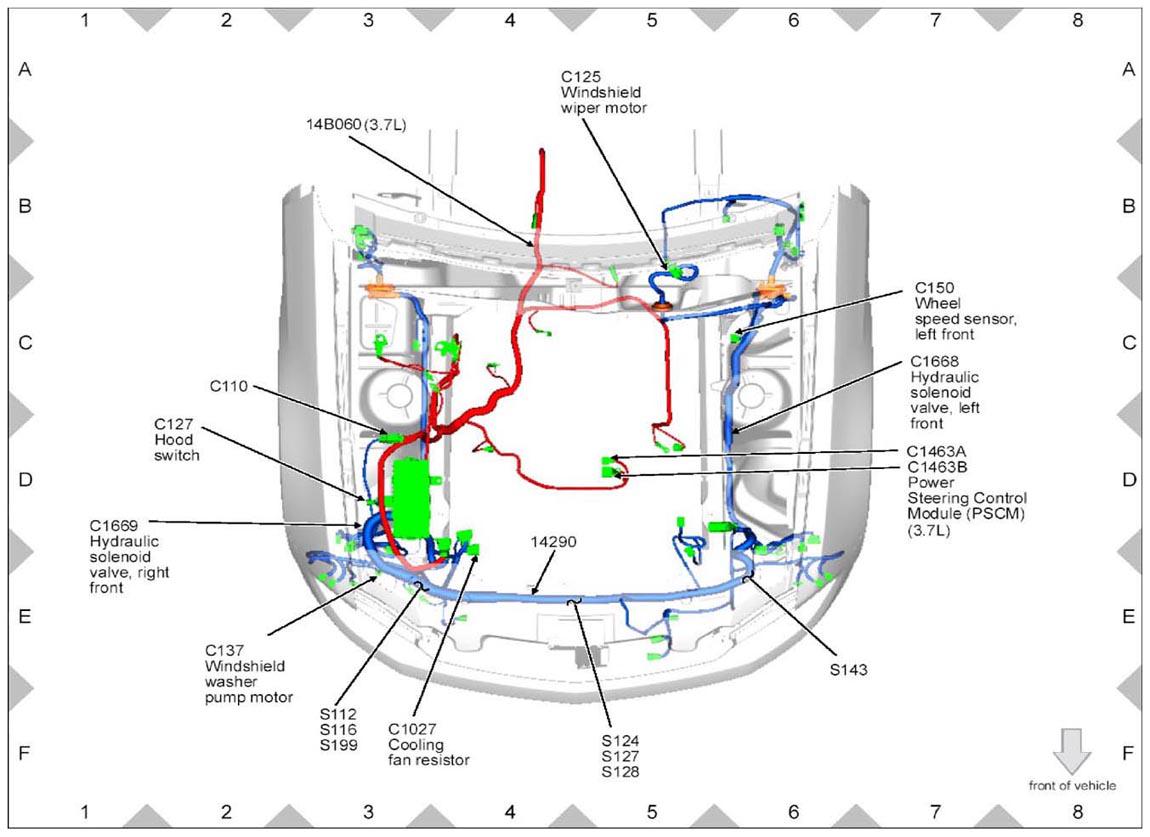

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 5)

G09284005

Courtesy of FORD MOTOR CO.

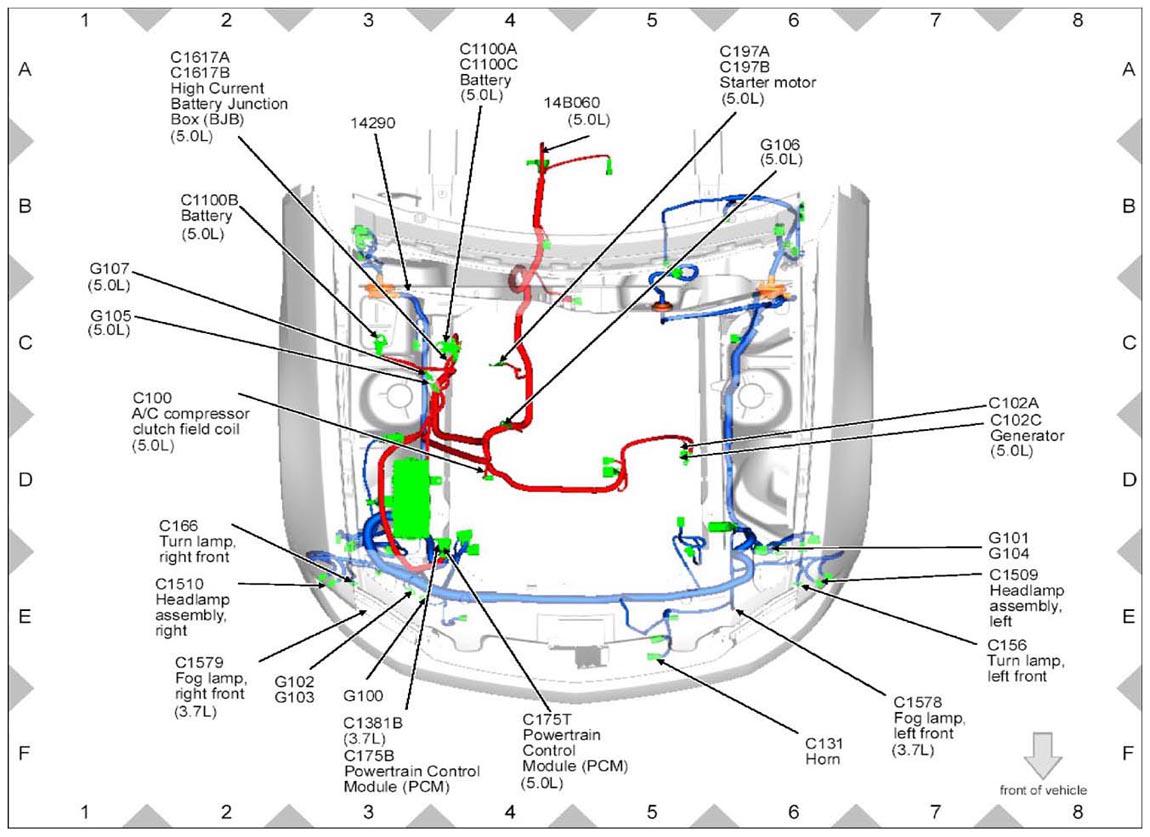

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 5)

G09284006

Courtesy of FORD MOTOR CO.

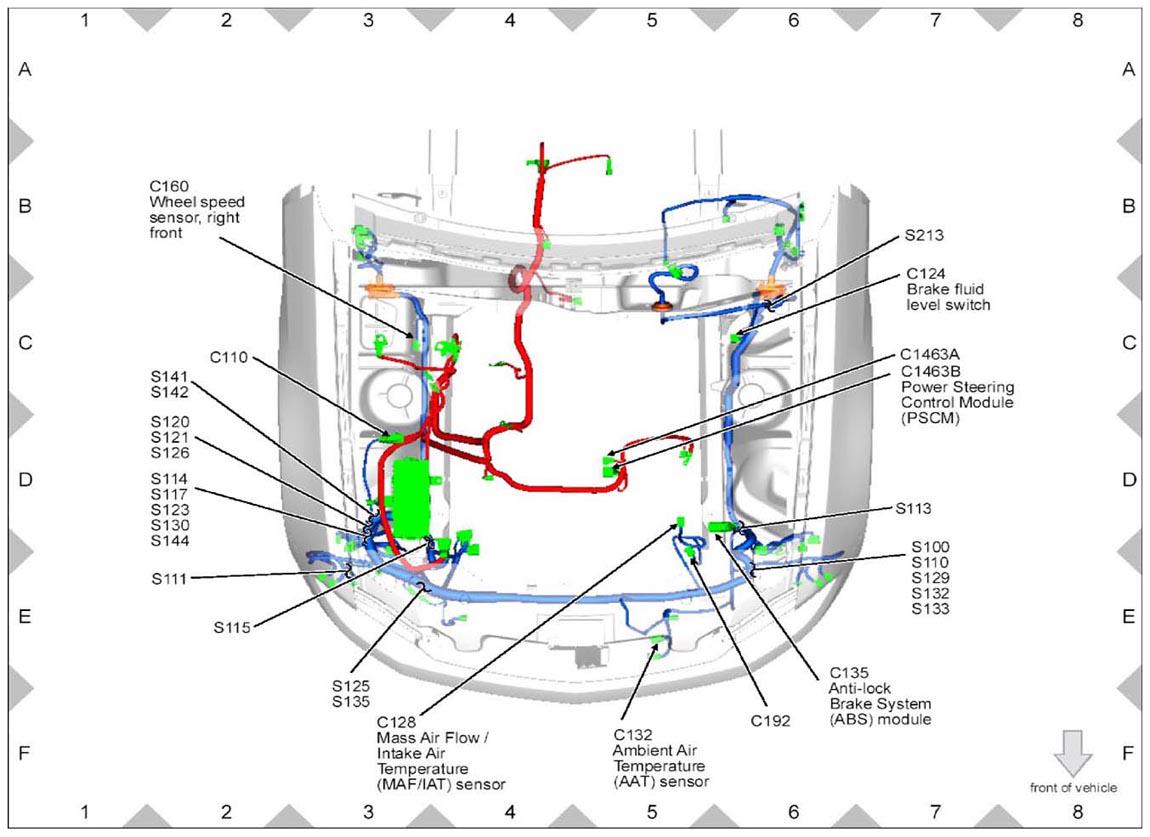

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 5)

G09284007

Courtesy of FORD MOTOR CO.

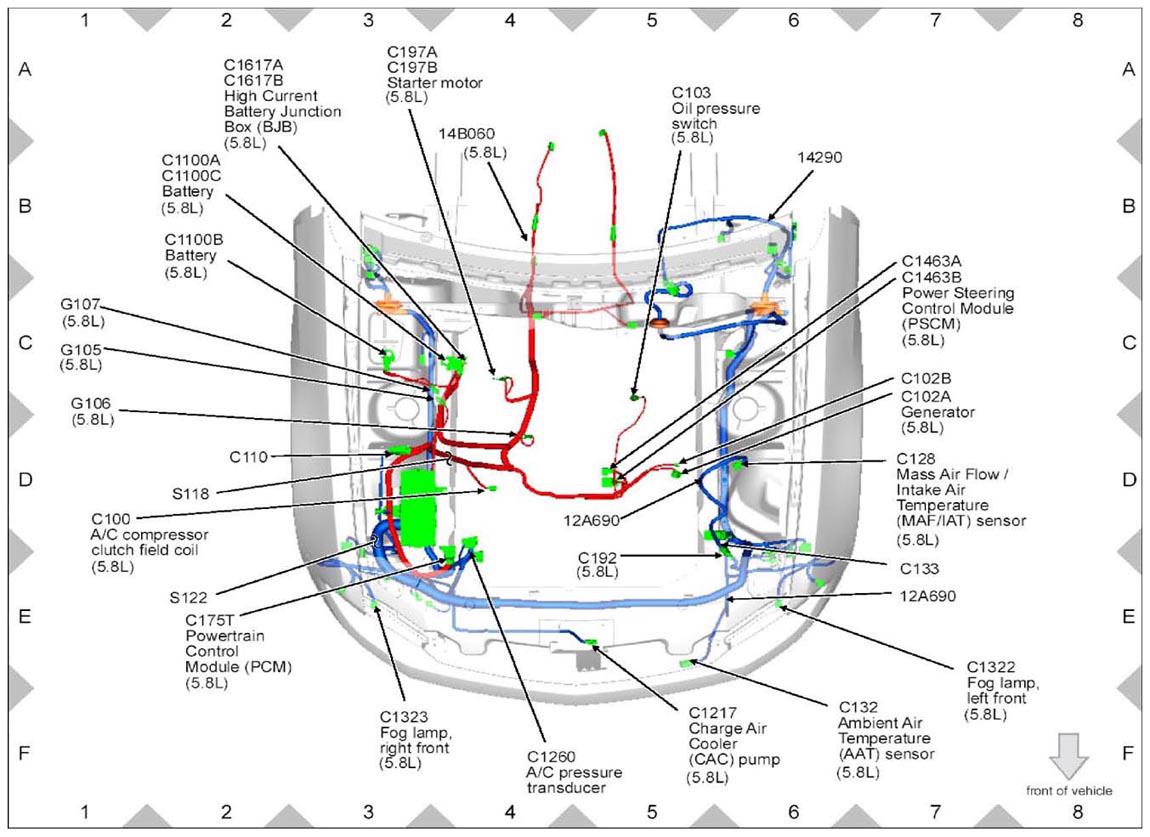

Fig 5: Engine Compartment Wiring Harness Connectors Location (5 Of 5)

G09284008

Courtesy of FORD MOTOR CO.

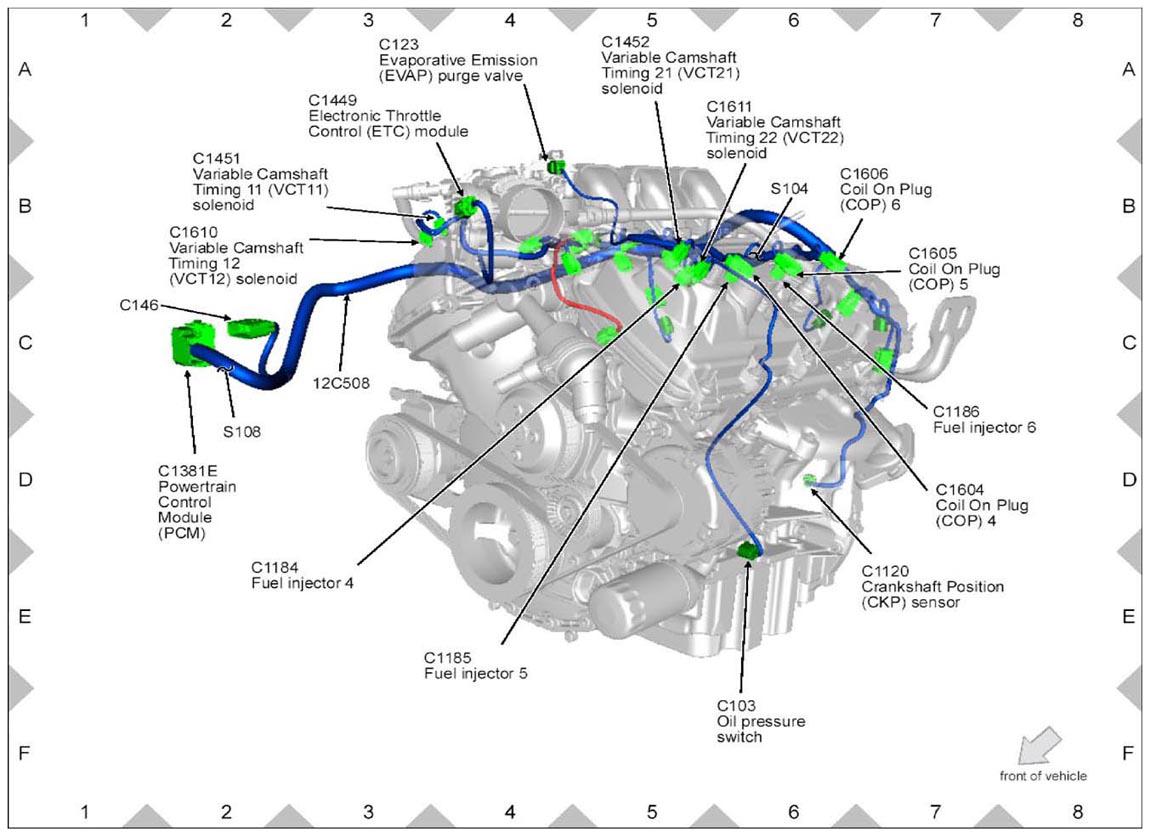

Fig 6: Engine Wiring Harness Connectors Location (1 Of 6)

G09284009

Courtesy of FORD MOTOR CO.

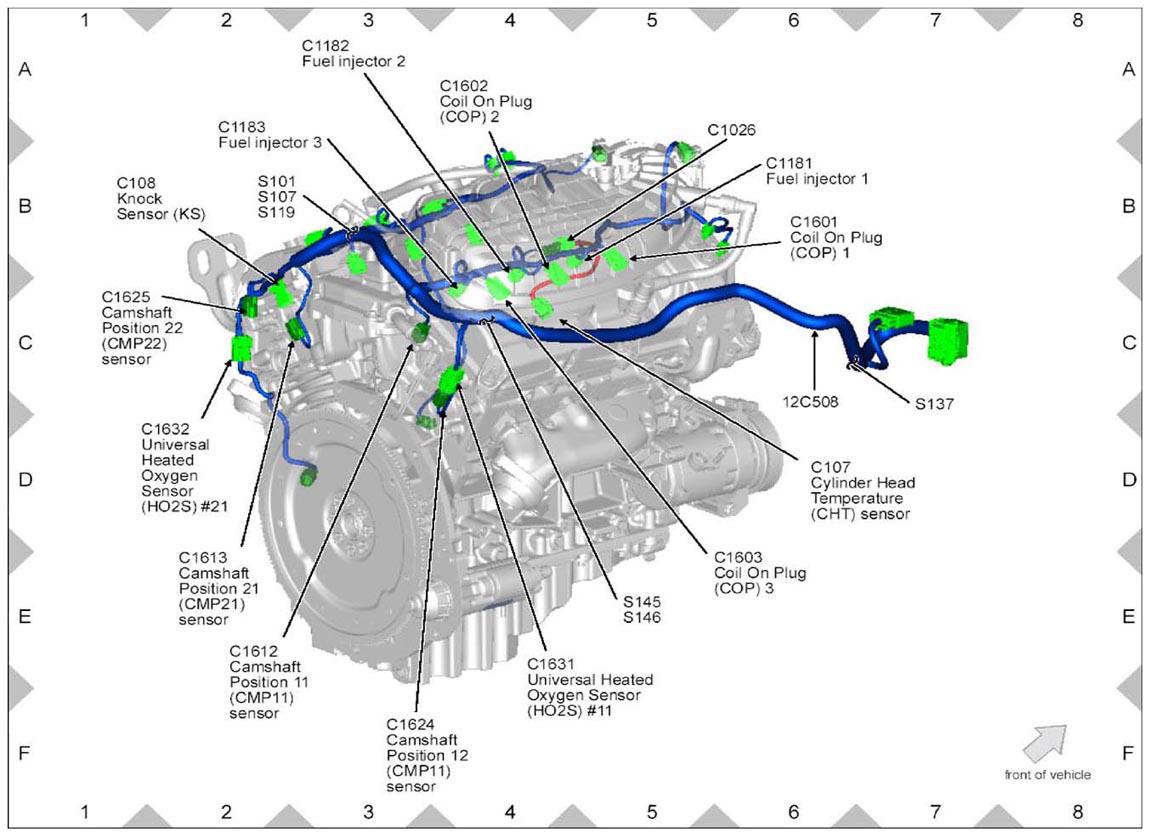

Fig 7: Engine Wiring Harness Connectors Location (2 Of 6)

G09284010

Courtesy of FORD MOTOR CO.

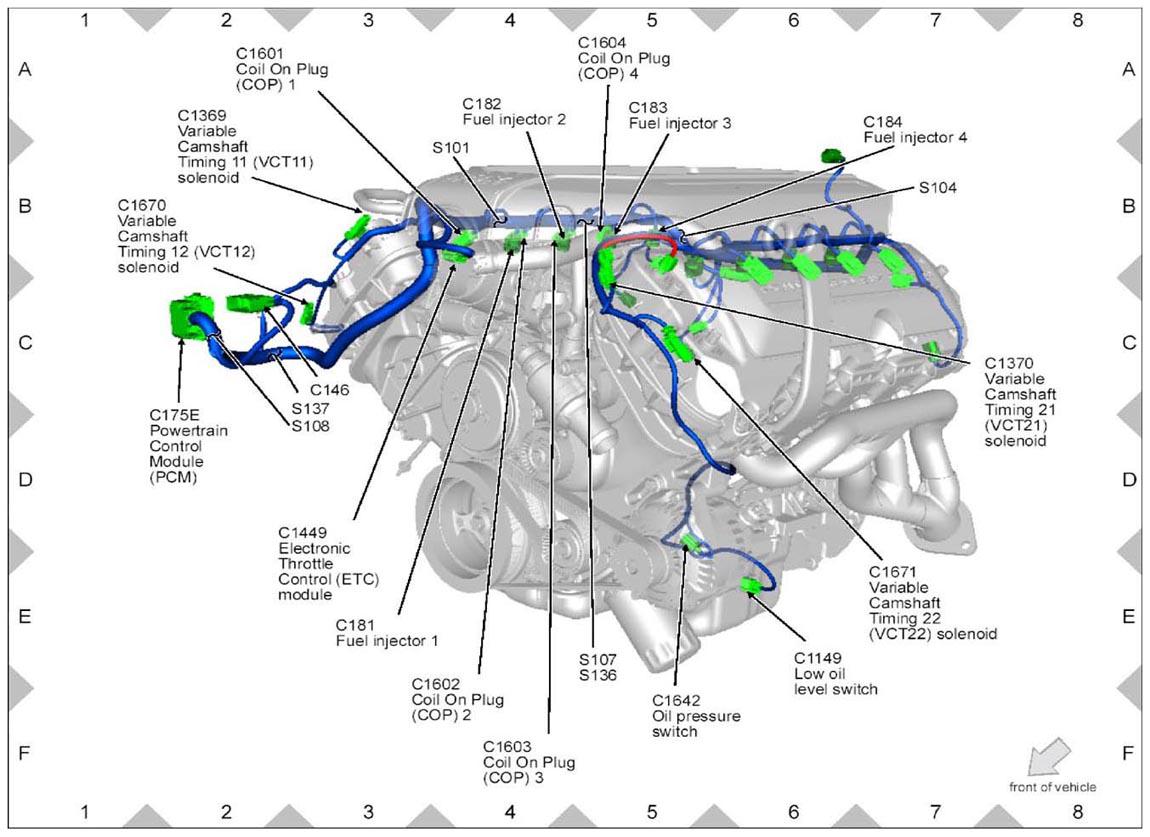

Fig 8: Engine Wiring Harness Connectors Location (3 Of 6)

G09284011

Courtesy of FORD MOTOR CO.

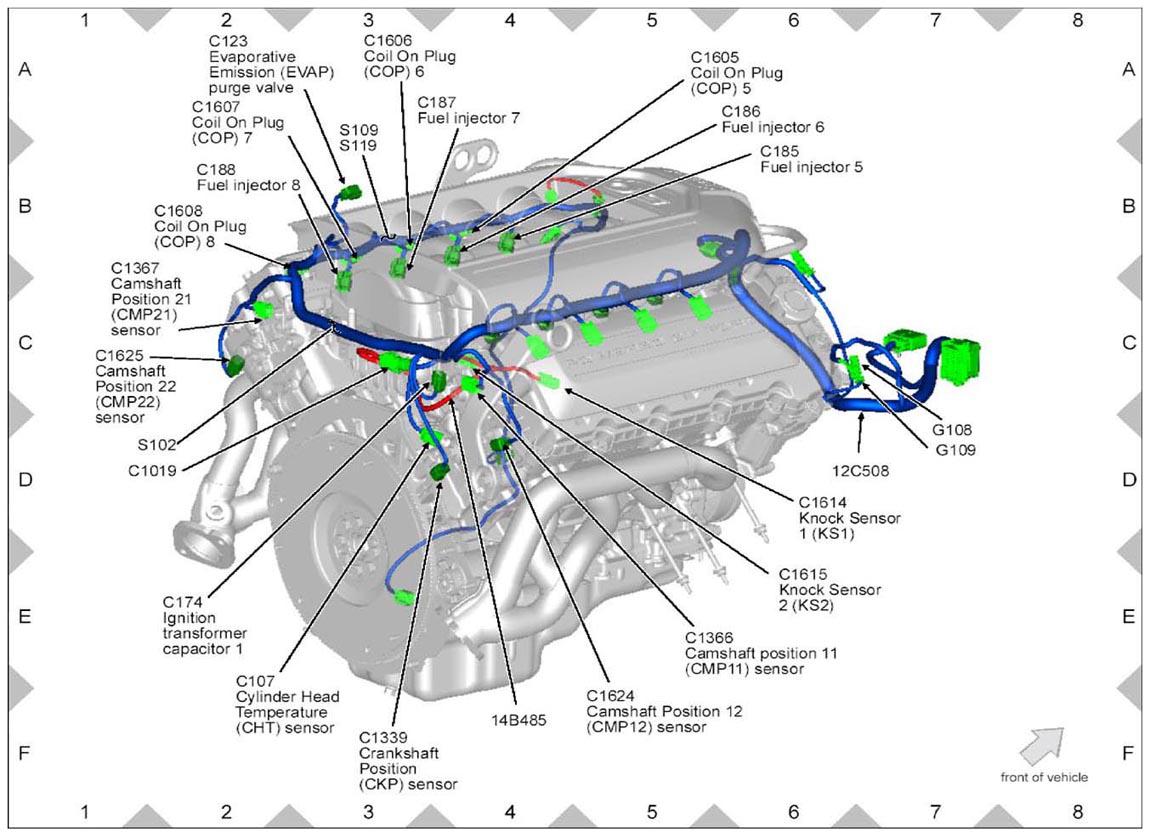

Fig 9: Engine Wiring Harness Connectors Location (4 Of 6)

G09284012

Courtesy of FORD MOTOR CO.

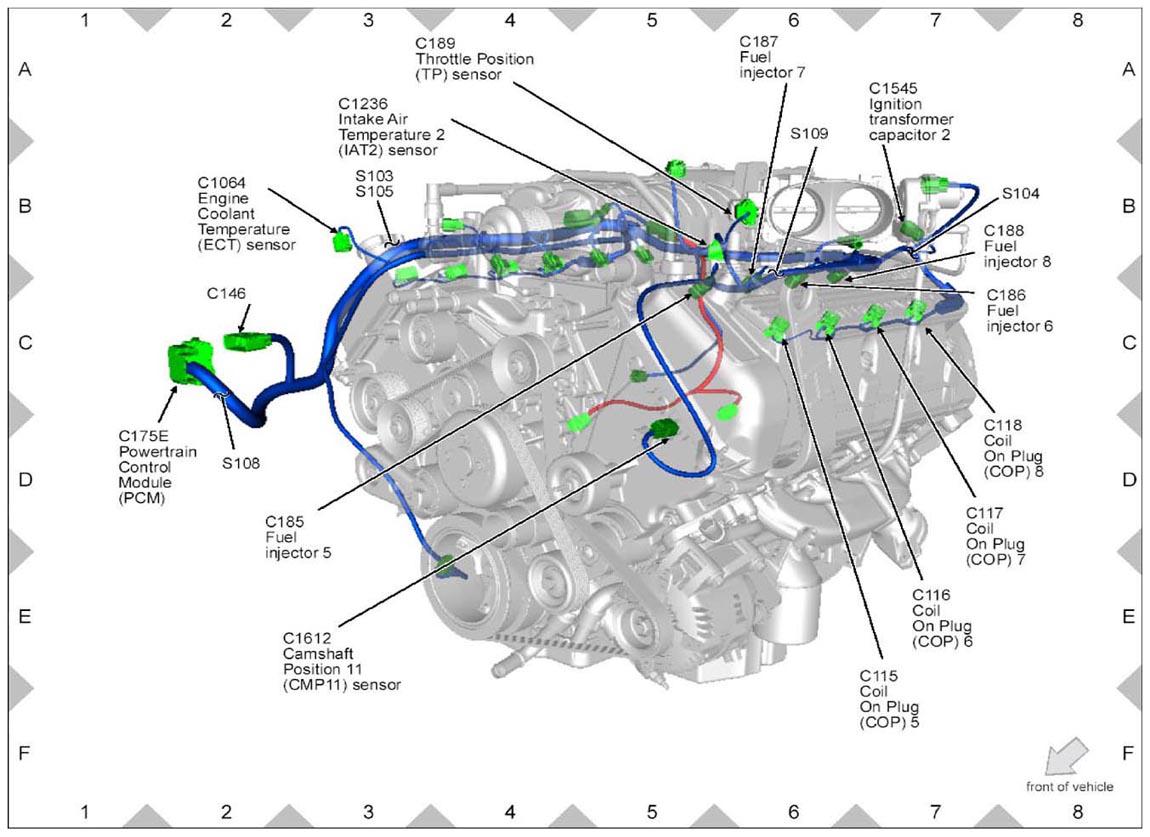

Fig 10: Engine Wiring Harness Connectors Location (5 Of 6)

G09284013

Courtesy of FORD MOTOR CO.

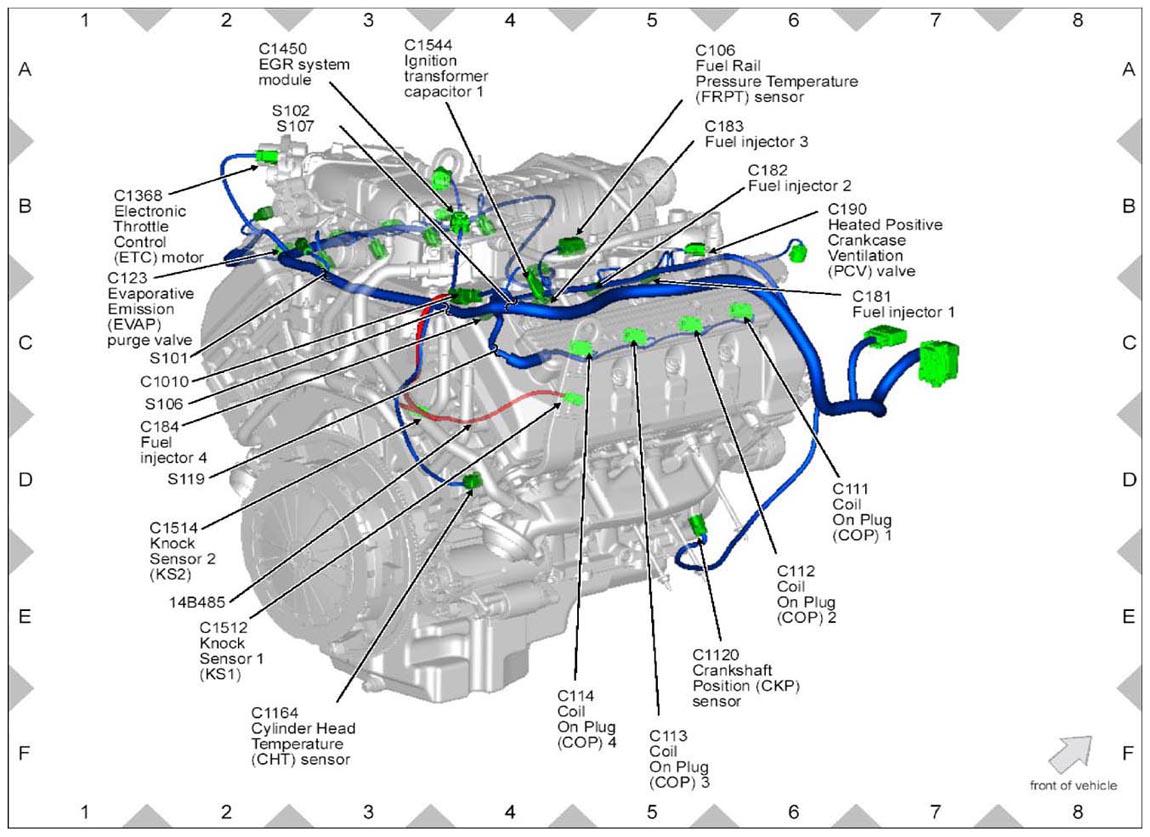

Fig 11: Engine Wiring Harness Connectors Location (6 Of 6)

G09284014

Courtesy of FORD MOTOR CO.

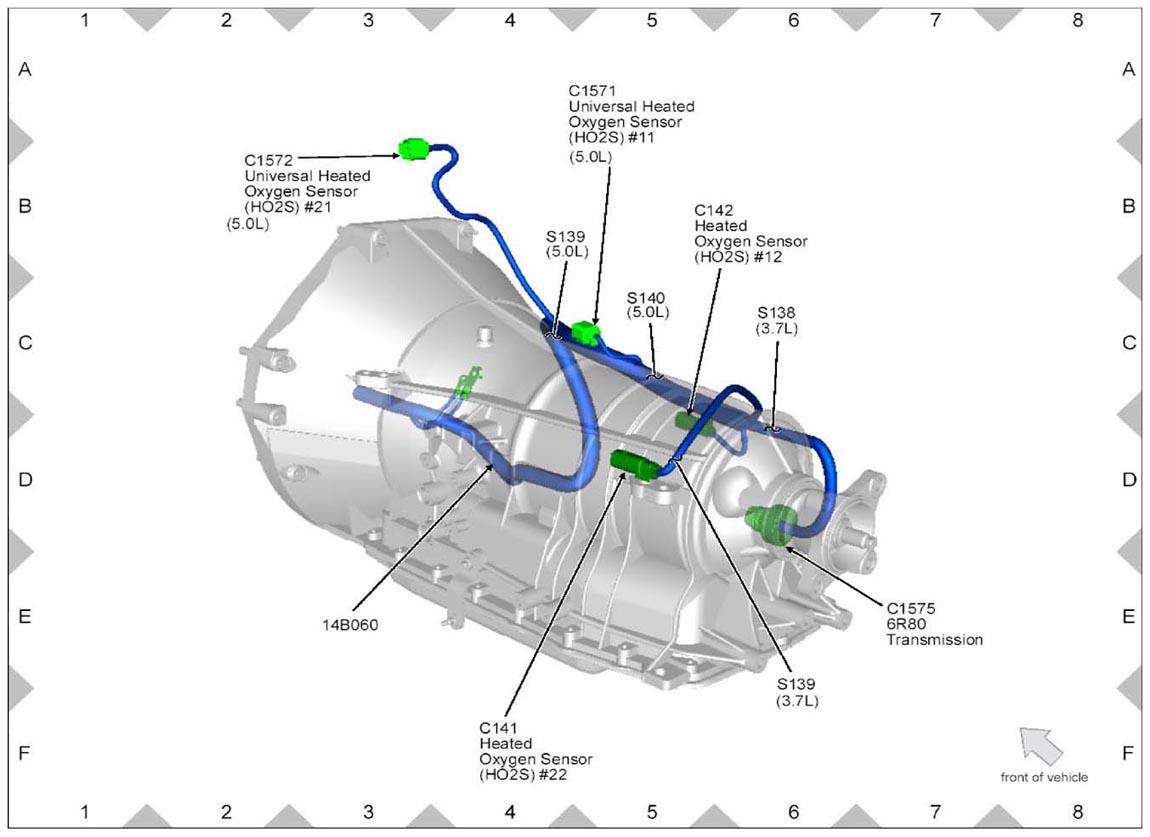

Fig 12: Transmission Wiring Harness Connectors Location (1 Of 3)

G09284015

Courtesy of FORD MOTOR CO.

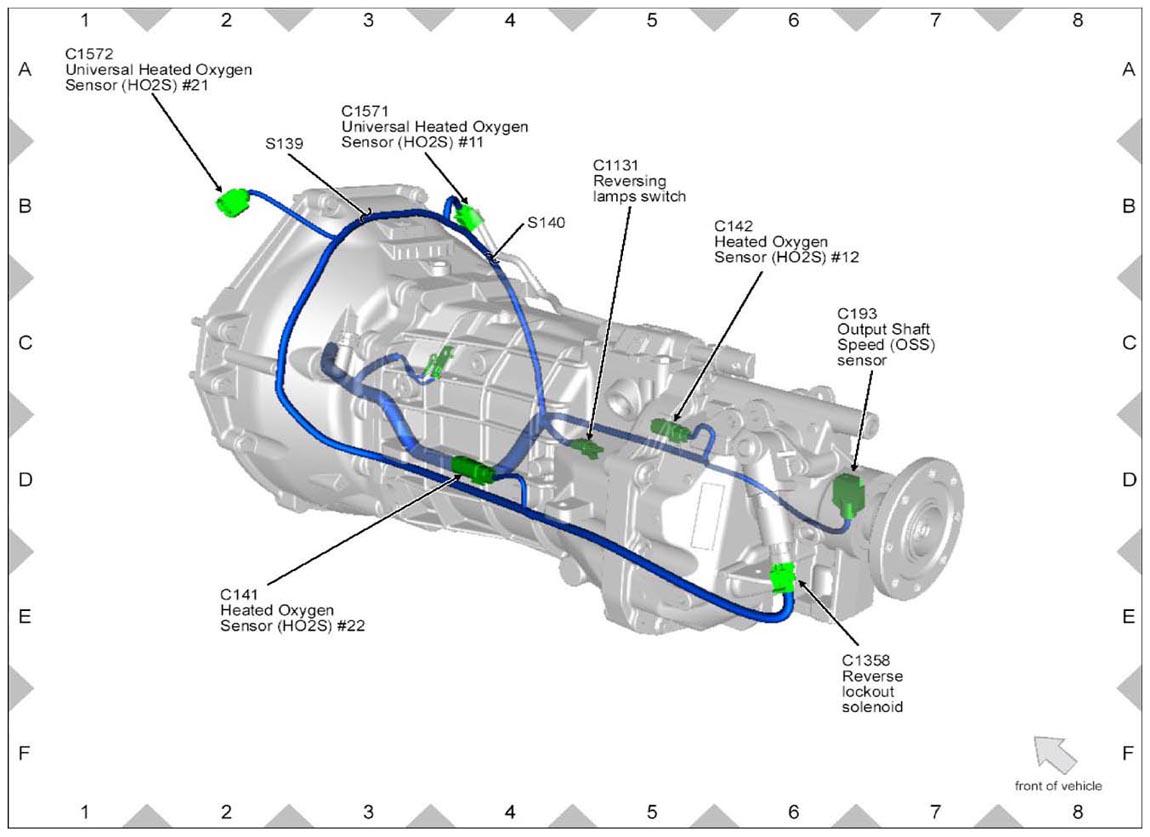

Fig 13: Transmission Wiring Harness Connectors Location (2 Of 3)

G09284016

Courtesy of FORD MOTOR CO.

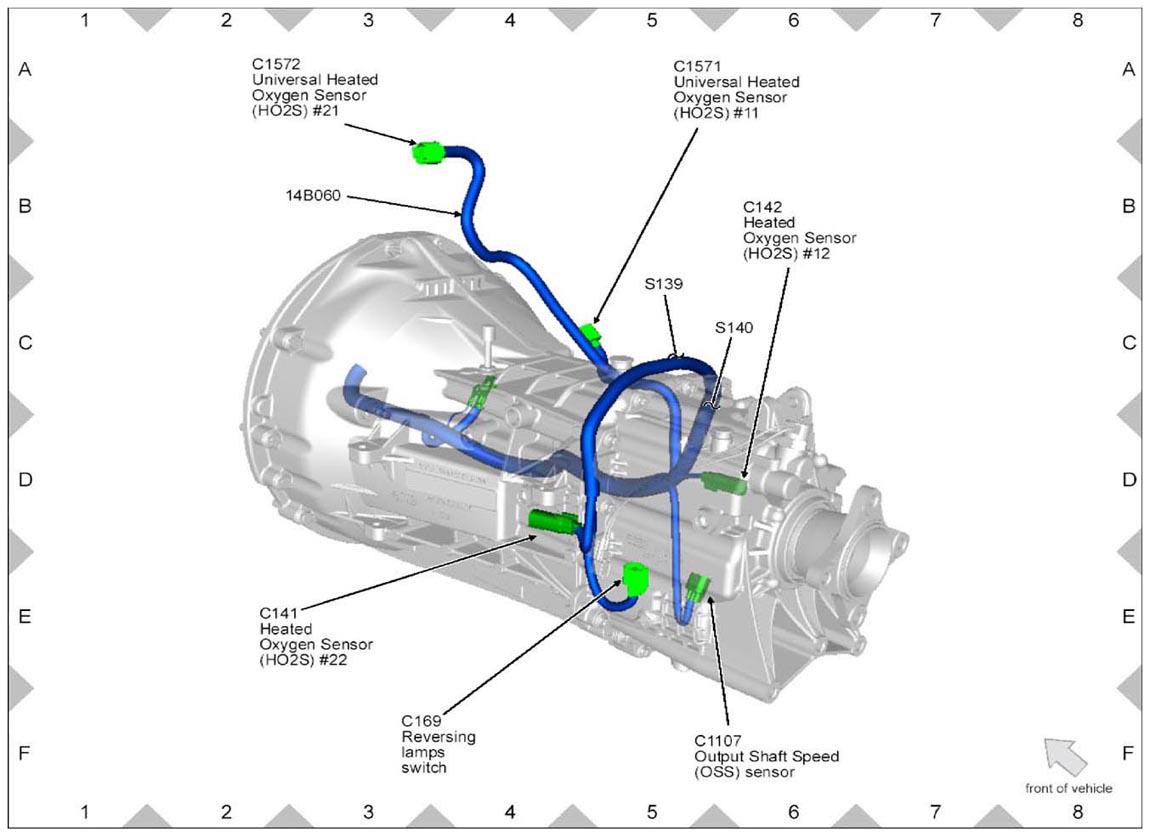

Fig 14: Transmission Wiring Harness Connectors Location (3 Of 3)

G09284017

Courtesy of FORD MOTOR CO.

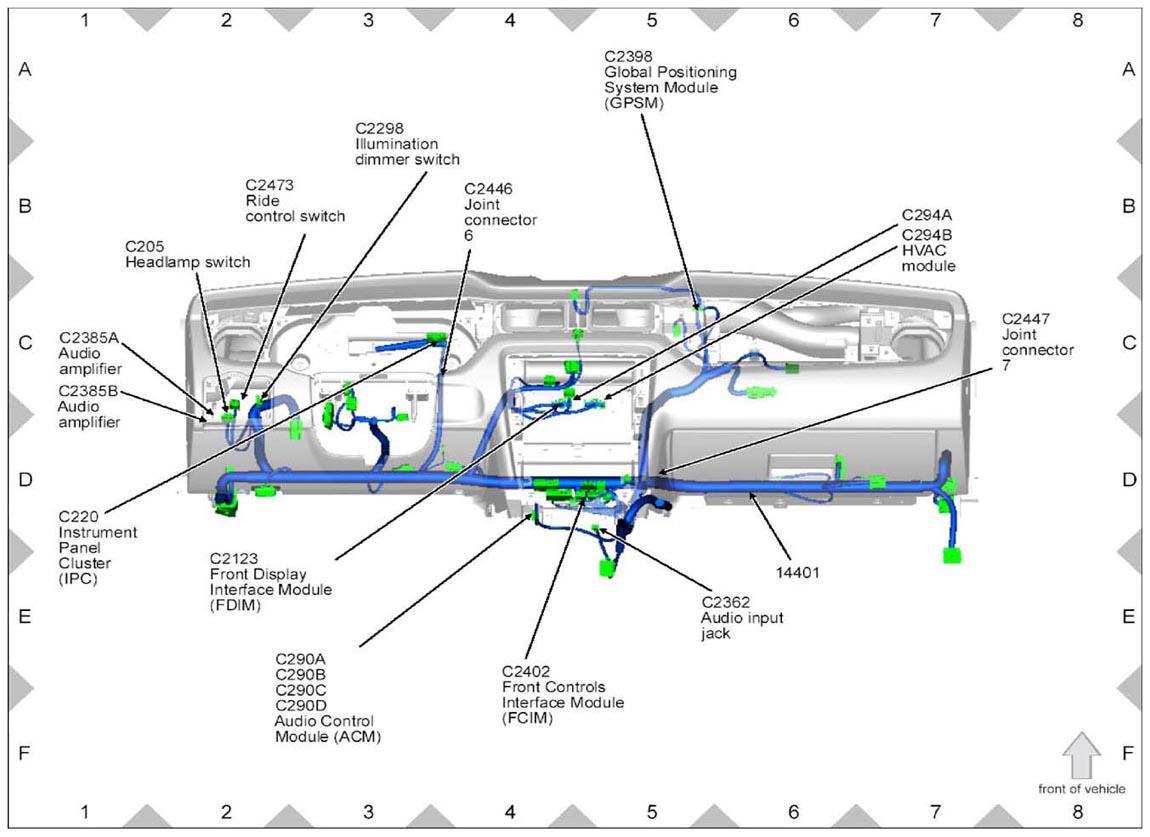

Fig 15: Dashboard Wiring Harness Connectors Location (1 Of 4)

G09284018

Courtesy of FORD MOTOR CO.

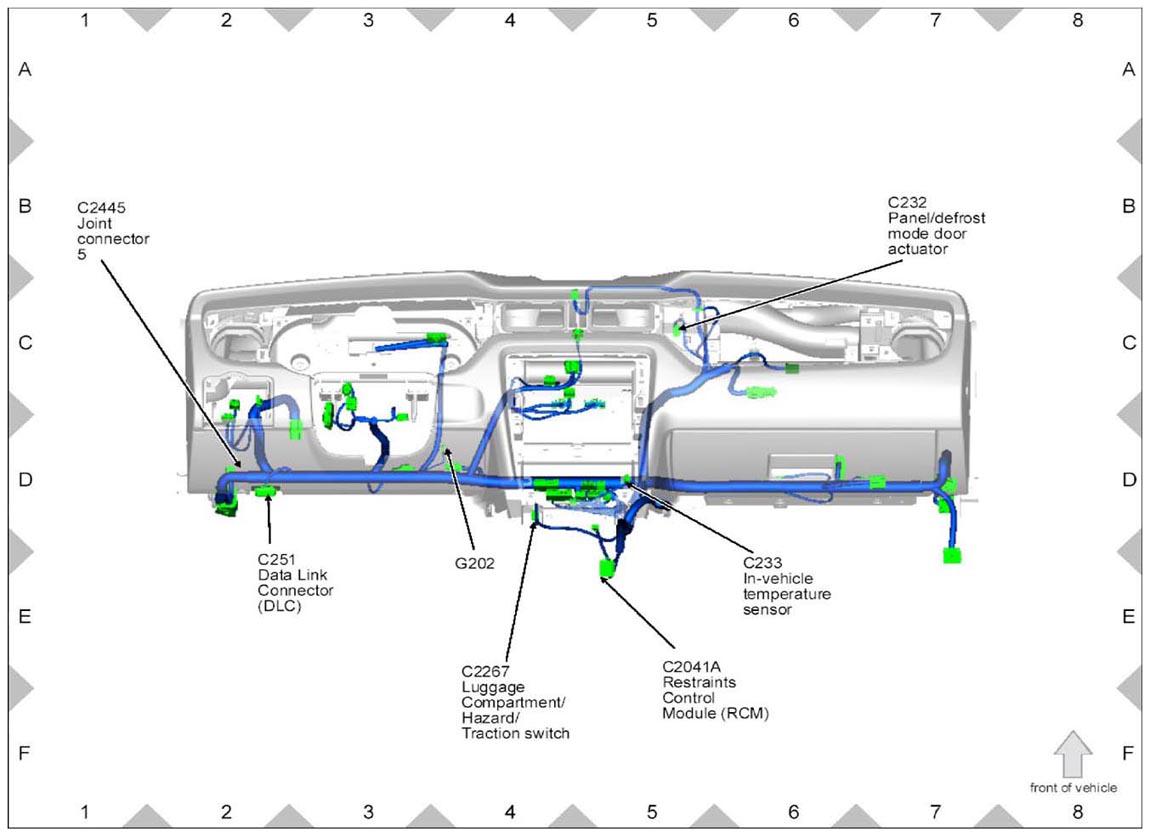

Fig 16: Dashboard Wiring Harness Connectors Location (2 Of 4)

G09284019

Courtesy of FORD MOTOR CO.

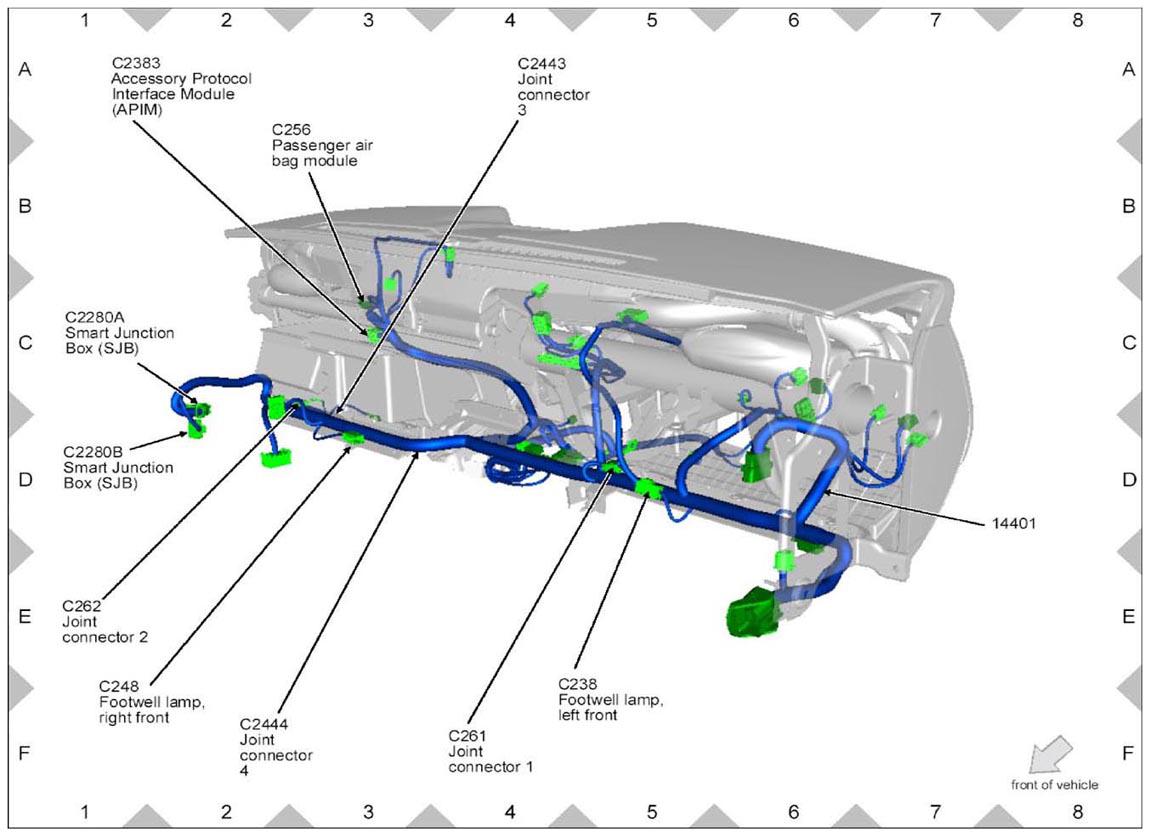

Fig 17: Dashboard Wiring Harness Connectors Location (3 Of 4)

G09284020

Courtesy of FORD MOTOR CO.

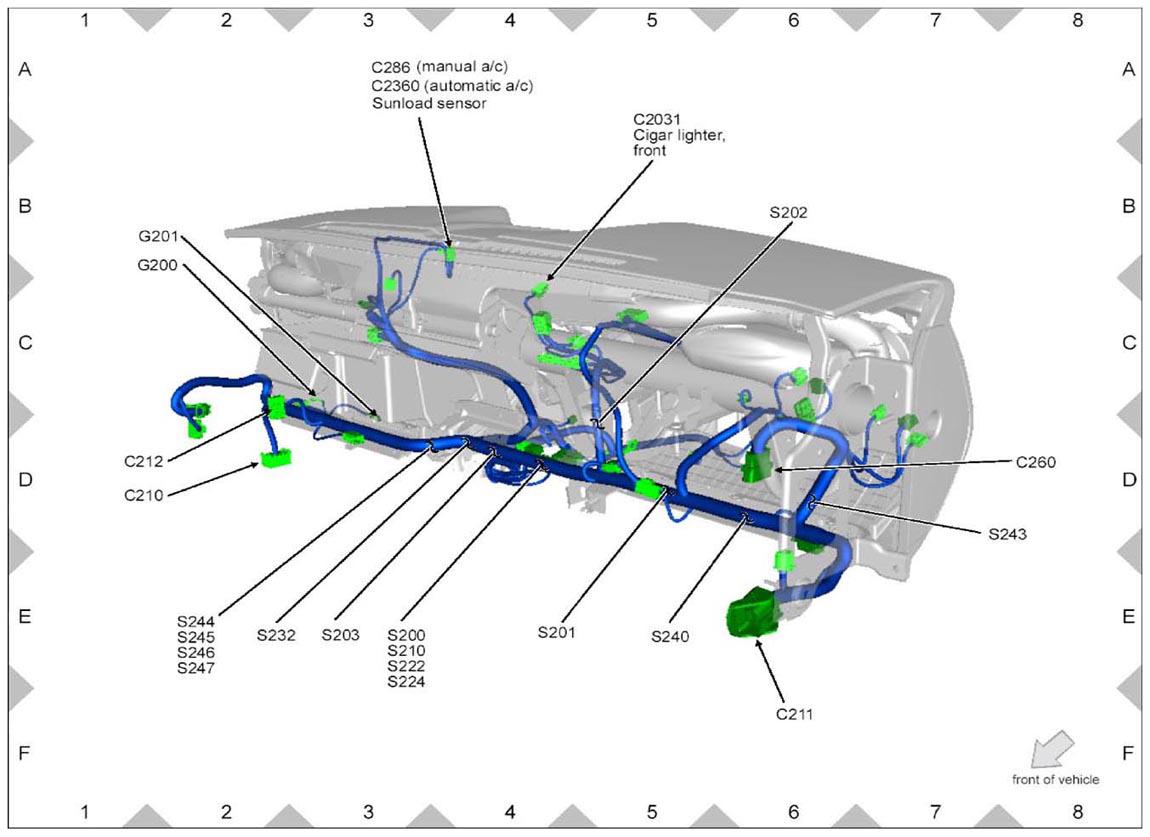

Fig 18: Dashboard Wiring Harness Connectors Location (4 Of 4)

G09284021

Courtesy of FORD MOTOR CO.

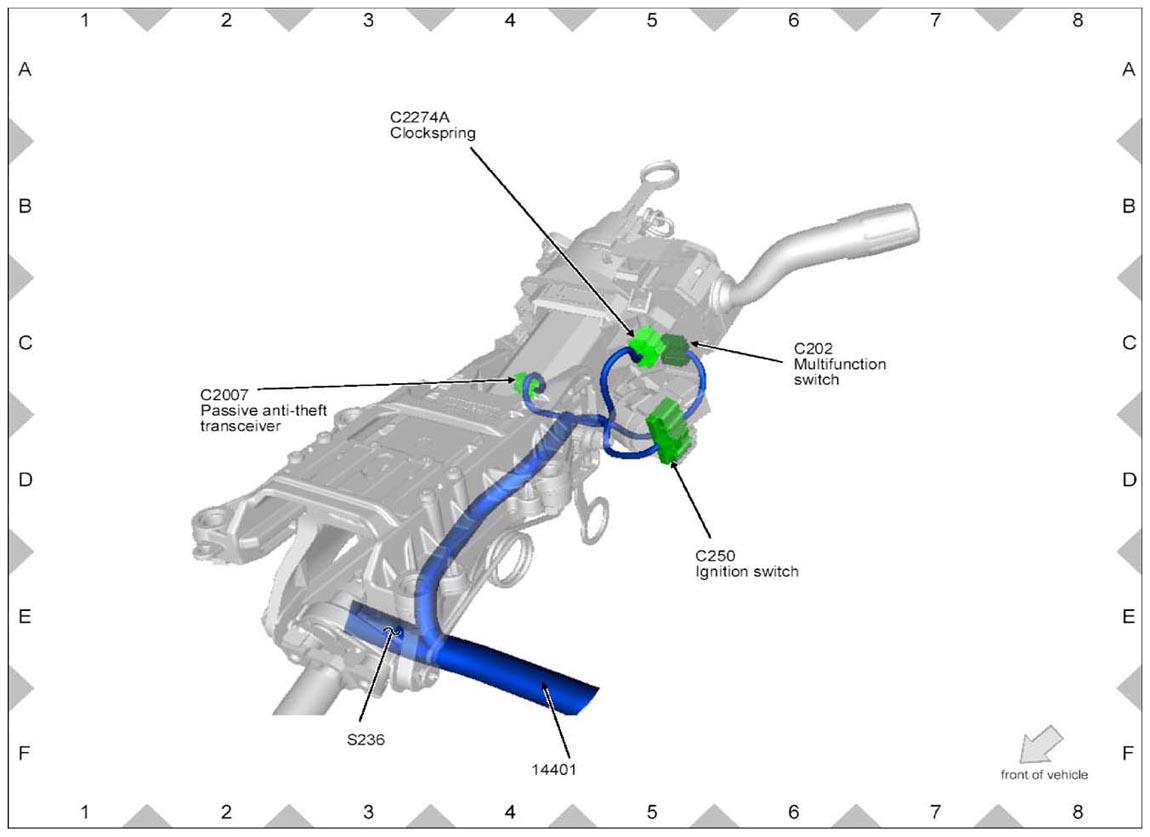

Fig 19: Steering Column Wiring Harness Connectors Location

G09284022

Courtesy of FORD MOTOR CO.

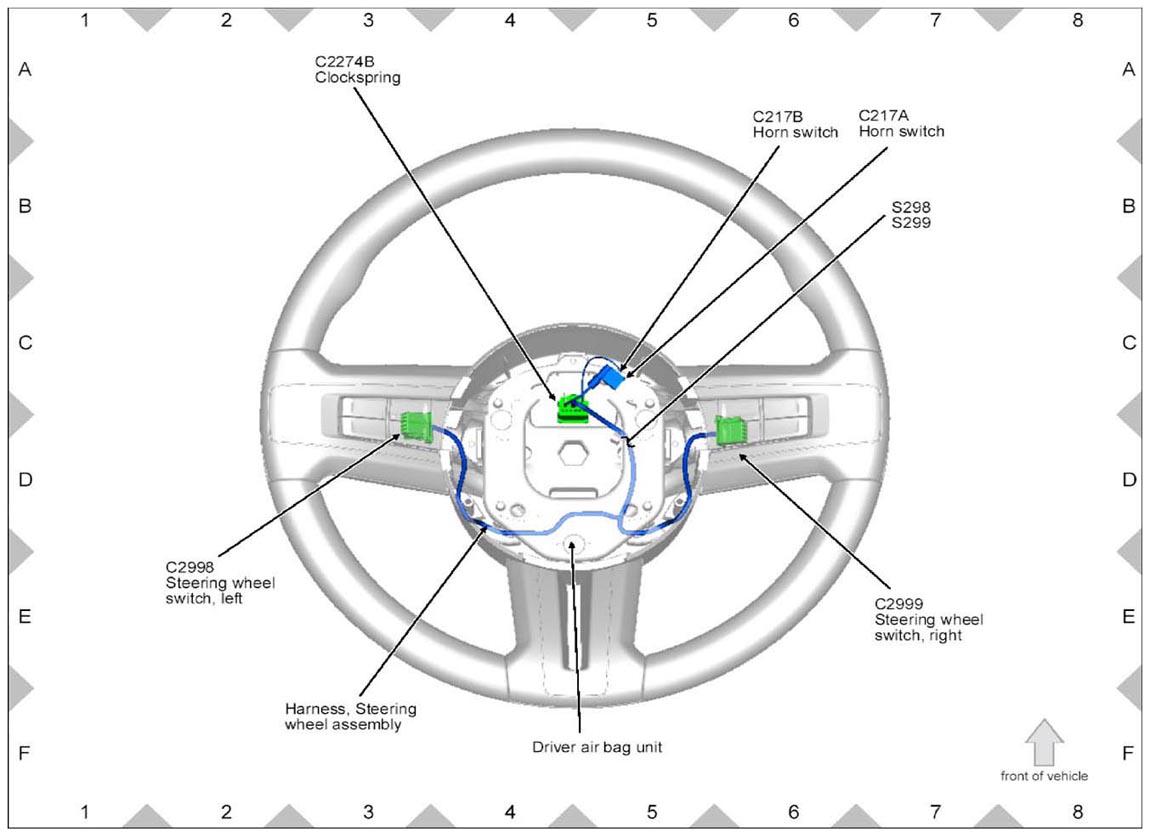

Fig 20: Steering Wheel Wiring Harness Connectors Location

G09284023

Courtesy of FORD MOTOR CO.

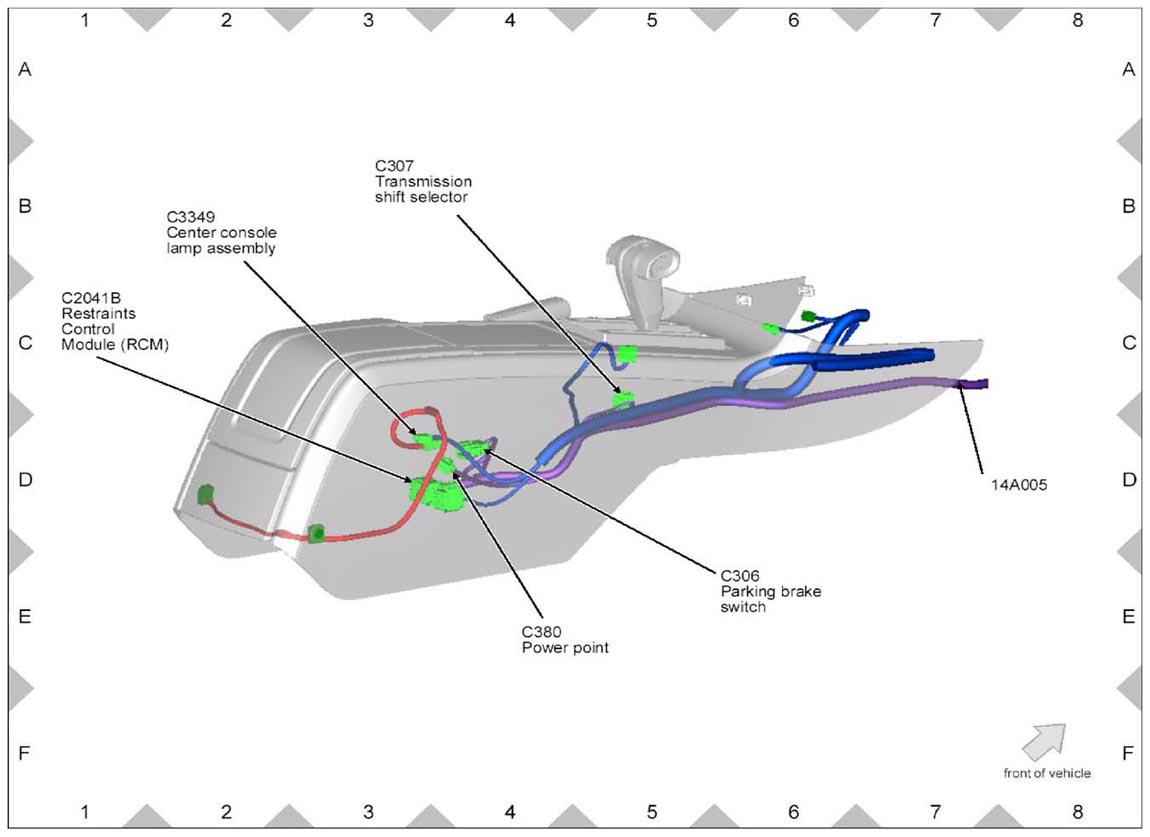

Fig 21: Center Console Wiring Harness Connectors Location

G09284024

Courtesy of FORD MOTOR CO.

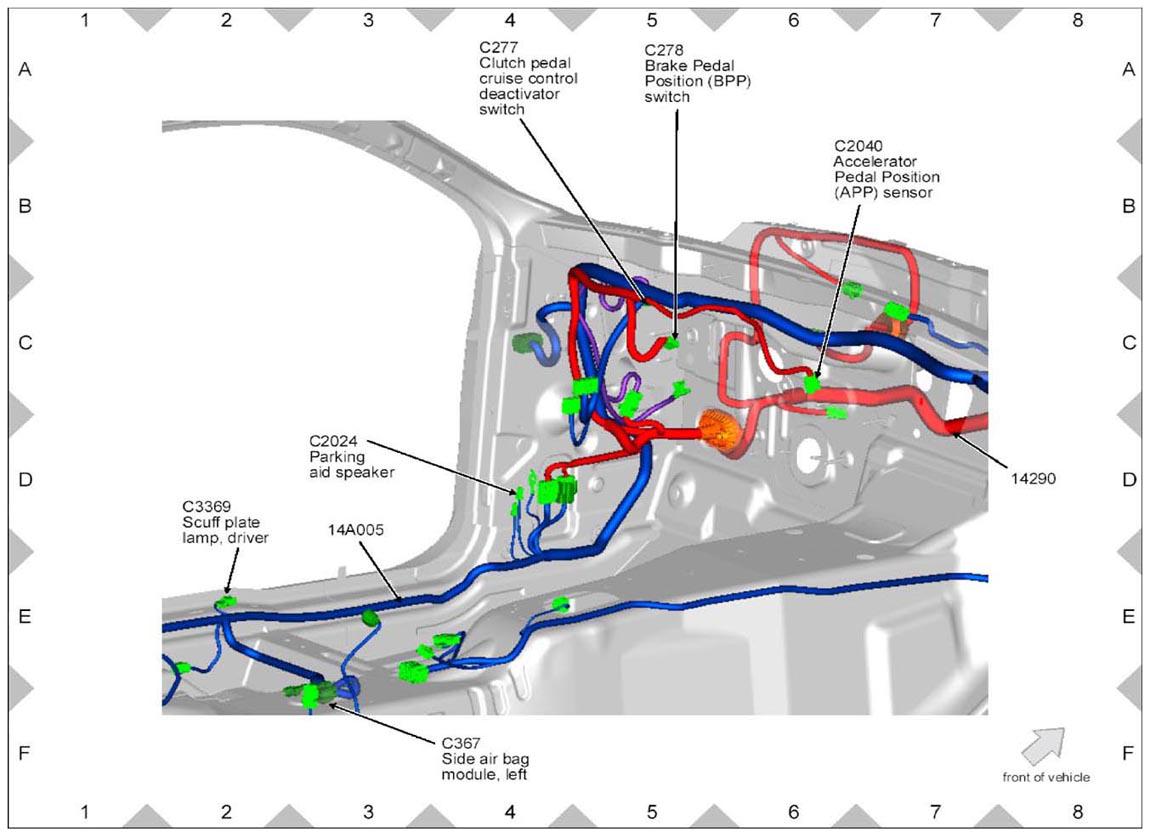

Fig 22: LH Front Compartment Wiring Harness Connectors Location (1 Of 2)

G09284025

Courtesy of FORD MOTOR CO.

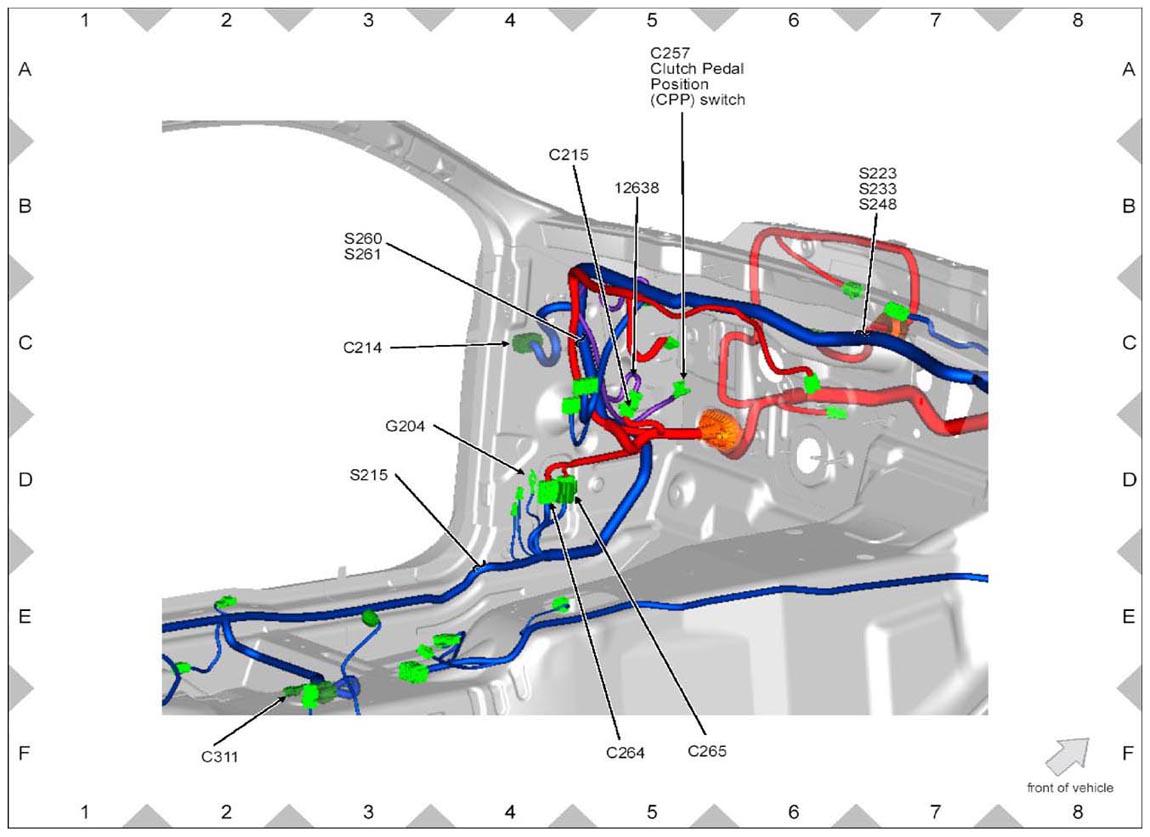

Fig 23: LH Front Compartment Wiring Harness Connectors Location (2 Of 2)

G09284026

Courtesy of FORD MOTOR CO.

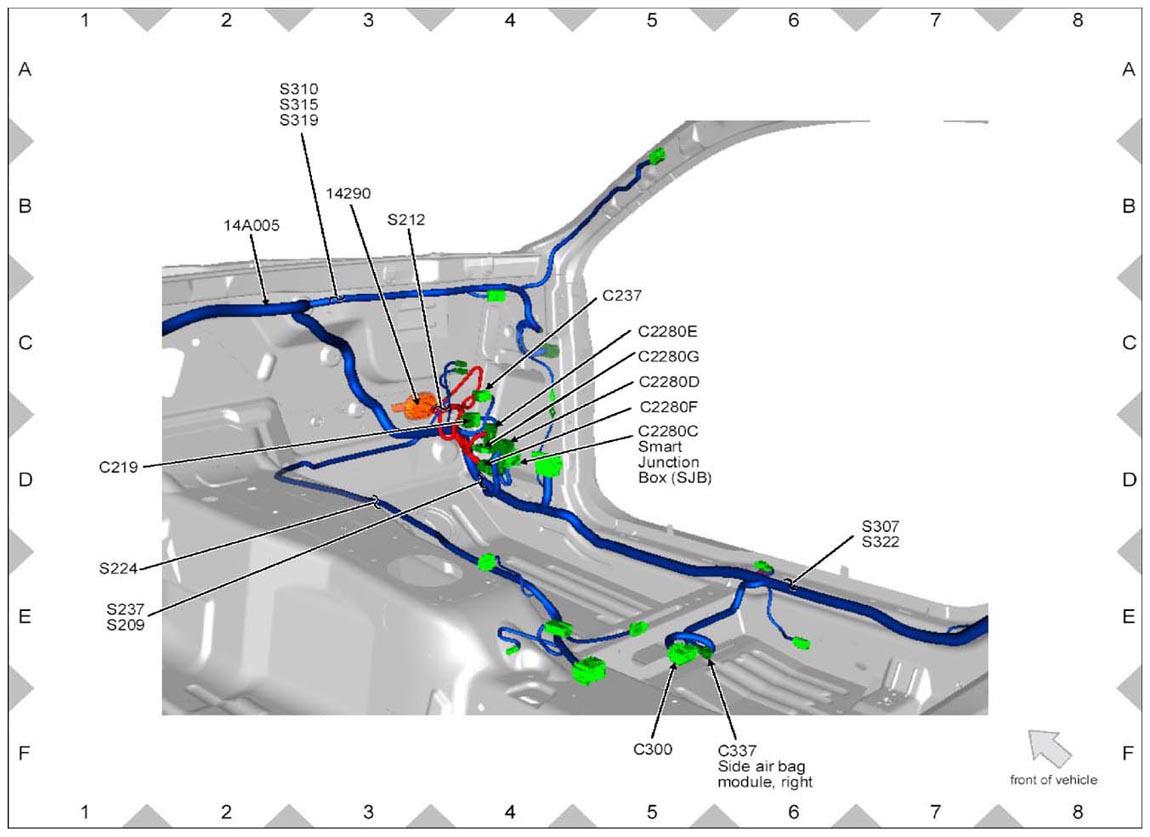

Fig 24: RH Front Compartment Wiring Harness Connectors Location (1 Of 2)

G09284027

Courtesy of FORD MOTOR CO.

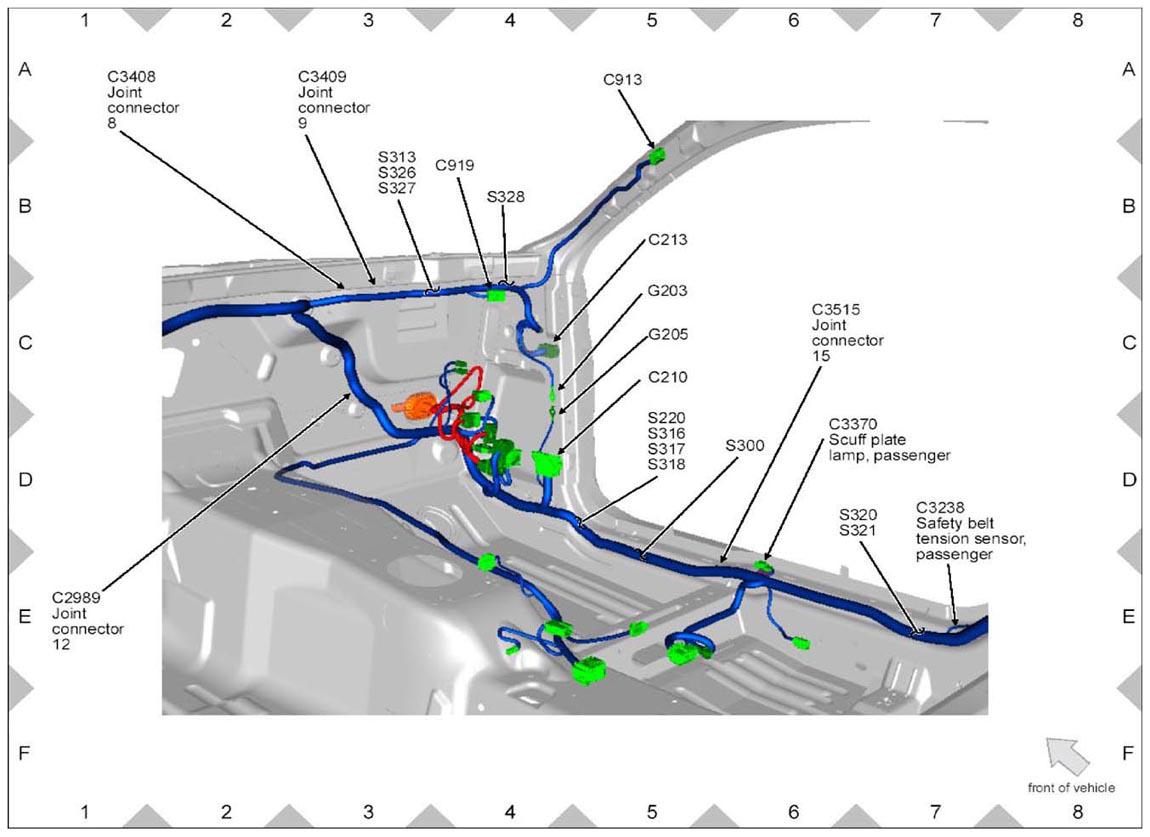

Fig 25: RH Front Compartment Wiring Harness Connectors Location (2 Of 2)

G09284028

Courtesy of FORD MOTOR CO.

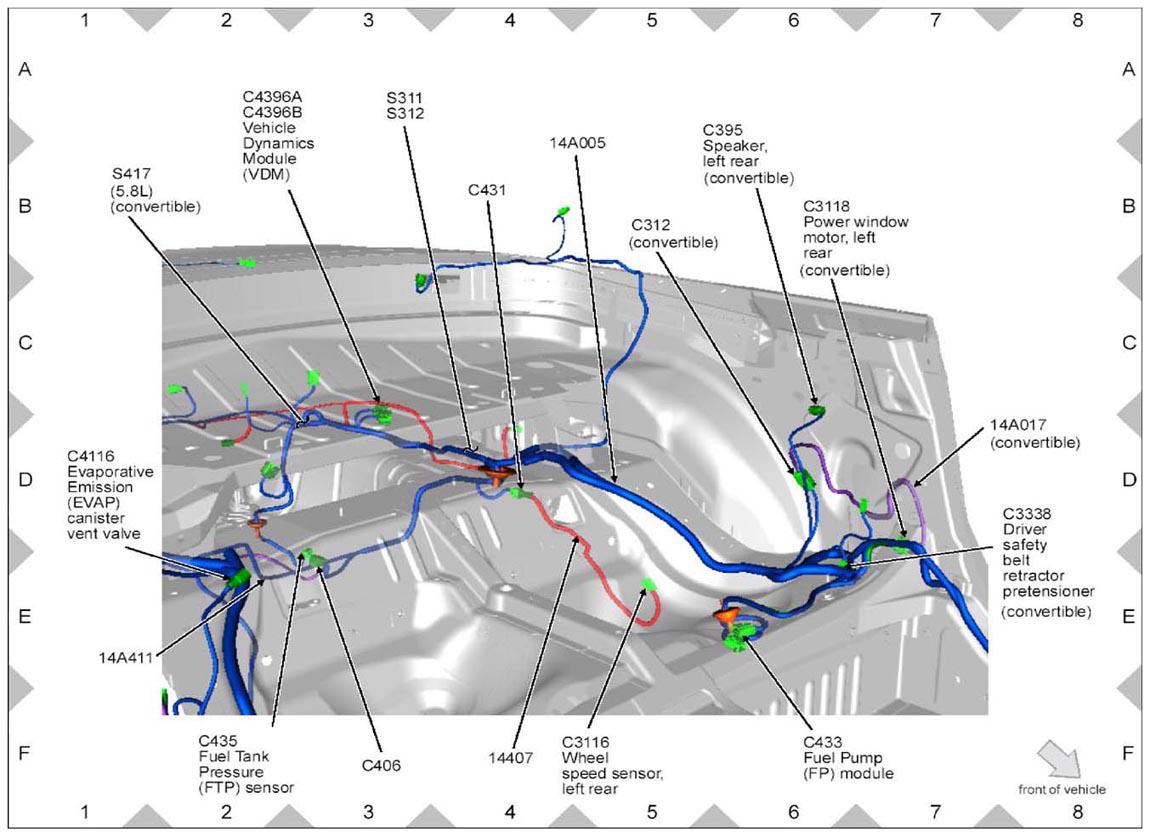

Fig 26: LH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G09284029

Courtesy of FORD MOTOR CO.

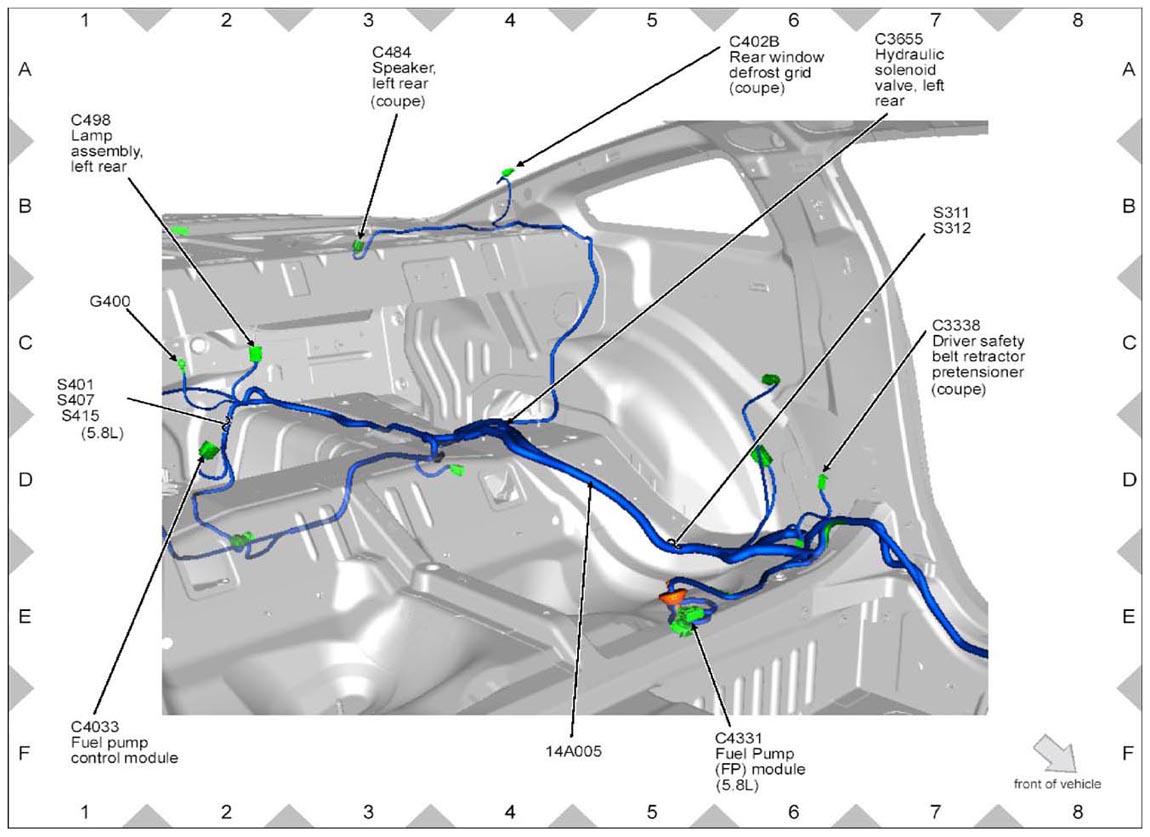

Fig 27: LH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G09284030

Courtesy of FORD MOTOR CO.

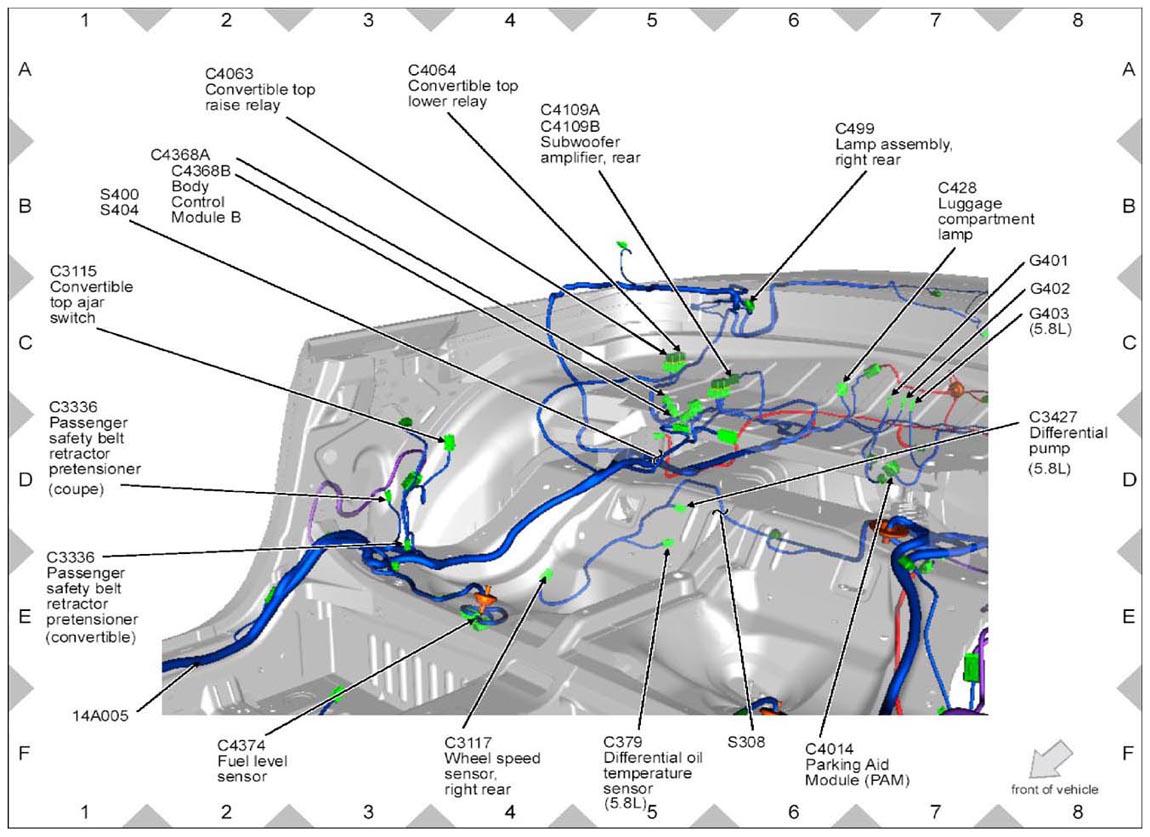

Fig 28: RH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G09284031

Courtesy of FORD MOTOR CO.

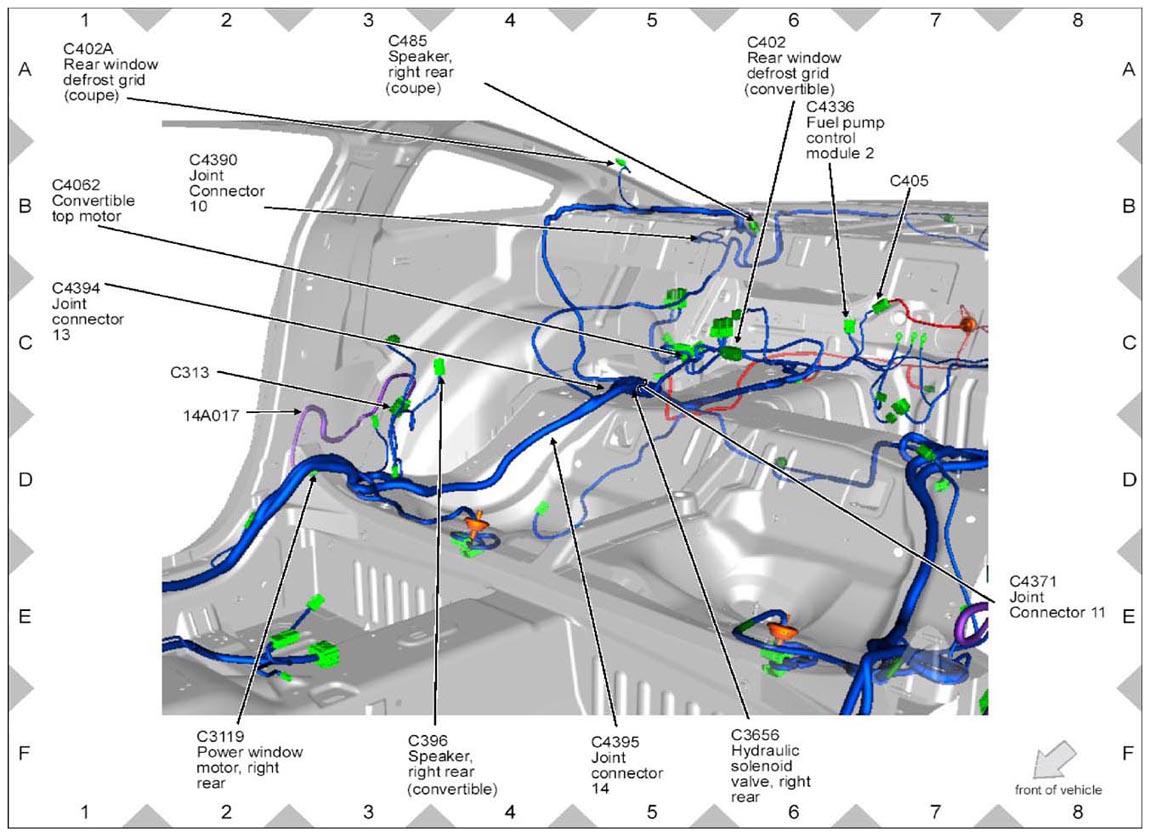

Fig 29: RH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G09284032

Courtesy of FORD MOTOR CO.

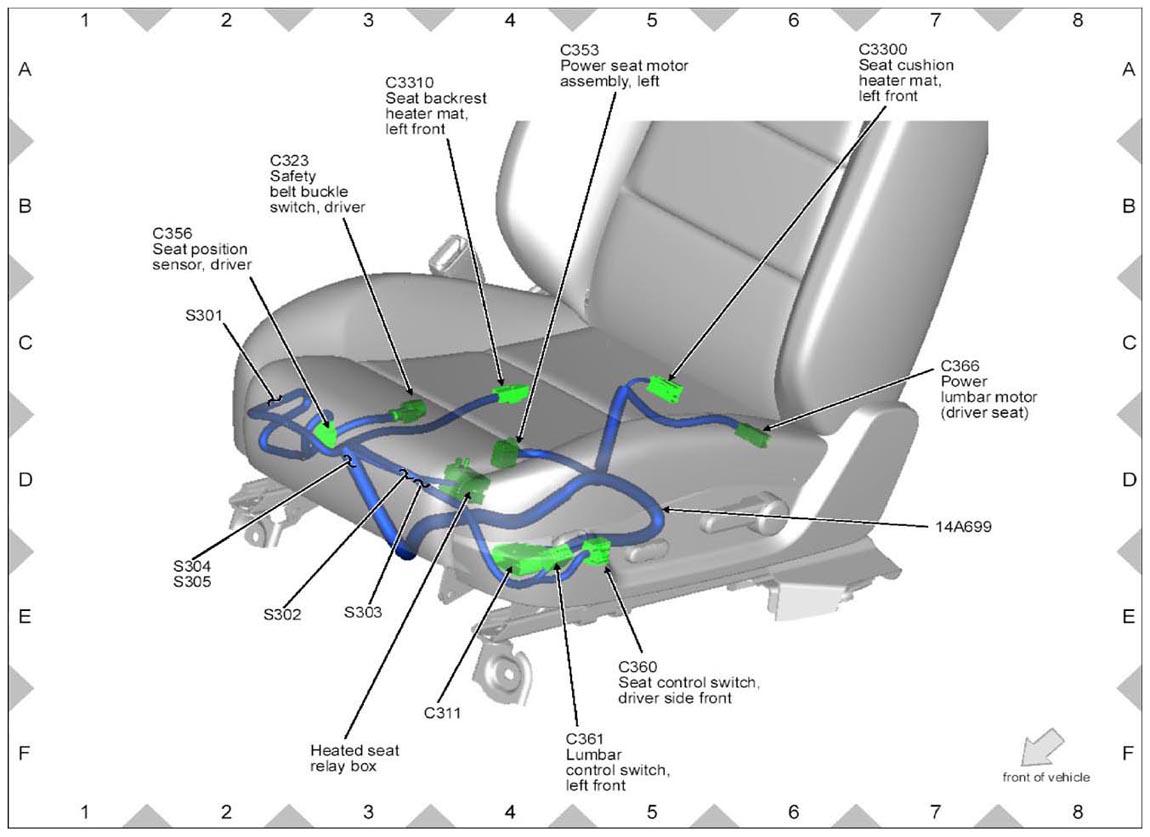

Fig 30: Driver Seat Wiring Harness Connectors Location

G09284033

Courtesy of FORD MOTOR CO.

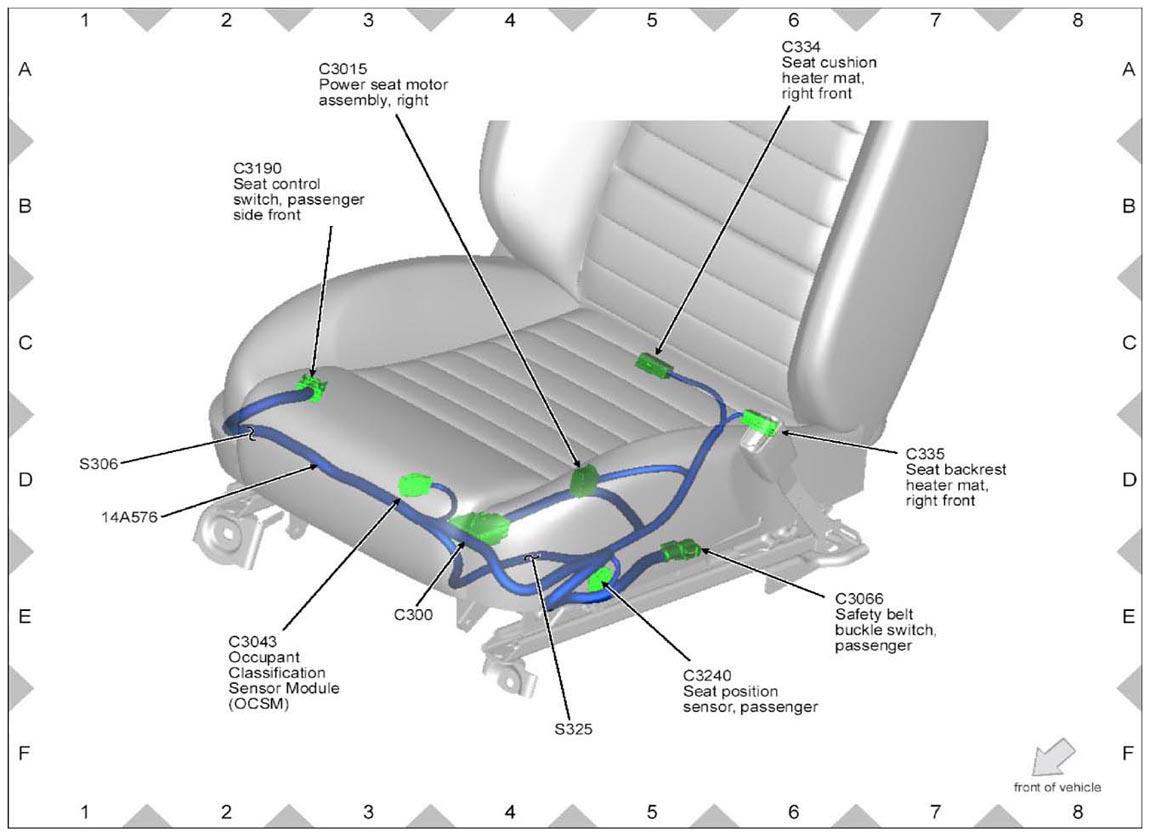

Fig 31: Passenger Seat Wiring Harness Connectors Location

G09284034

Courtesy of FORD MOTOR CO.

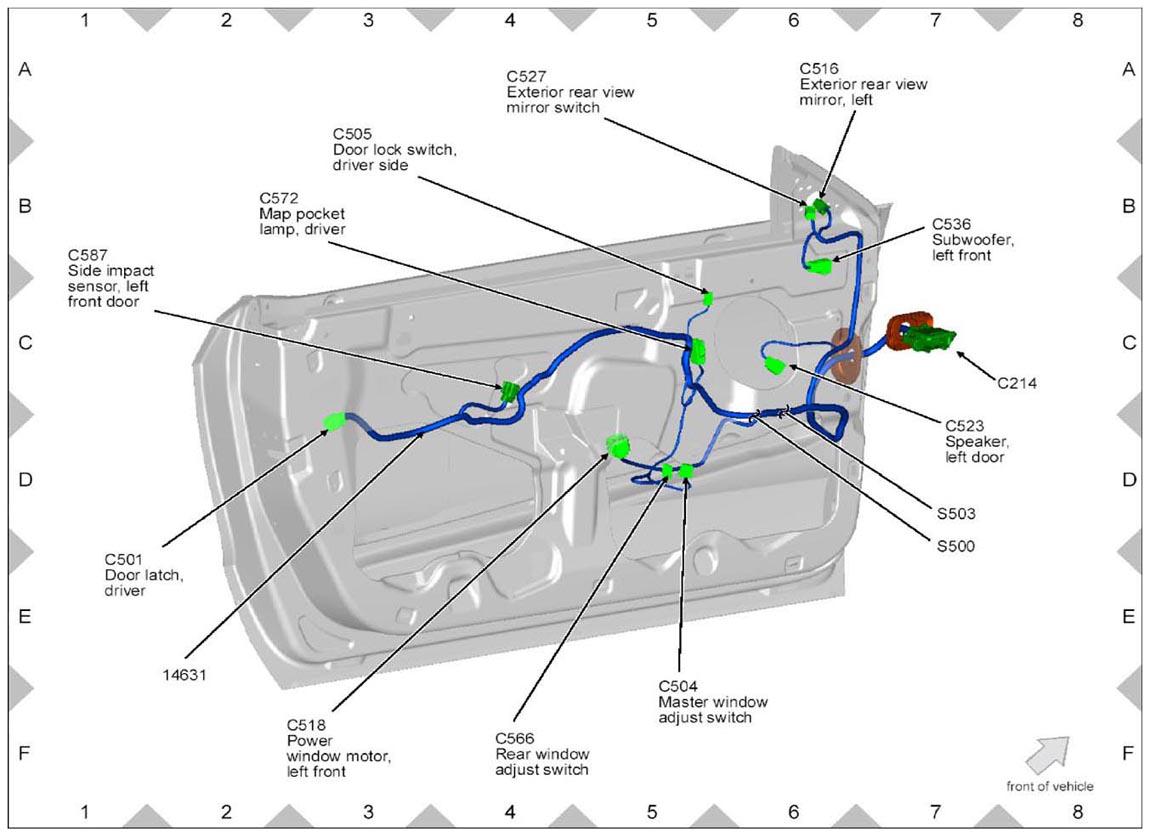

Fig 32: LH Front Door Wiring Harness Connectors Location

G09284035

Courtesy of FORD MOTOR CO.

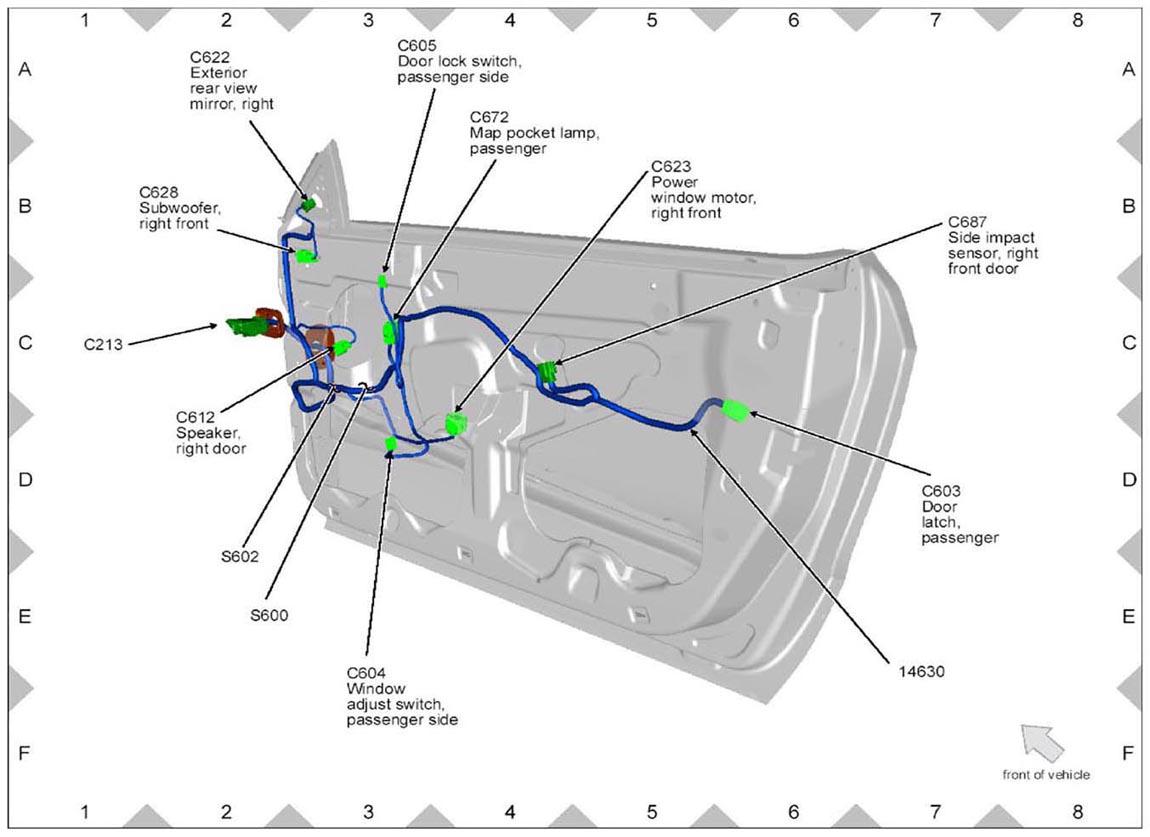

Fig 33: RH Front Door Wiring Harness Connectors Location

G09284036

Courtesy of FORD MOTOR CO.

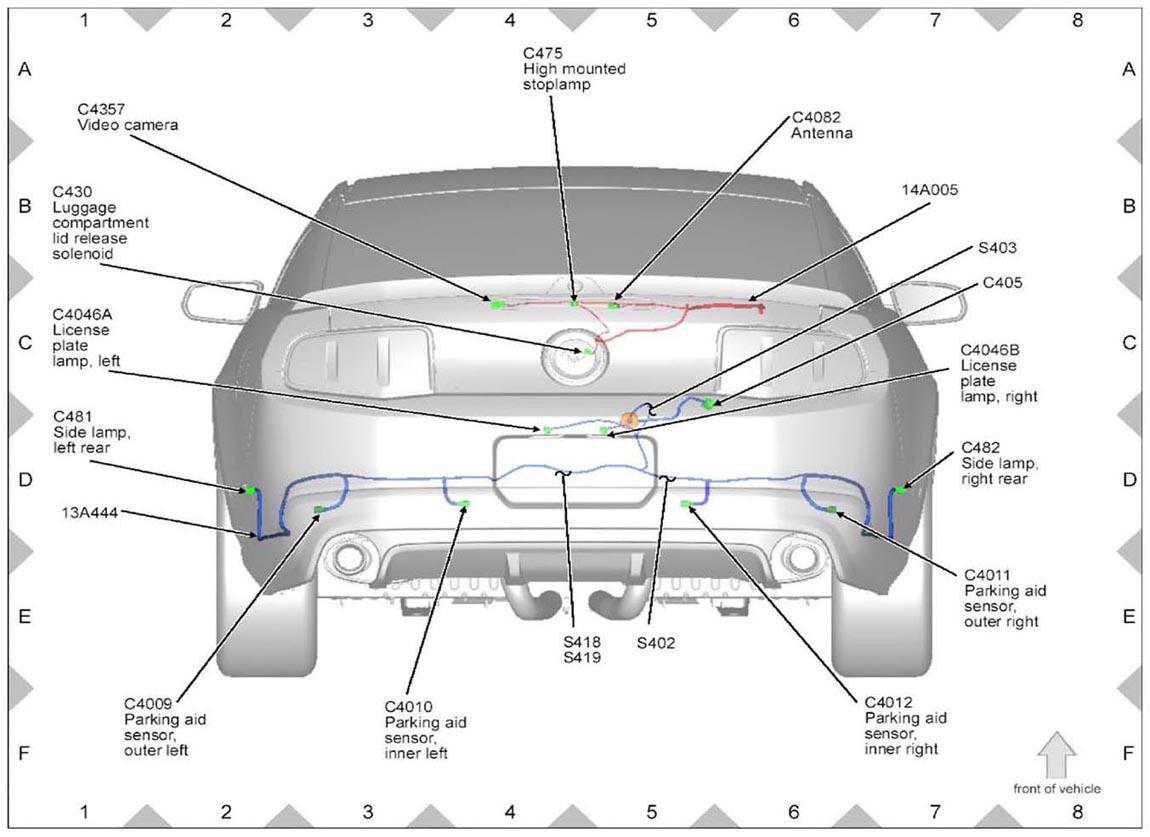

Fig 34: Rear Body Wiring Harness Connectors Location

G09284037

Courtesy of FORD MOTOR CO.

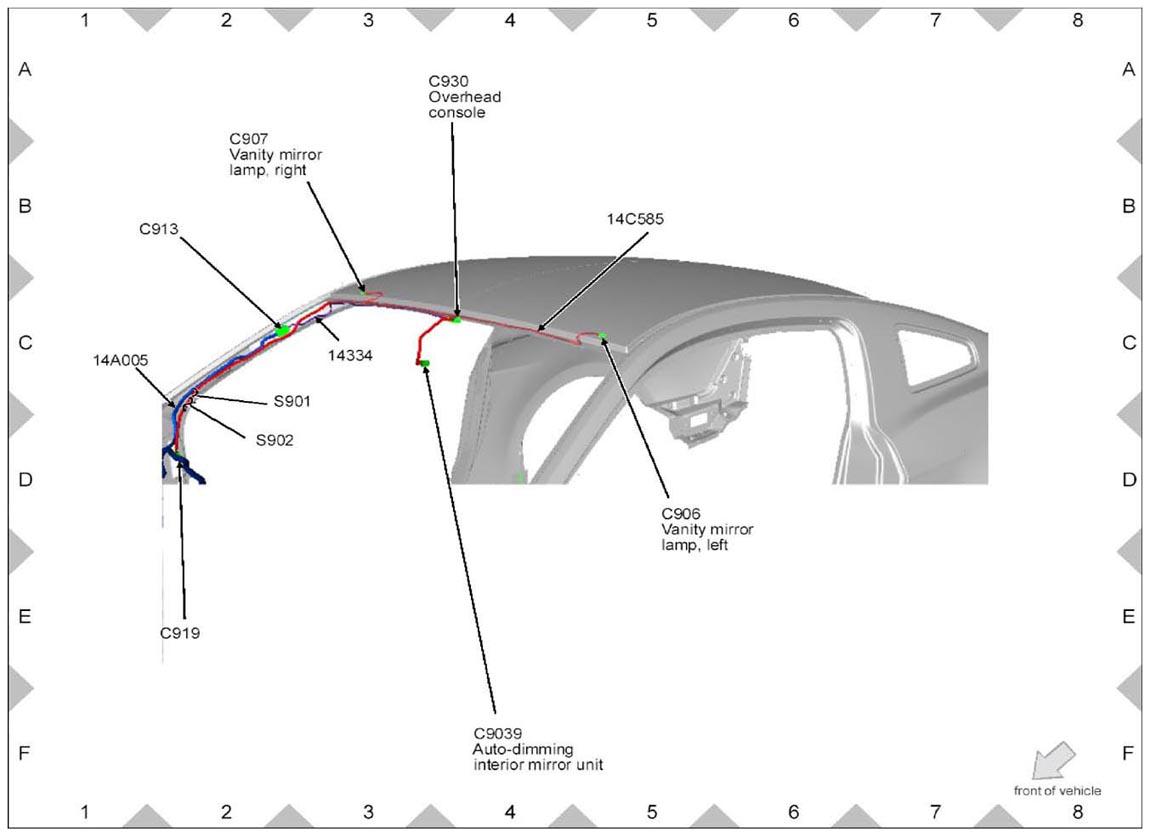

Fig 35: Overhead Console Wiring Harness Connectors Location (1 Of 2)

G09284038

Courtesy of FORD MOTOR CO.

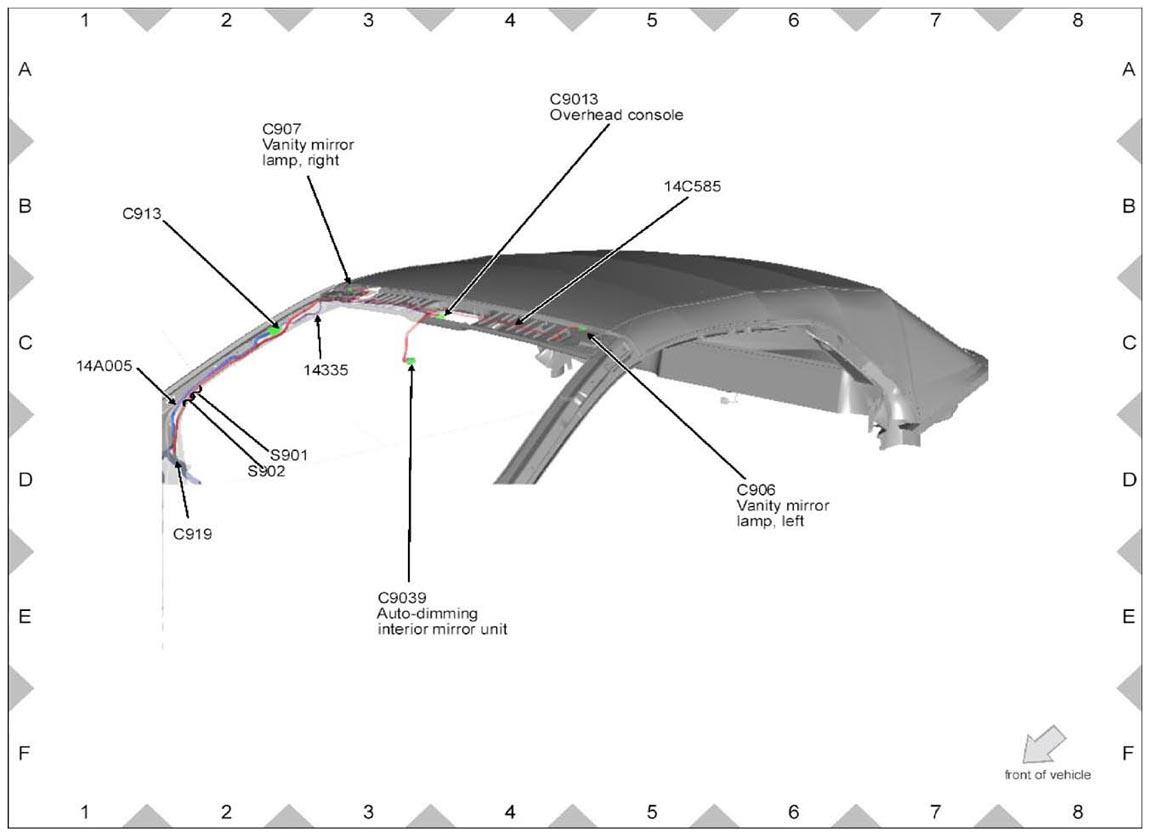

Fig 36: Overhead Console Wiring Harness Connectors Location (2 Of 2)

G09284039

Courtesy of FORD MOTOR CO.

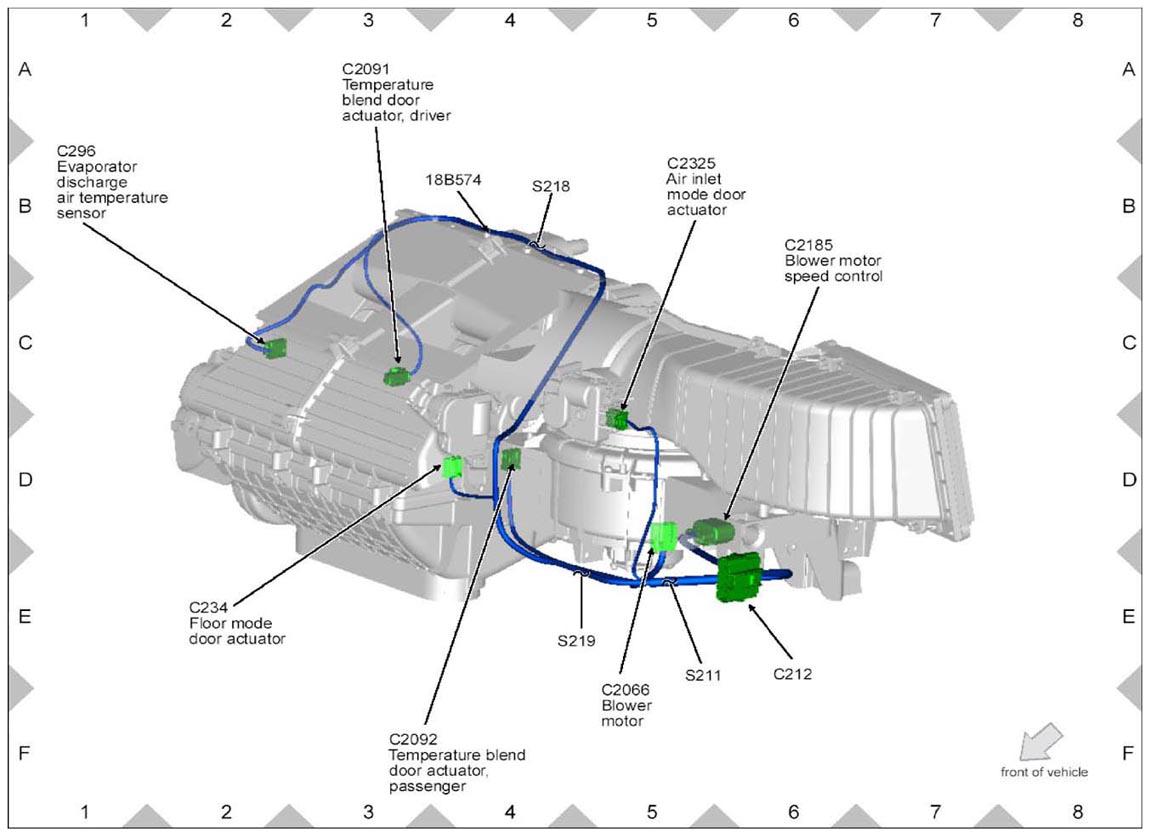

Fig 37: HVAC Wiring Harness Connectors Location

G09284040

Courtesy of FORD MOTOR CO.
