Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Do not allow grease, oil, brake fluid or other contaminants to contact the pad lining material, or damage to components may occur. Do not install contaminated pads.

NOTE: Removal steps in this procedure may contain installation details.

1.

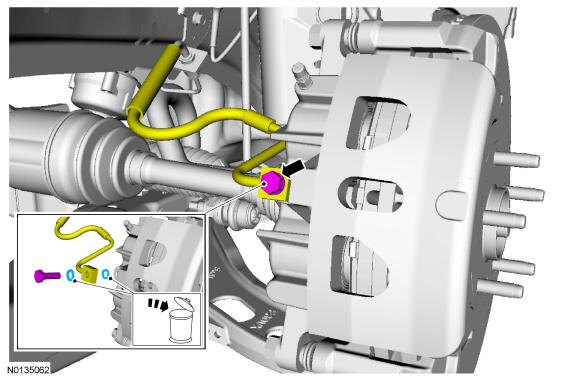

Remove the brake caliper flow bolt and the washers. Discard the washers.
- To install, tighten to 47 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

2.

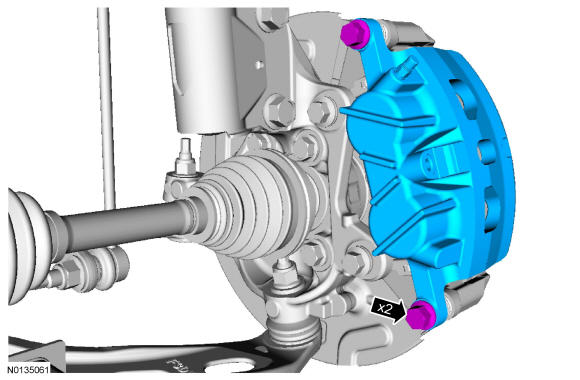

NOTE: Make sure the brake caliper guide pin bolts are clean and free of debris or a binding condition may occur.

NOTE: Make sure the caliper pin boots are correctly seated to prevent corrosion to the guide pins.
- To install, tighten to 72 Nm (53 lb-ft).

Courtesy of FORD MOTOR COMPANY
