Repair procedures: Replacement
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Be careful not to damage the hood and body.
Information
- When removing and installing the hood, an assistant is necessary.
- When removing the clips, use a clip remover.

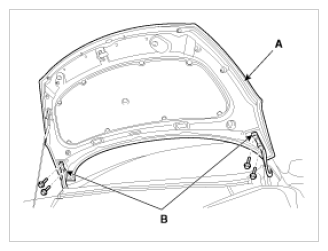

- After loosening the hood hinge (B) mounting bolts, remove the hood assembly (A).
Tightening torque:
21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)
- Install in the reverse order of removal.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the hood alignment.
