Front Seat Power Lumbar Assembly: Removal

Regular Cab

1. Remove the front seat. Refer to: Front Seat .

   Climate controlled seats

2. Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .

   SuperCab and SuperCrew seats without climate control

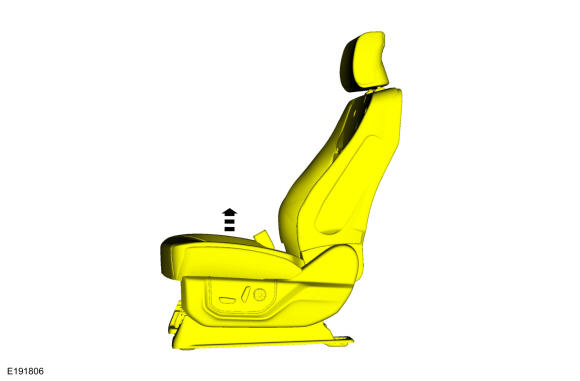

3. Move the front seat to the full upward position.

   Courtesy of FORD MOTOR COMPANY

4. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

   Seats without climate control

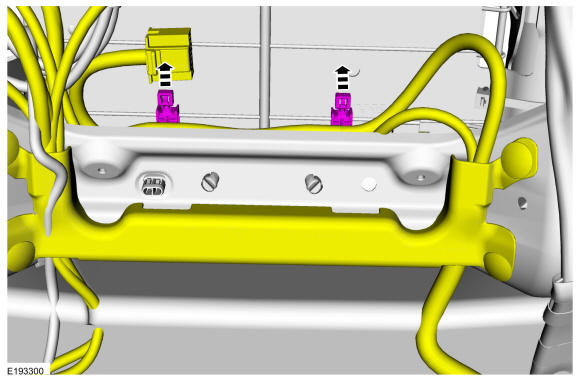

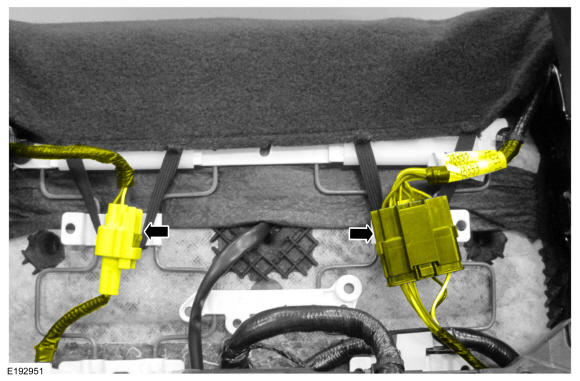

5. Detach the electrical connector retainers and position the wire harnesses aside.

   Courtesy of FORD MOTOR COMPANY

6. Detach the backrest cover straps and position the backrest cover aside.

   Courtesy of FORD MOTOR COMPANY

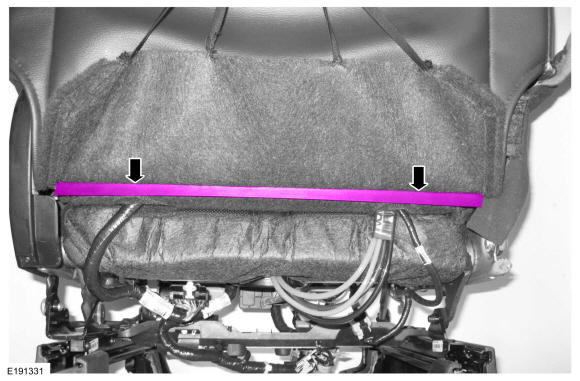

7. Detach the backrest cover lower J-clip.

   Courtesy of FORD MOTOR COMPANY

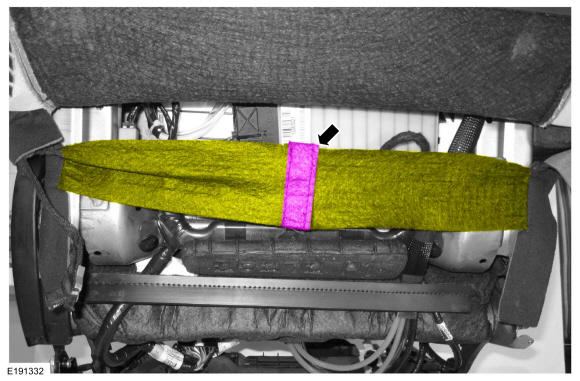

8. Detach the hook-and-loop retainer and position the backrest cover strap aside.

   Courtesy of FORD MOTOR COMPANY

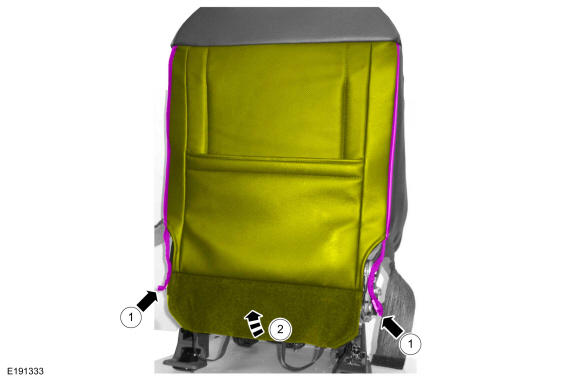

9. 1. Unzip the backrest cover zipper on each side.
   2. Position the backrest cover upward.

   Courtesy of FORD MOTOR COMPANY

   All Seats

10. Disconnect the electrical connector, release the J-hooks, and remove the power lumbar assembly.

Courtesy of FORD MOTOR COMPANY

1. Remove the SCMG or SCMH. Refer to: Driver Multi-Contour Seat Module [SCMG] .
2. Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .
3. Release the backrest wire harness from the power lumbar spring and position the wire harness aside.

   Courtesy of FORD MOTOR COMPANY

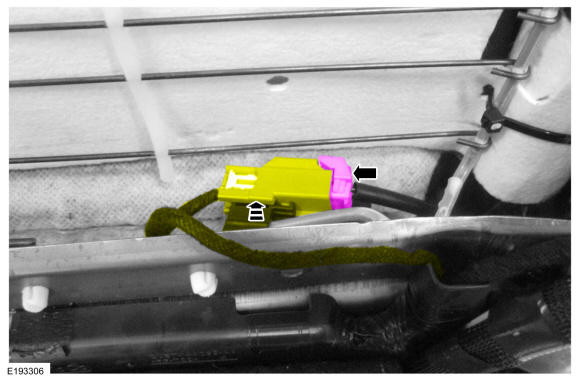

4. Disconnect the power lumbar pump electrical connector and release the connector from the power lumbar spring.

   Courtesy of FORD MOTOR COMPANY

5. Remove the seat power lumbar assembly.
   1. Release the lower retainers.
   2. Position the cushion foam to access the seat power lumbar assembly pin-type retainer.
   3. Remove the pin-type retainer.
   4. Release the upper J-hook.

Courtesy of FORD MOTOR COMPANY
