Selector Lever Cable: Installation

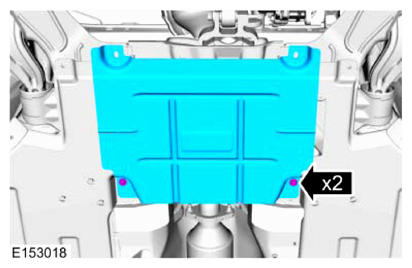

Torque: 80 lb.in (9 Nm)

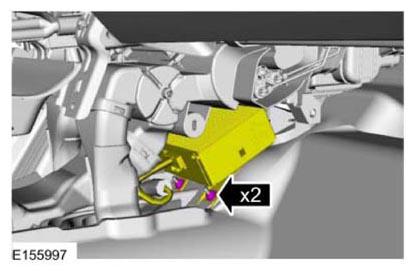

Torque: 80 lb.in (9 Nm)

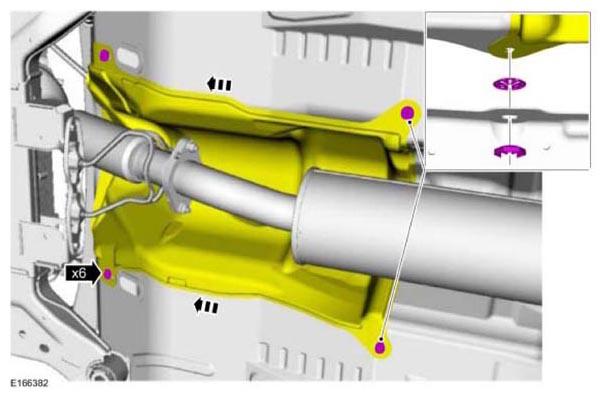

On both sides

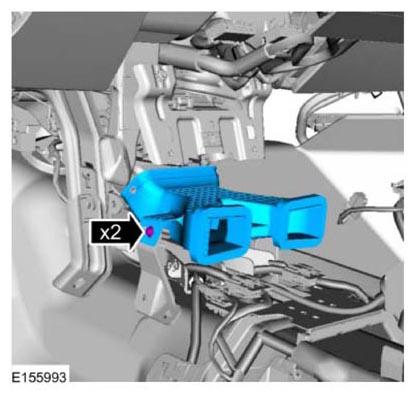

Torque: 62 lb.in (7 Nm)
Install the floor console.
Refer to: FLOOR CONSOLE .
If equipped.

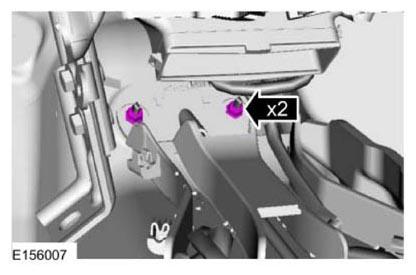

Torque: 62 lb.in (7 Nm)

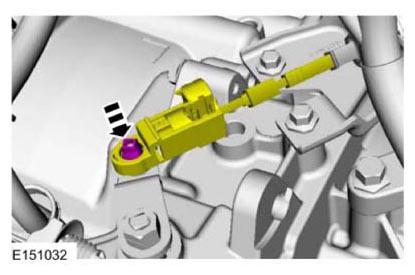

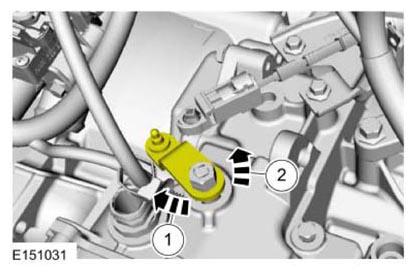

1. Rotate the manual control lever clockwise until it stops.
2. Rotate the manual control lever counterclockwise 1 detent.

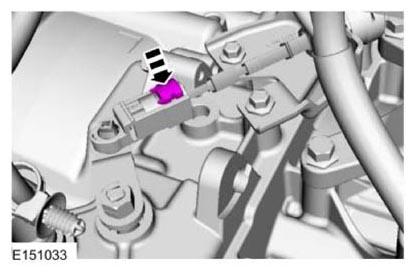

1. Move the slide to the left.
2. While holding the slide, position the adjuster lock upward.
1.5L EcoBoost Refer to: AIR CLEANER .
1.6L EcoBoost Refer to: AIR CLEANER .

2.0L EcoBoost Refer to: AIR CLEANER .

2.5L Duratec Refer to: AIR CLEANER .

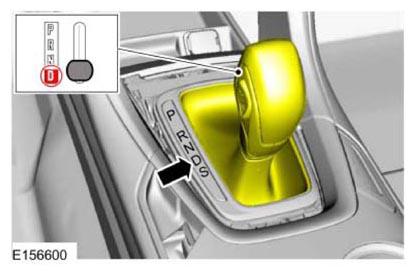

Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R .
