Front Halfshaft: Assembly
WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
- 1.

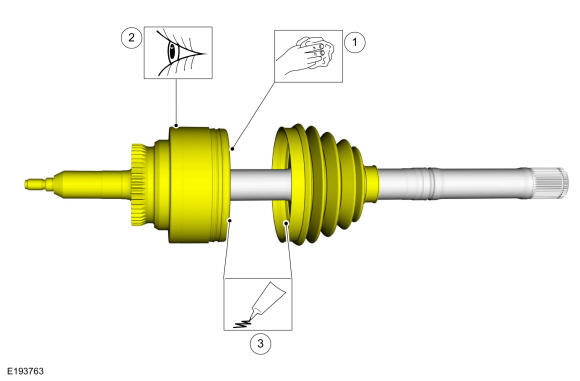

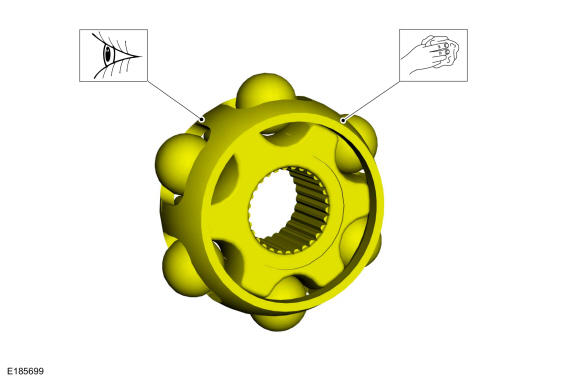

Clean and inspect the CV joint cage.
- 2.
Inspect the outer CV joint housing for damage.
- 3.
Install The grease sachet evenly in the CV joint boot and housing.
- 1.
- 2.

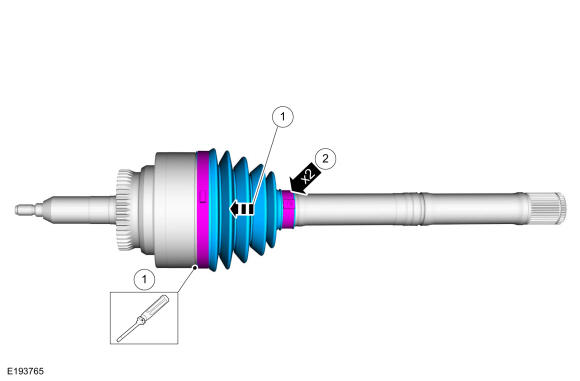

Install the CV joint housing.- 1.NOTE: When installing the CV joint housing, insert a small flat blade screwdriver under the CV joint boot seat to allow air to escape.
Using a flat blade screw driver to allow air to escape, install the CV joint housing. Use the General Equipment: Flat Headed Screw Driver
- 2.
Using boot clamp pliers, install the new CV joint boot clamps. Use the General Equipment: Boot Clamp Pliers
- 1.
- 4.

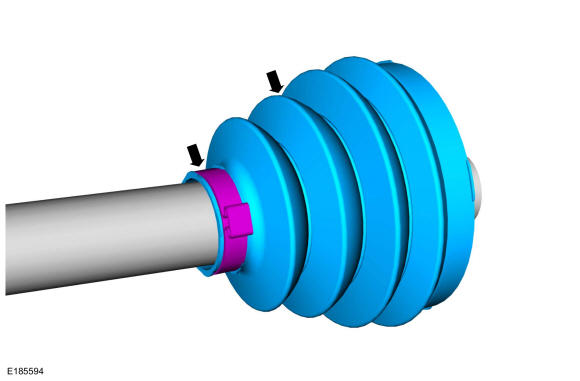

Using boot clamp pliers, install the new CV joint boot and the new small CV joint boot clamp. Use the General Equipment: Boot Clamp Pliers

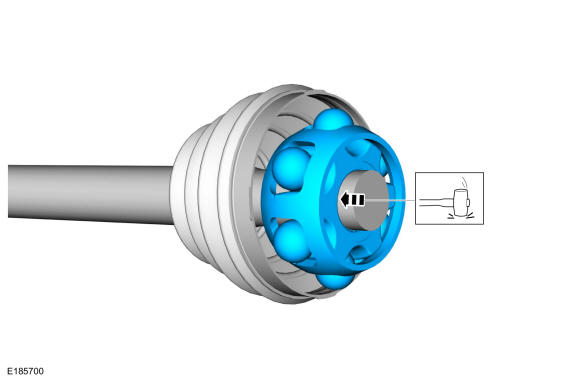

- 5.NOTE: The CV joint cage is a snug fit and may need to tapped on with a soft face mallet.
Using a soft face mallet, install the CV joint cage. Use the General Equipment: Rubber Mallet
- 7.

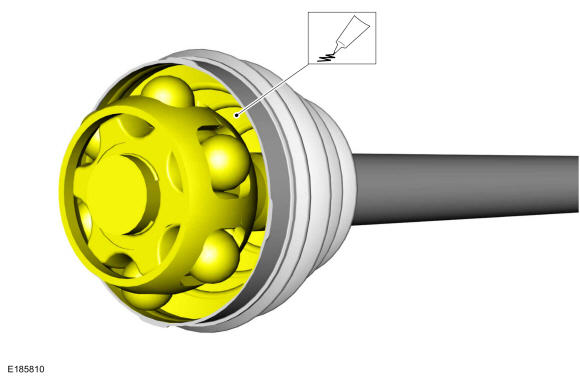

Install the grease sachet evenly in the CV joint boot and housing.Material: Constant Velocity Joint Grease (High Temperature) / XG-5 (WSS-M1C258-A1)
- 8.NOTE: When installing the CV joint housing, insert a small flat blade screwdriver under the CV joint boot seat to allow air to escape.

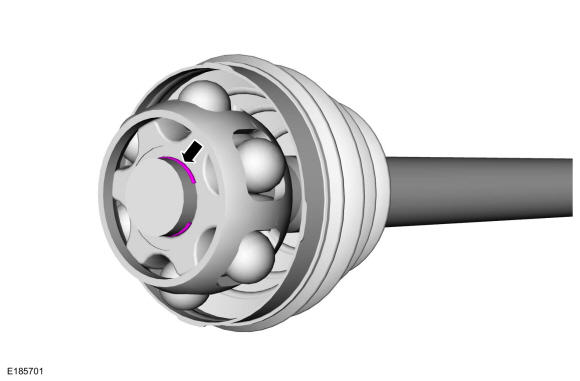

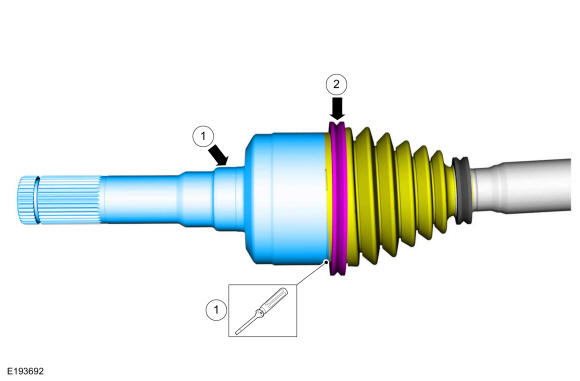

Install the inner CV housing and the new inner CV housing retaining ring.
- 1.
Using a flat blade screw driver to allow air to escape, install the CV joint housing. Use the General Equipment: Flat Headed Screw Driver
- 2.
Using boot clamp pliers, install the new large CV joint boot clamp. Use the General Equipment: Boot Clamp Pliers
- 1.
- 9.
Install the halfshaft. Refer to: Halfshaft .
