Front Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Driver seat shown, passenger seat similar.

All seats

1.

Remove the front seat. Refer to: Front Seat .

Manual seat with manual lumbar

2.

Adjust the manual lumbar to the fully relaxed position.

GFD43005

Courtesy of FORD MOTOR COMPANY

3.
1. 1.

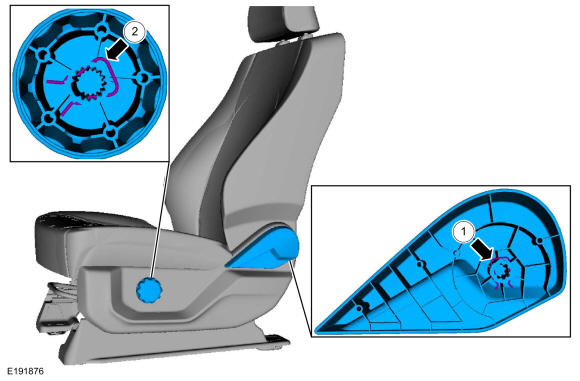

  Remove the clip and the recline handle.
1. 2.

  Remove the clip and the lumbar handle.

GFD43006

Courtesy of FORD MOTOR COMPANY

4.

Remove the side shield screws.

GFD43007

Courtesy of FORD MOTOR COMPANY

5.

Remove the side shield.
1. 1.

  Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
1. 2.

  From underneath, squeeze the retainers together and pull out on the side shield.
1. 3.

  Slide the side shield forward.

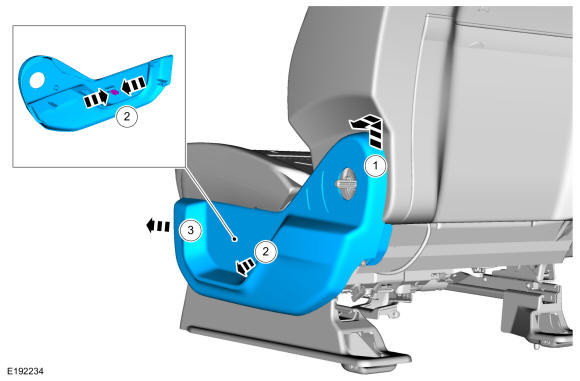

GFD43008

Courtesy of FORD MOTOR COMPANY

6.

Position the manual lumbar assembly cable away from the seat track.
- Disconnect the cable from the manual lumbar actuator.
- Detach the cable retainers from the seat track.

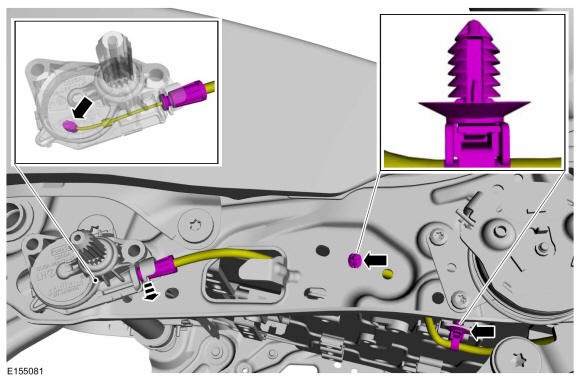

GFD43009

Courtesy of FORD MOTOR COMPANY

All seats

7.

Remove the front head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .

8.

Remove the side airbag. Refer to: Side Airbag .

9.

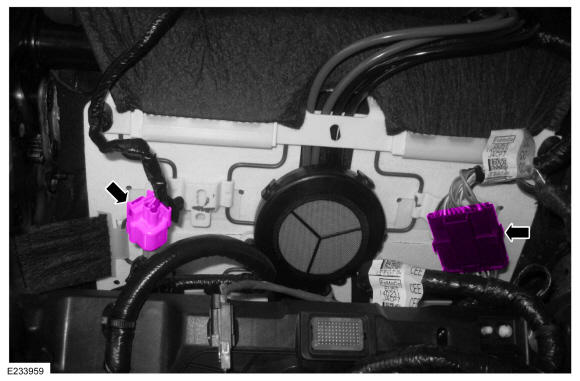

Disconnect the electrical connectors.

GFD43010

Courtesy of FORD MOTOR COMPANY

10.

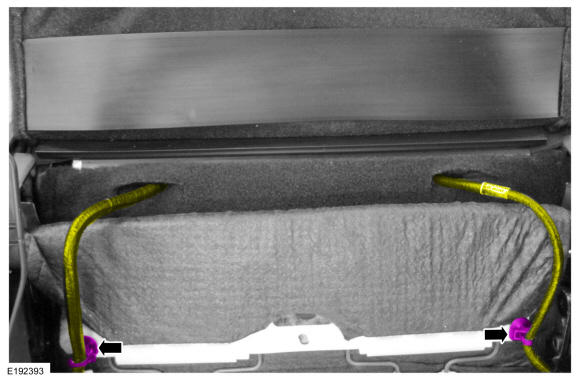

Release the wire harness retainer(s) and position the wire harness(es) aside.

GFD43011

Courtesy of FORD MOTOR COMPANY

11.

NOTE: Power seat with power lumbar shown, manual lumbar similar.

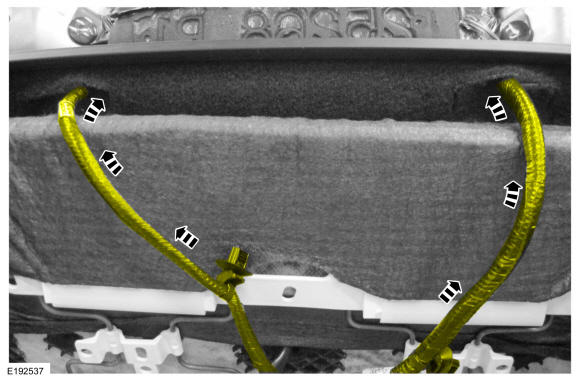

Feed the backrest wire harness(es) out through the backrest cover opening(s).
- If equipped. Feed the manual lumbar cable out through the backrest cover opening.

GFD43012

Courtesy of FORD MOTOR COMPANY

12.

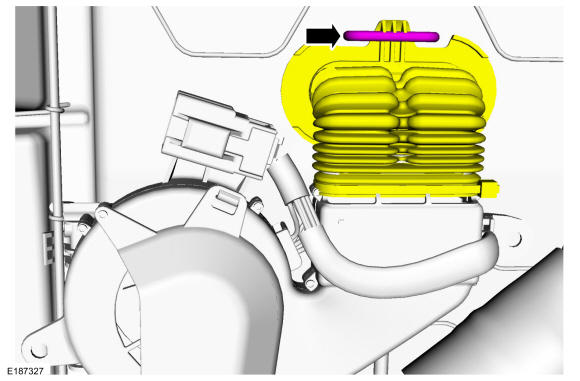

- If equipped. Disconnect the backrest blower motor manifold from the seat cushion.

GFD42998

Courtesy of FORD MOTOR COMPANY

13.

If equipped.

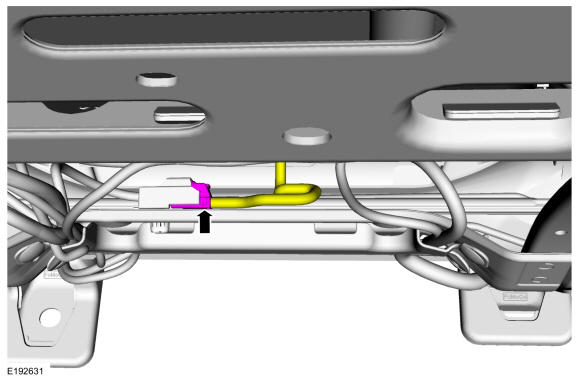

- Disconnect the backrest heater mat electrical connector.

GFD43013

Courtesy of FORD MOTOR COMPANY

14.

If equipped.Position the blower motor snorkel aside.

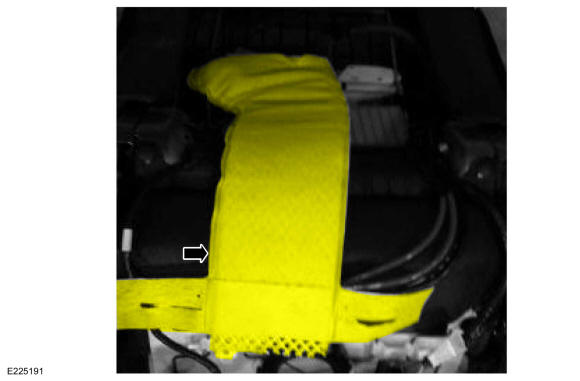

GFD43014

Courtesy of FORD MOTOR COMPANY

15.

If equipped.
- Detach the J-clip.

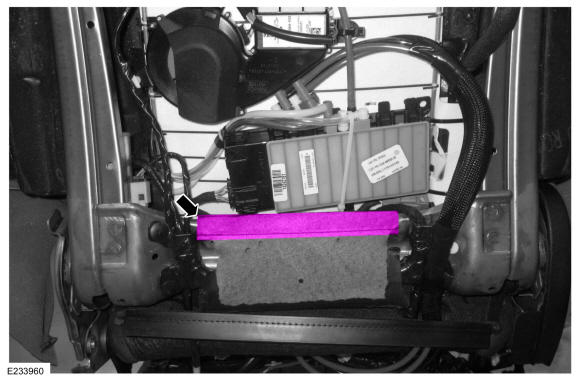

GFD43015

Courtesy of FORD MOTOR COMPANY

Multi-contour seat

16.

Detach the multi-contour seat cushion hose retainer.

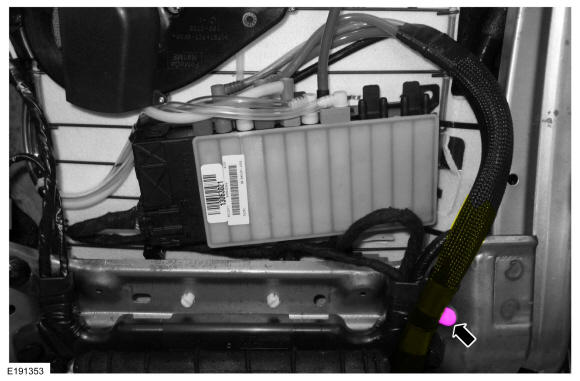

GFD43016

Courtesy of FORD MOTOR COMPANY

17.

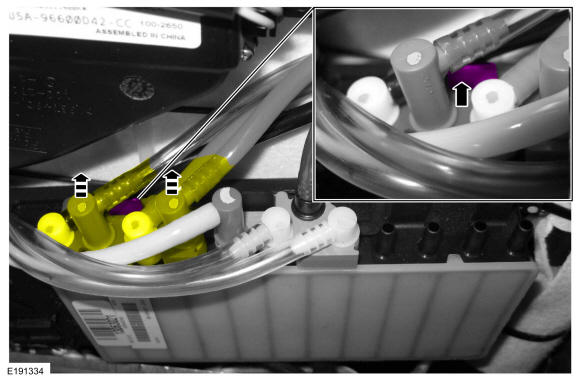

Release the locking tab and disconnect the hose coupling assembly (orange) from the SCMG.

GFD43017

Courtesy of FORD MOTOR COMPANY

18.

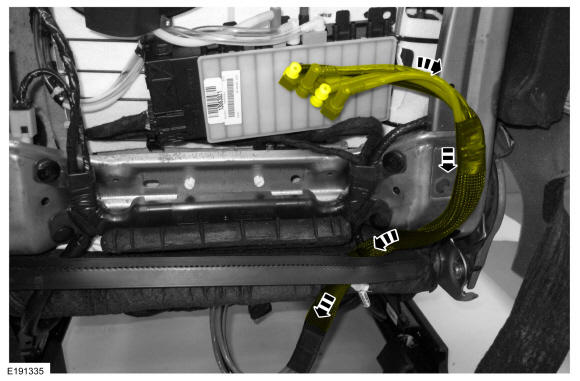

Feed the multi-contour seat hose assembly out through the backrest cover opening.

GFD43018

Courtesy of FORD MOTOR COMPANY

All seats

19.

If equipped.
- Detach the backrest cover J-clips from the lumbar support wire and position the backrest cover up.

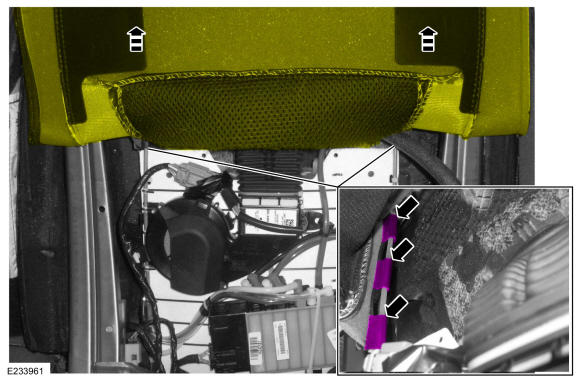

GFD43019

Courtesy of FORD MOTOR COMPANY

20.

Remove the seat backrest cover and foam as an assembly.

GFD43020

Courtesy of FORD MOTOR COMPANY

21.

NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam pad.

NOTE: Base front seat shown, all others similar.

NOTE: This step is necessary only when installing a new component.

Remove the seat backrest cover.
1. 1.

  Invert the seat backrest cover.
1. 2.

  Release the hook-and-arrows.

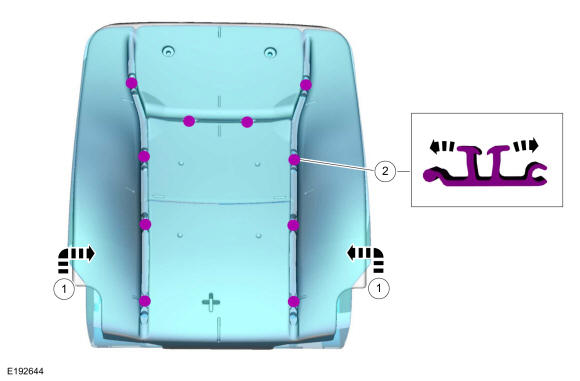

GFD43021

Courtesy of FORD MOTOR COMPANY
