Installation - 2013 & 2014

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
NOTE: Follow the appropriate procedure below according to reinstallation, replacing with a new automatic transaxle or replacing with a remanufactured automatic transaxle.
In case of reinstallation
1. Replace the oil seal with a new one when ATF leak occurred because of differential oil seal damage.
  Information

  When installing the new oil seal, use the special service tool (SST No.: 09452-26100, 09231-H1100).
2. Check the ATF level after refilling the automatic transaxle with fluid. (Refer to "FLUID ")
3. Clear the diagnostic trouble codes (DTC) using the GDS.
  Information

  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
In case of replacing with a new automatic transaxle
NOTE: New automatic transaxle is already filled with specified quantity ATF.
For that reason, it does not necessary to refill and check the ATF but the remaining ATF inside of ATF cooler have to be removed.
1. Set the air blow gun in front of the ATF cooler hose (A).
2. Remove the remaining ATF by blowing air into ATF cooler hose (A).
3. Install the ATF cooler hose (A) and (B).

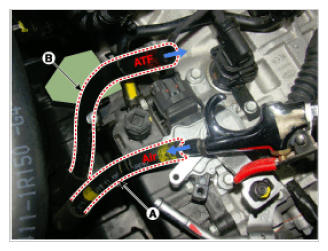

  Fig 1: Identifying ATF Cooler Hose
  Courtesy of HYUNDAI MOTOR AMERICA
4. Clear the diagnostic trouble codes (DTC) using the GDS.
  Information

  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
5. Reset the automatic transaxle adaptive values using the GDS.

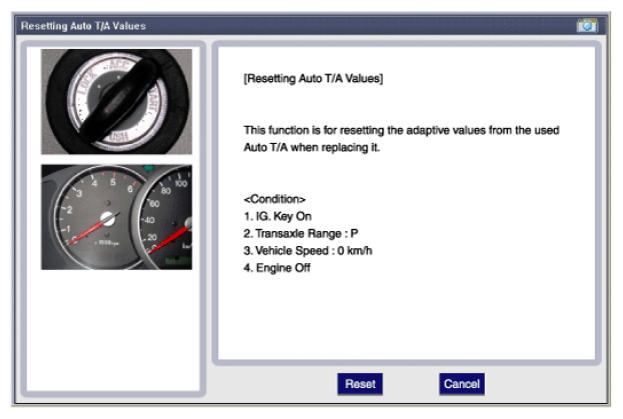

  Fig 2: Display - Diagnostic Trouble Codes Screen
  Courtesy of HYUNDAI MOTOR AMERICA
6. Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
In case of replacing with a remanufactured automatic transaxle
NOTE: Remanufactured automatic transaxle is not filled with specified quantity ATF.
For that reason, it is necessary to refill and check the ATF.
1. Check the ATF level after refilling the automatic transaxle with fluid. (Refer to "FLUID ")
2. Clear the diagnostic trouble codes (DTC) using the GDS.
  Information

  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
3. Reset the automatic transaxle adaptive values using the GDS.

  Fig 3: Display - Automatic Transaxle Adaptive Values Screen
  Courtesy of HYUNDAI MOTOR AMERICA
4. Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
