Auto-Start-Stop System

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

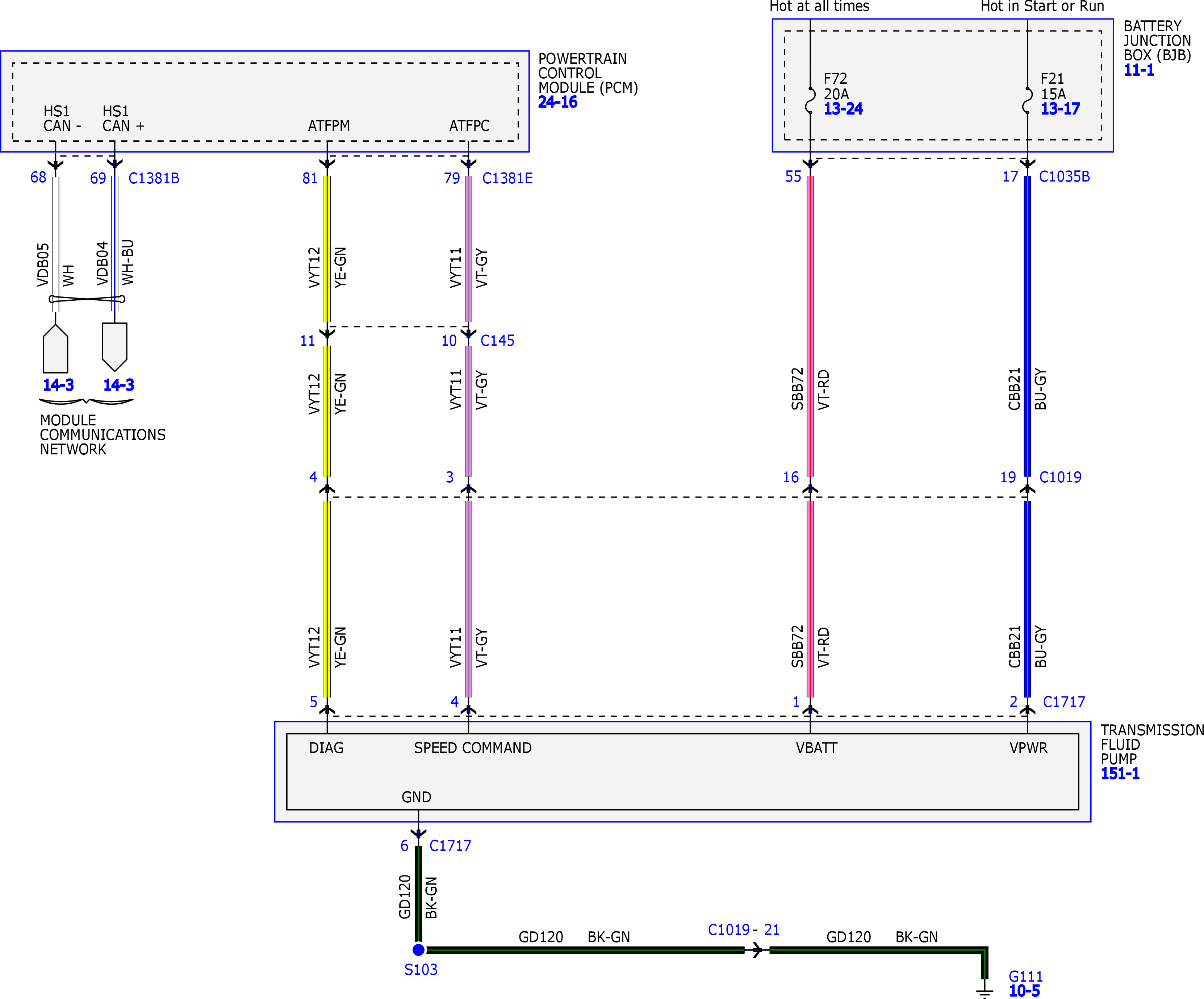

Fig 1: Auto-Start-Stop System Wiring Diagrams (1 Of 4)

Courtesy of FORD MOTOR COMPANY

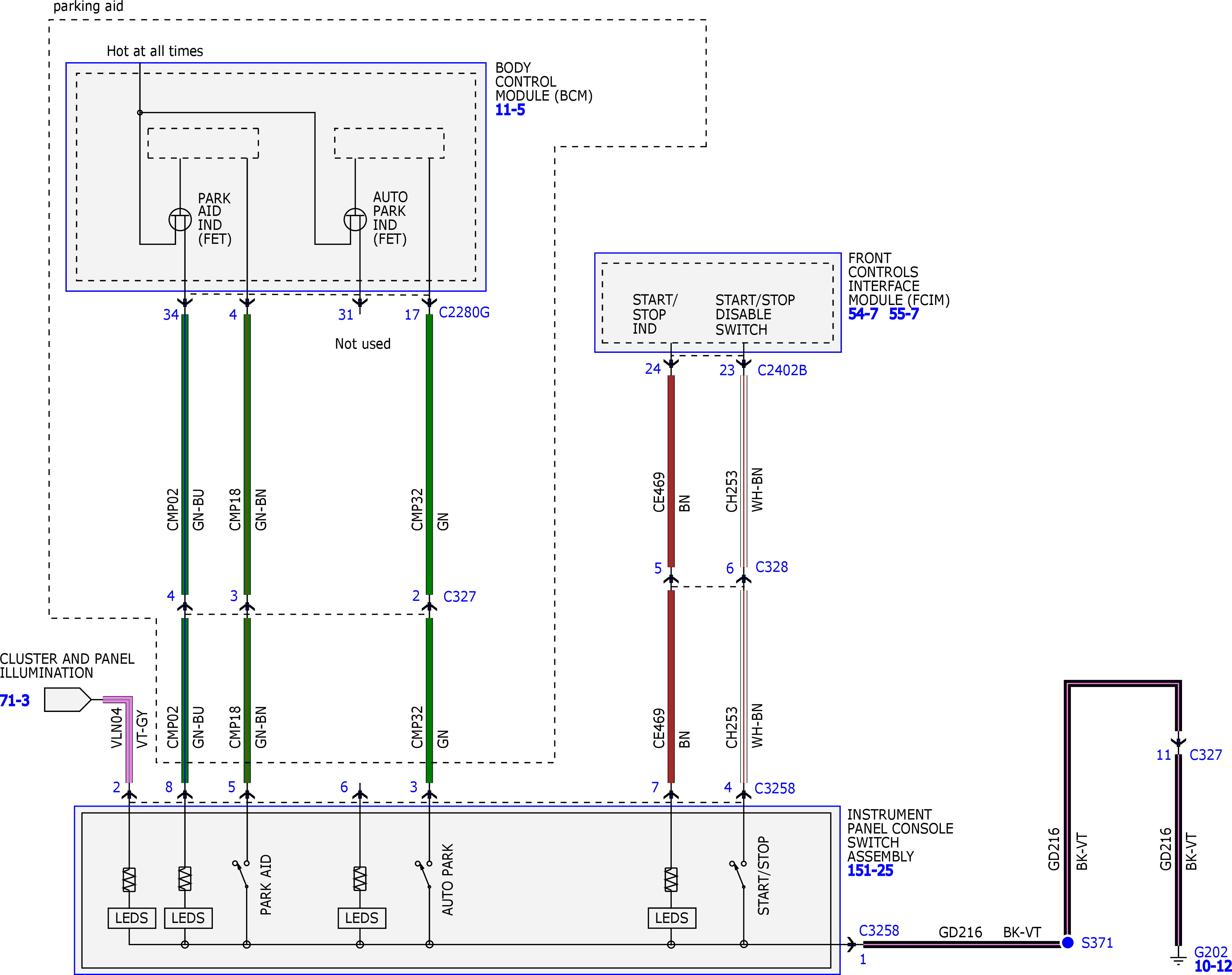

Fig 2: Auto-Start-Stop System Wiring Diagrams (2 Of 4)

Courtesy of FORD MOTOR COMPANY

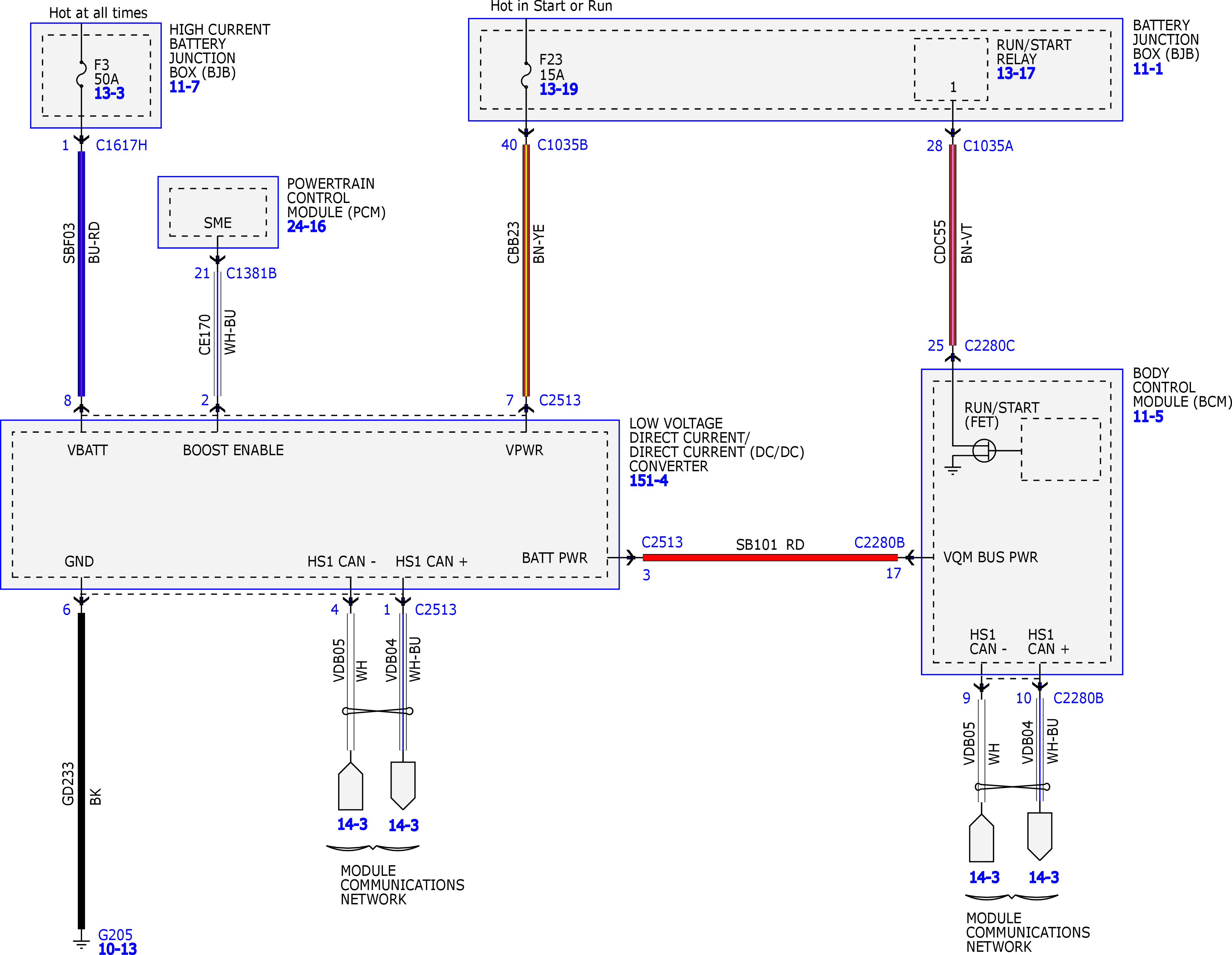

Fig 3: Auto-Start-Stop System Wiring Diagrams (3 Of 4)

Courtesy of FORD MOTOR COMPANY

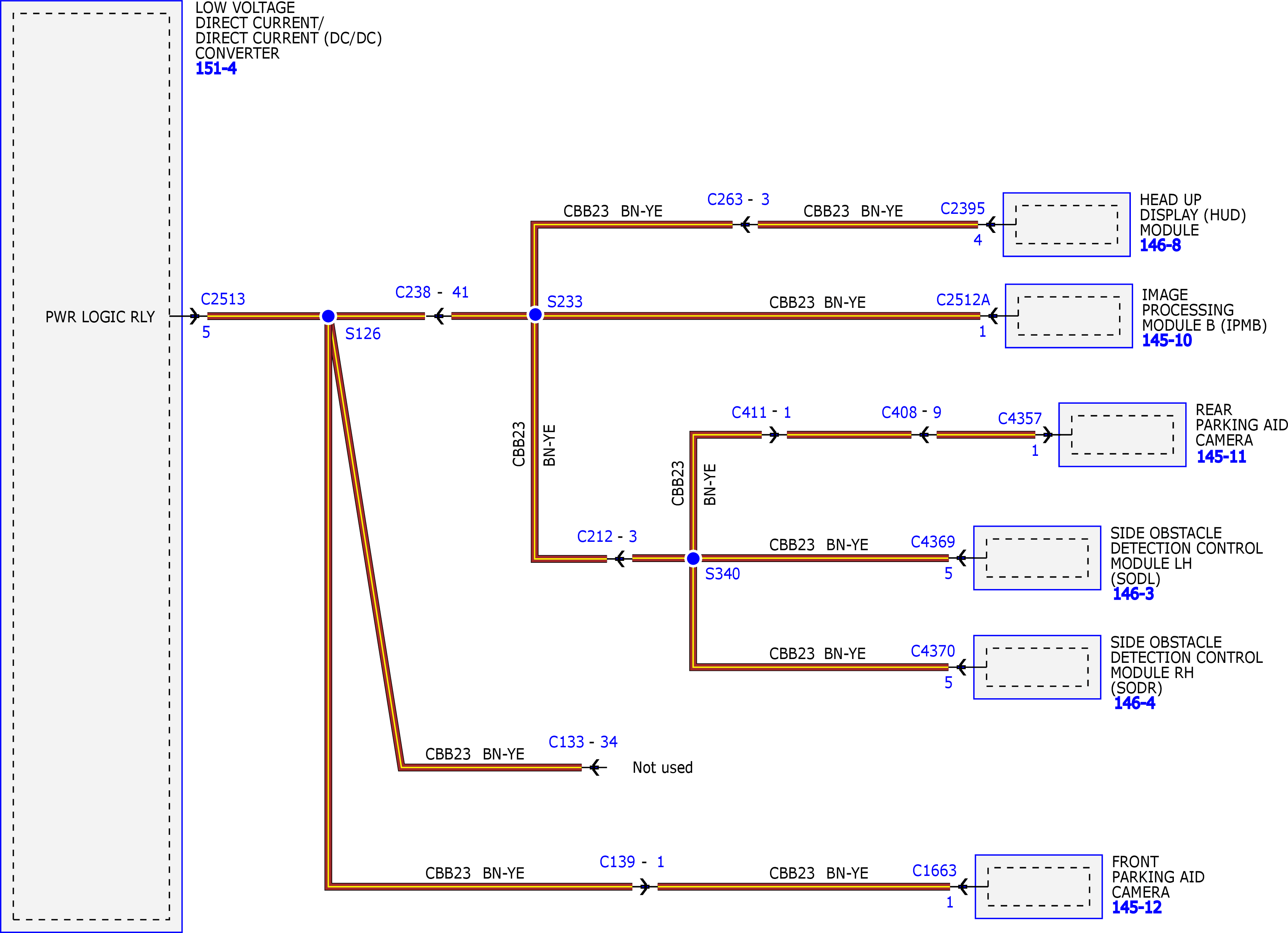

Fig 4: Auto-Start-Stop System Wiring Diagrams (4 Of 4)

Courtesy of FORD MOTOR COMPANY
