Clutch Housing: Disassembly

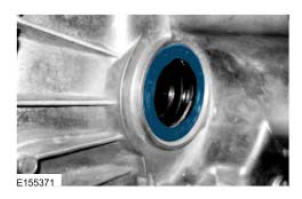

  1. G08064322

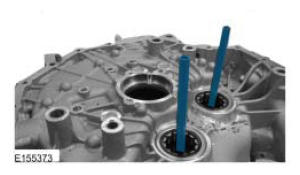

  2. NOTE: The lube feed tubes will need to be broken to remove the bearings.
    G08064324

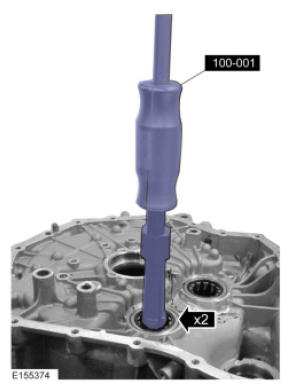

  3. NOTE: If the clutch housing output shaft bearing is broken, use the next size larger special tool.

    Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer  .

    G08064325
  4. Use Special Service Tool: 205-153 (T80T-4000-W) Handle  ., 307-678 Remover, Bearing Cone  .
    G08064326
