Clutch Housing: Assembly

  1. NOTE: If new differential bearings, differential, clutch housing or transmission case are installed refer to the DIFFERENTIAL SHIM SELECTION CHART .

    Refer to: TRANSMISSION .

    G08064327

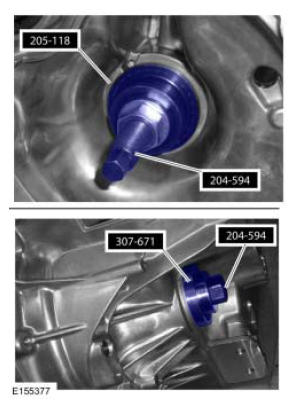

  2. Use Special Service Tool: 205-118 (T77F-4222-A) Differential bearing cap installer  ., 307-671 Installer, Axle Seal  ., 204-594 Forcing screw  .
    G08064328
  3. G08064329
  4. Use Special Service Tool: 307-679 Installer, Countershaft Needle Bearing  .
    G08064330
  5. Use Special Service Tool: 307-671 Installer, Axle Seal  ., 205-153 (T80T-4000-W) Handle  .
    G08064331
