Transmission Control Module (TCM): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Download the module information to the diagnostic tool using the Programmable Modules Installation routine.
  2. Refer to: BATTERY TRAY .

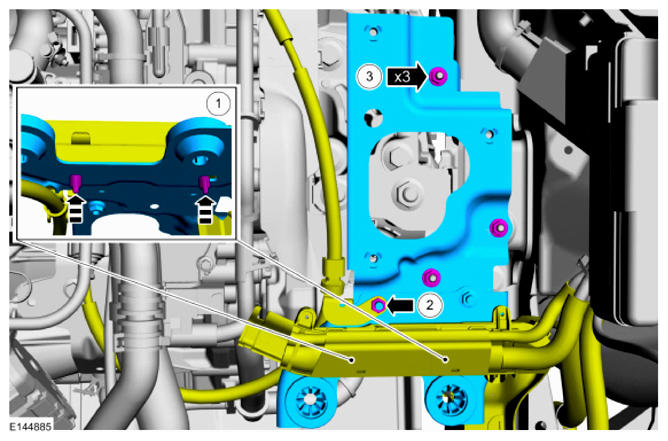

  3. G09551321
  4. G09551441

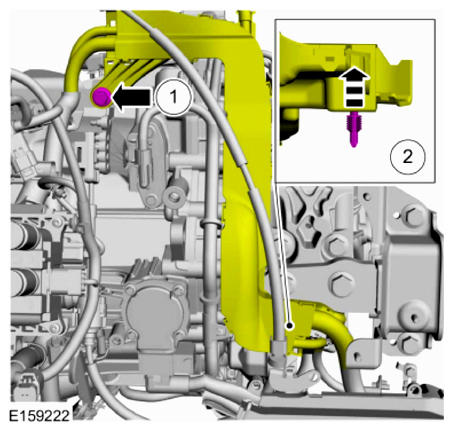

  5. G09551442
  6. NOTE: Make sure that the terminals or pins/sockets of the transmission control module (TCM) and the TCM electrical connector are not bent or damaged.
    G09551443

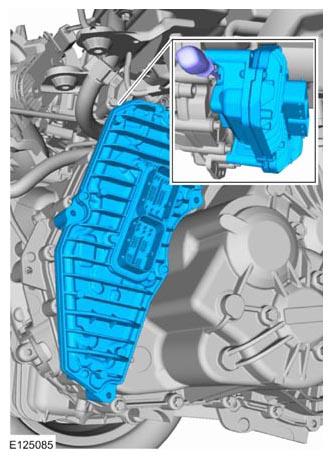

  7. G07979737
  8. G08064118
  9. NOTE: Make sure that the mating faces are clean and free of corrosion and foreign material.
    G08064119
