Transmission Fluid Level Check: Check

1. Refer to: JACKING AND LIFTING - OVERVIEW .

   Refer to: ENGINE UNDERSHIELD .

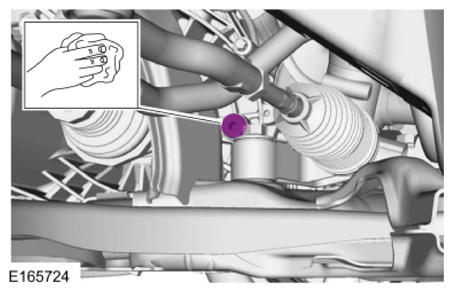

2. Use the General Equipment: Ball End Hex Bit

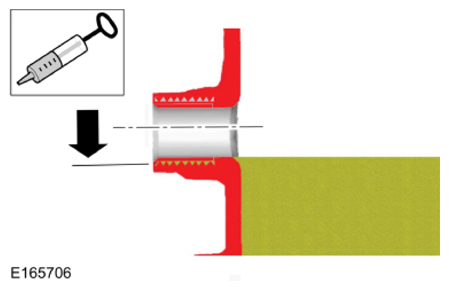

3. NOTE: Do not overfill the transmission. This causes transmission fluid to be forced out of the case.

   Add transmission fluid until the oil runs out of the fill port in a continuous stream. The transmission is full when the oil flow from the fill port has slowed to a broken stream or dripping.

   Use the General Equipment: Fluid Suction Gun

   Material  : Motorcraft® Dual Clutch Transmission Fluid/XT-11-QDC (WSS-M2C200-D2)

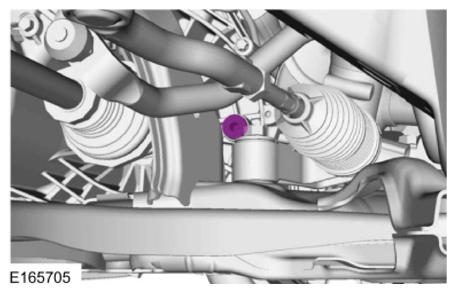

4. NOTE: The O-ring seal is to be reused unless damaged.

   Use the General Equipment: Ball End Hex Bit

   Torque  : 32 lb.ft (43 Nm)

Refer to: ENGINE UNDERSHIELD .
