Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.

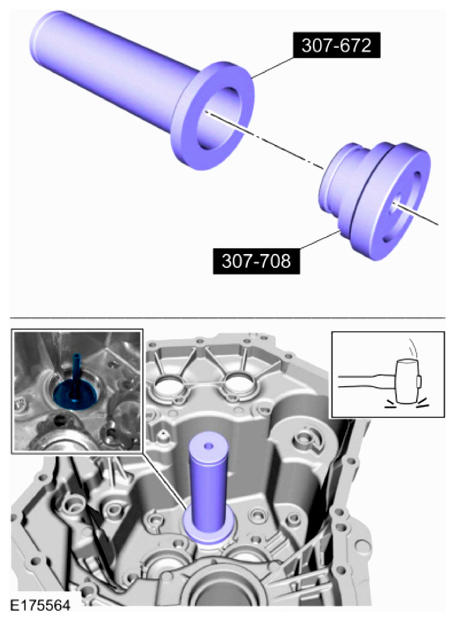

  1. NOTE: This step only applies to transmissions built after April-2013.

    Use Special Service Tool: 307-672 Installer, Input Guide and Seal  ., 307-708 Installer, Lube Tube  .

    G09551550

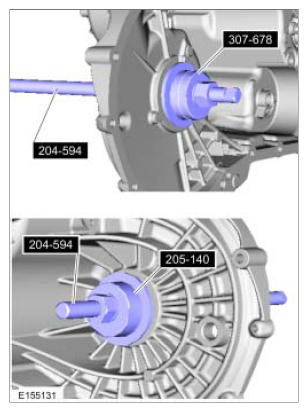

  2. Use Special Service Tool: 204-594 Forcing screw  ., 307-678 Remover, Bearing Cone  ., 205-140 (T80T-4000-F) Installer, Drive Pinion Bearing Cup  .
    G08064301
  3. Use Special Service Tool: 205-153 (T80T-4000-W) Handle  ., 307-671 Installer, Axle Seal  .
    G08064302

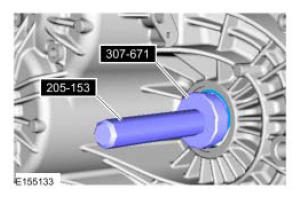

  4. Use Special Service Tool: 205-153 (T80T-4000-W) Handle  ., 307-671 Installer, Axle Seal  .
    G08064303
