Electronic Engine Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

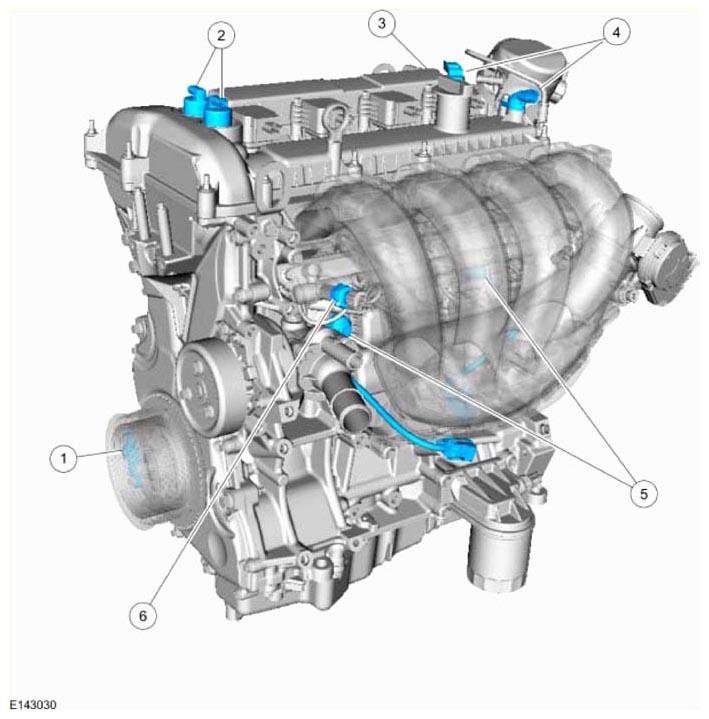

| Item |
Description |
| 1 |
6C315
Comments:
CKP
sensor |
| 2 |
6M280
Comments:
VCT
oil control solenoid |
| 3 |
12A648
Comments:
ECT
sensor |
| 4 |
6B288
Comments:
CMP
sensor |
| 5 |
12A699
Comments:
KS |
| 6 |
9F972
Comments:
FRP
sensor |

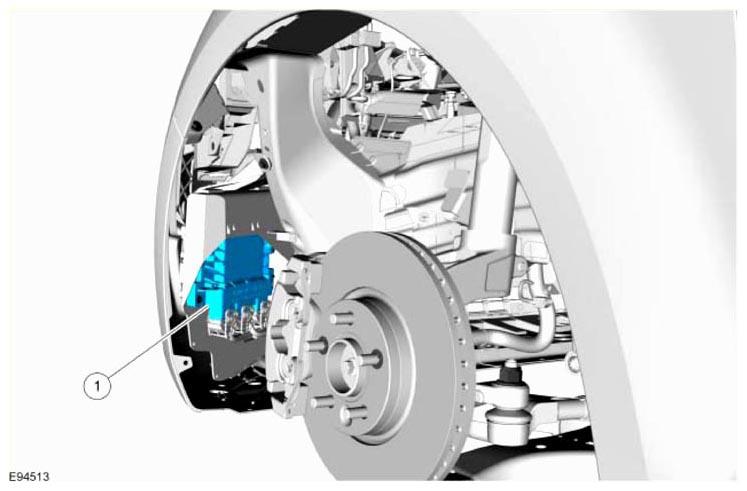

| Item |
Description |
| 1 |
12A650
Comments:
PCM |
