Reductant Injector: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: When reinstalling the reductant injector, a new reductant injector gasket must be installed.

    Install a new gasket and the reductant injector.

    • Tighten to 25 Nm (18 lb-ft).
  2. Connect the reductant injector electrical connector.

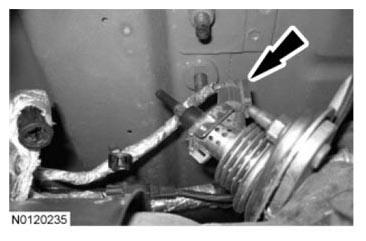

    Fig 1: Locating Reductant Injector Electrical Connector
    G07482031Courtesy of FORD MOTOR CO.
  3. Connect the reductant pressure line to the reductant injector.
    Fig 2: Locating Reductant Pressure Line Connector Tabs
    G07482002Courtesy of FORD MOTOR CO.
  4. NOTE: Make sure the reductant pressure line heat shield is installed back in position. Failure to do so can cause system overheating or freeze up.

    Slide the reductant pressure line heat shield back on the reductant pressure connector on the reductant injector.

    Fig 3: Locating Reductant Pressure Connector On Reductant Injector
    G07482001Courtesy of FORD MOTOR CO.
