Quick Connect Coupling Retainer Clip: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Pay close attention to the orientation of the new retainer clip

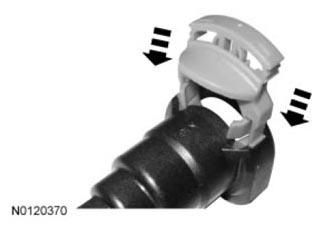

Place the new retainer clip in position and gently press the retainer clip in to the quick connect coupling body until the two tabs move aside.
Push down on the center of the primary latch release tab until you hear a 'click'. Gently push down on the center of the primary latch release tab to check that it is functioning properly.
