Driver Airbag: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

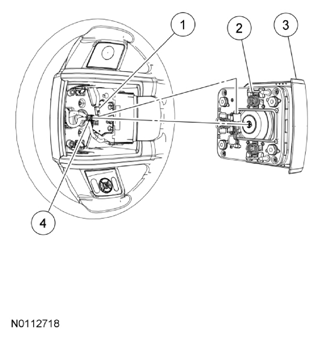

Fig 1: Identifying Driver Air Bag Module, Wire Clip And Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Horn switch electrical connector (part of 3600)
2	-	Driver air bag module wire clip (part of 043B13) (3 required)
3	043B13	Driver air bag module
4	-	Driver air bag module electrical connector (part of 14A664)
