Front Disc Brake: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

Vehicles with twin I-beam axle

  1. The brake disc and wheel hub are an assembly on vehicles with twin I-beam axle. To remove the brake disc, refer to Wheel Bearing and Wheel Hub -F250, F350 in FRONT SUSPENSION - REAR WHEEL DRIVE (RWD) .

    Vehicles with monobeam axle

  2. Remove the wheel and tire. Refer to WHEELS AND TIRES .

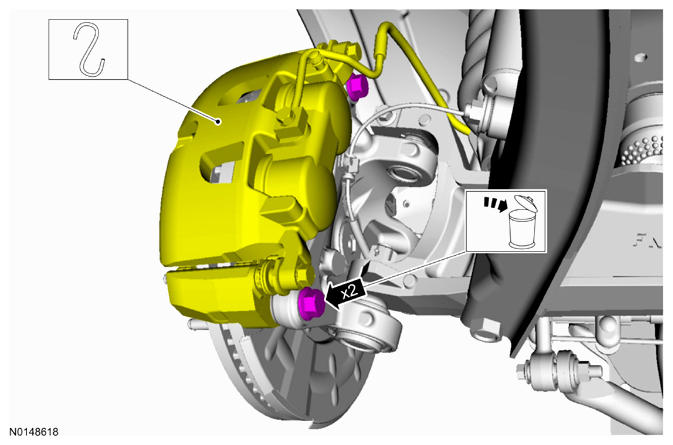

  3. NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

    Relocate and support the component.

    • To install, on F-250, F-350, tighten to 225 Nm (166 lb-ft).
    • To install, on F-450, F-550, tighten to 350 Nm (258 lb-ft).
      G08601688

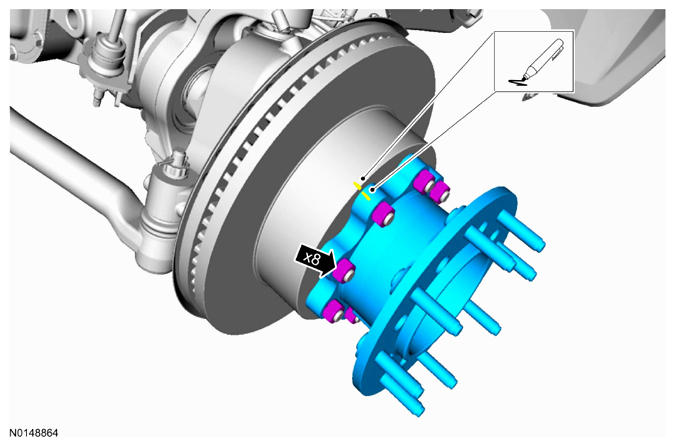

  4. NOTE: If equipped with DRW.

    Marker.

    • To install, tighten to 176 Nm (130 lb-ft).
      G08601689

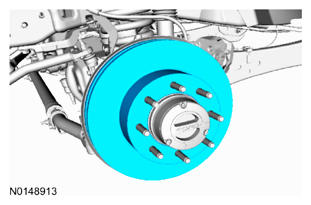

  5. G08601690

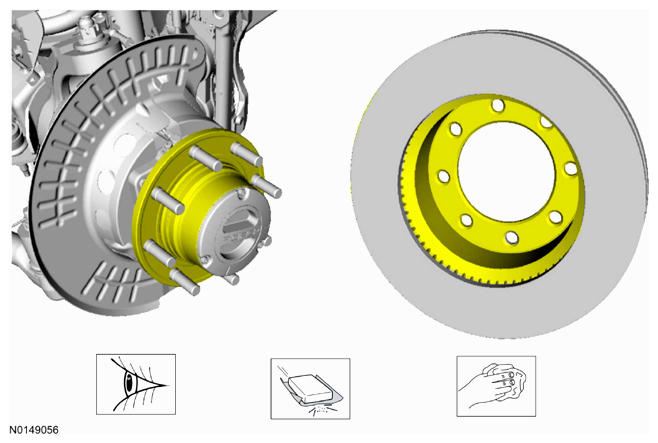

  6. Visual check. Sandpaper. Clean the specified component with the specified material/cleaner.
    G08601691

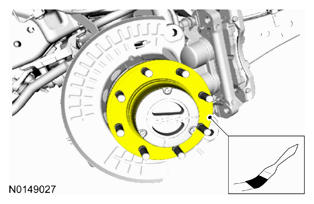

  7. Apply the specified material/lubricant with a brush.
    G08601692

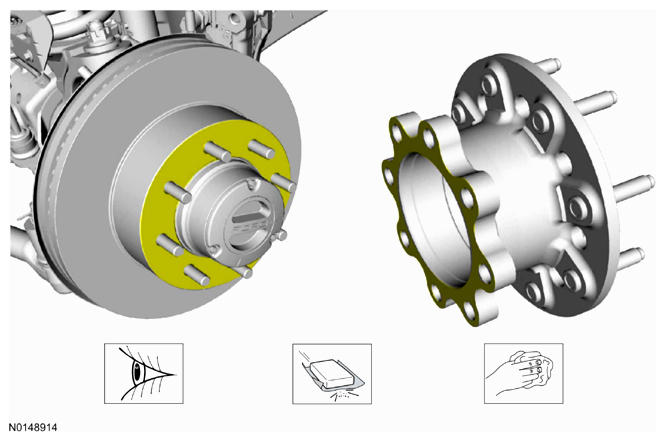

  8. NOTE: If equipped with DRW.

    Visual check. Sandpaper. Clean the specified component with the specified material/cleaner.

G08601693
