CHT Sensor
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The battery tray must be removed to perform this procedure. Refer to
BATTERY, MOUNTING AND CABLES
.
NOTE:
Do not reuse the CHT sensor, install a new sensor.

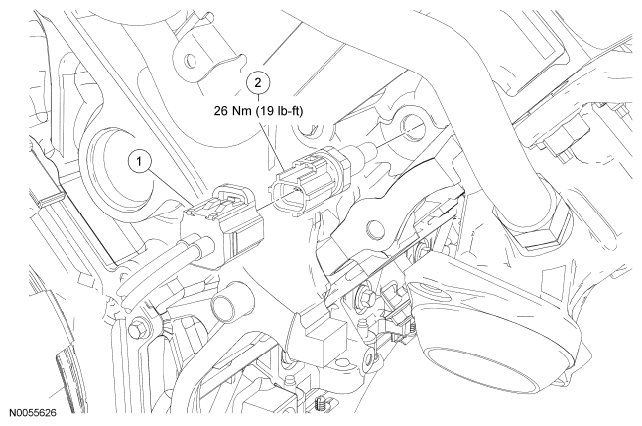

| Item | Part Number | Description |
|---|---|---|
| 1 | - | CHT sensor electrical connector |
| 2 | 6G004 | CHT sensor |
