Engine Mechanical - 2.0L ECOBOOST: Removal: Engine

SPECIAL TOOL/GENERAL EQUIPMENT DESCRIPTION

014-00001
G09600011
 300-OTC1585AE
Powertrain Lift
G09600012
 300-OTC1819E
2, 200# Floor Crane, Fold Away
Hose Clamp Remover/Installer
Wooden Block
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: JACKING AND LIFTING - OVERVIEW .
  3. Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
  4. Refer to: FUEL SYSTEM PRESSURE RELEASE .

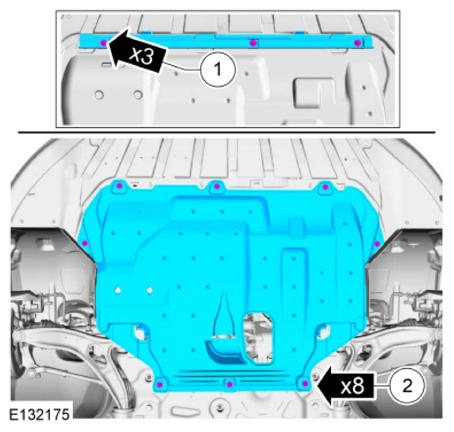

  5. G09600013
  6. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
  7. Remove the following items:
    1. Refer to: DEGAS BOTTLE .
    2. Refer to: AIR CLEANER .
    3. Refer to: AIR CLEANER OUTLET PIPE .
    4. Refer to: COOLING MODULE .

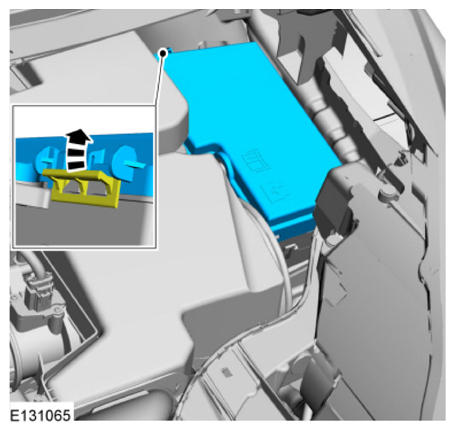

  8. G09600014

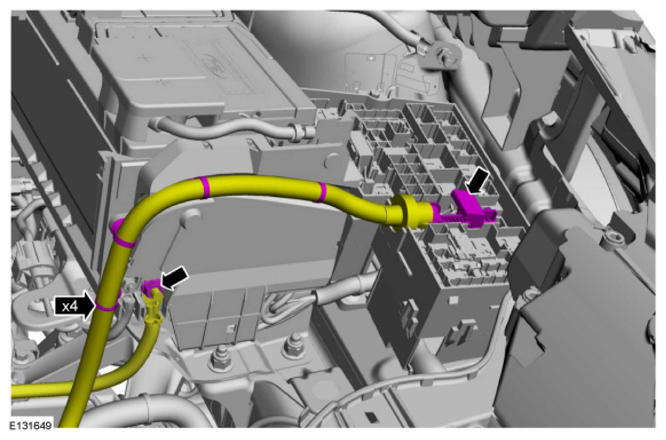

  9. G09600015
  10. Refer to: BATTERY TRAY .

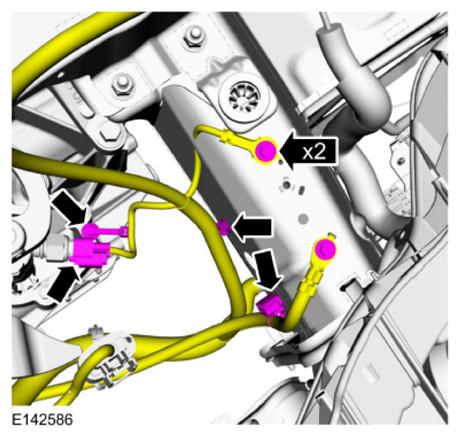

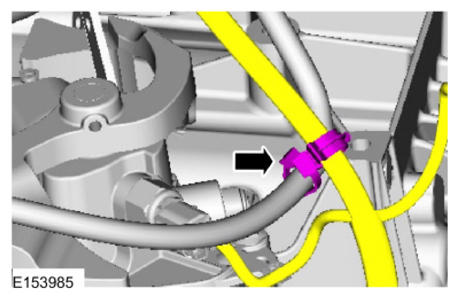

  11. G09600016
  12. G09600017
  13. Refer to: POWERTRAIN CONTROL MODULE (PCM) .

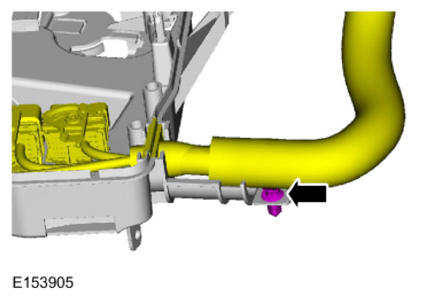

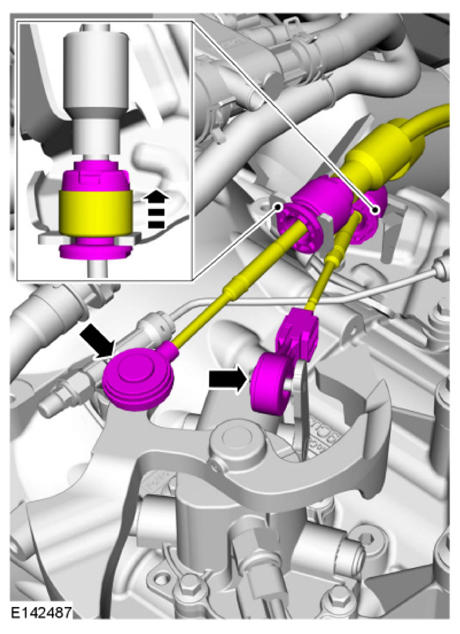

  14. G09600018
  15. G09600019

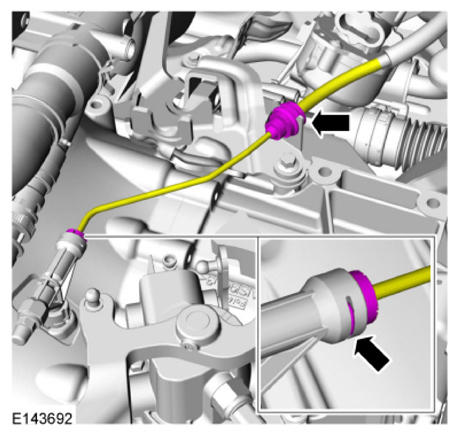

  16. G09600020

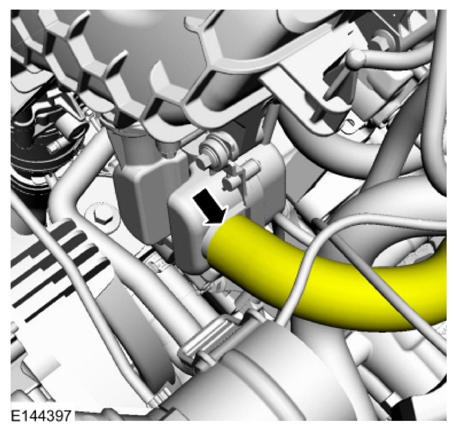

  17. G09600021
    1. Refer to: QUICK RELEASE COUPLING .

      Use the General Equipment: Hose Clamp Remover/Installer

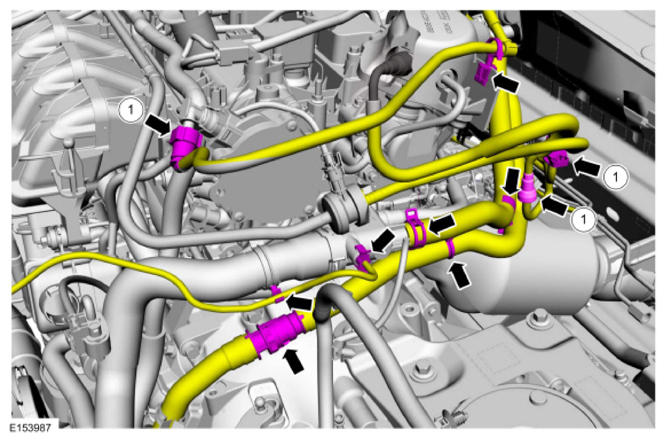

      G09600022

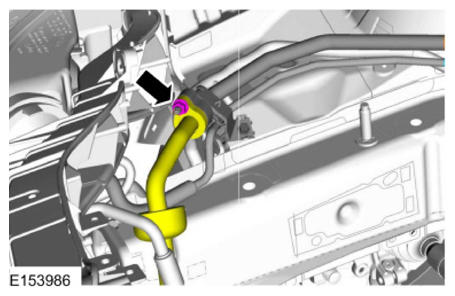

  19. G09600023

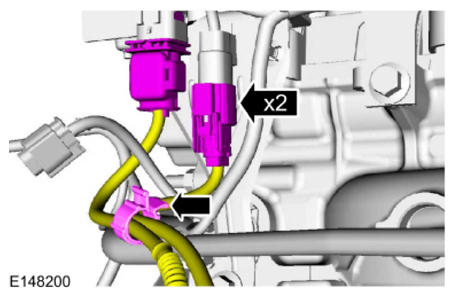

  20. G09600024

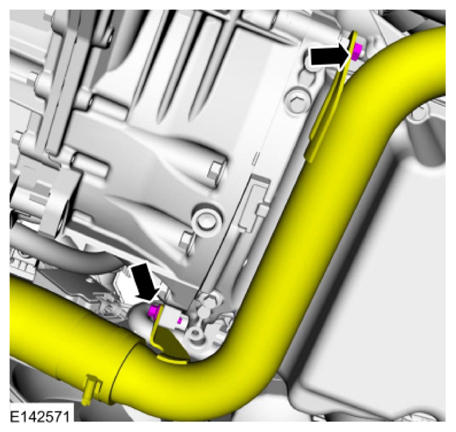

  21. G09600025

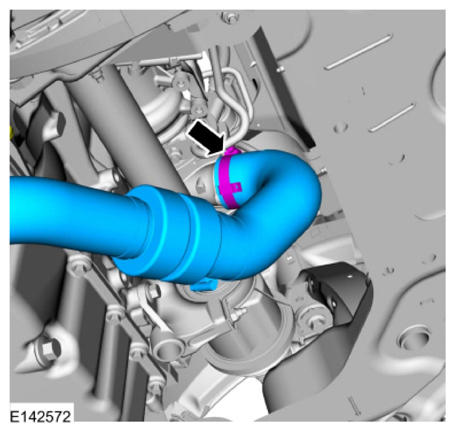

  22. G09600026
  23. Remove the following items:
    1. Refer to: FRONT HALFSHAFT LH .
    2. Refer to: FRONT HALFSHAFT RH .
  24. Discard the specified component. Follow local disposal regulations.

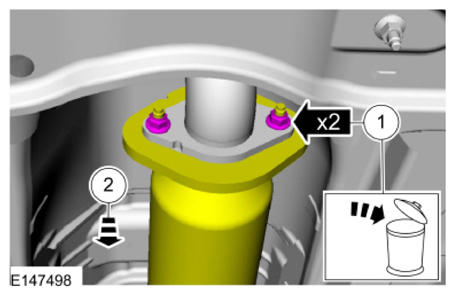

    G09600027
  25. Discard the specified component. Follow local disposal regulations.

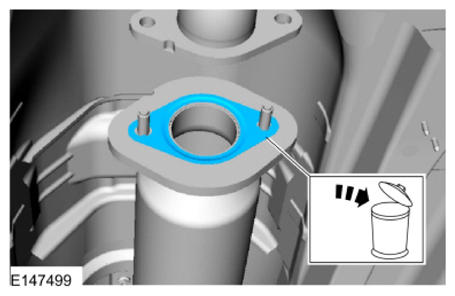

    G09600028

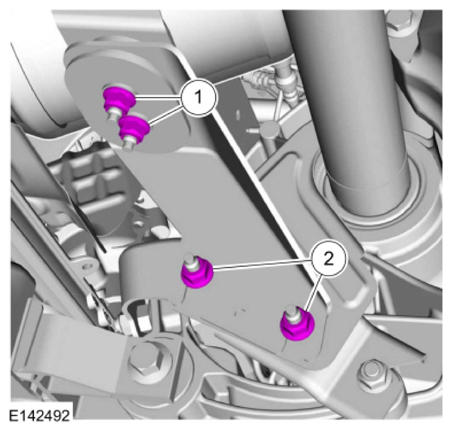

  26. G09600029
    1. 3. If equipped.

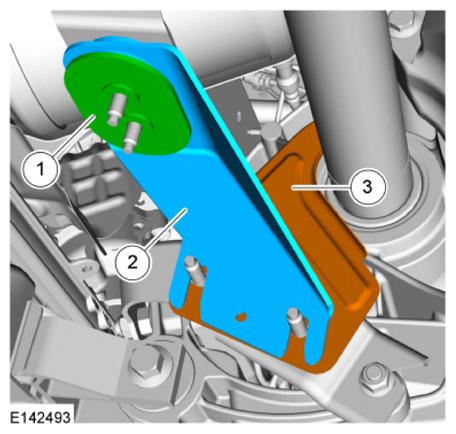

      G09600030
  28. Discard the specified component. Follow local disposal regulations.

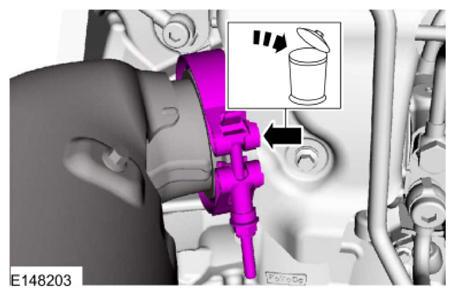

    G09600031

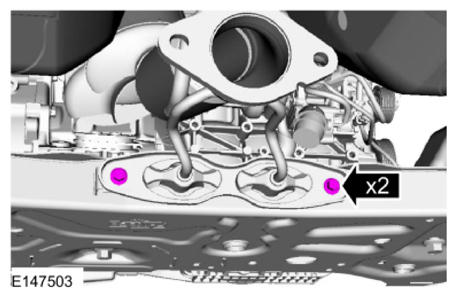

  29. G09600032
  30. Relocate and support the component.

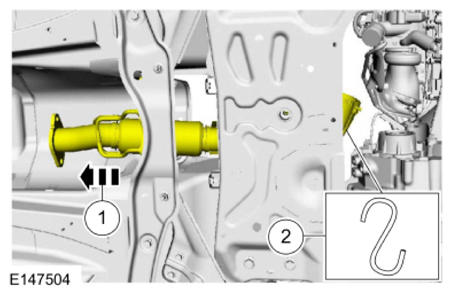

    G09600033
  31. Discard the specified component. Follow local disposal regulations.

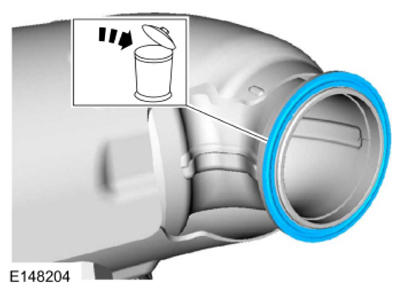

    G09600034

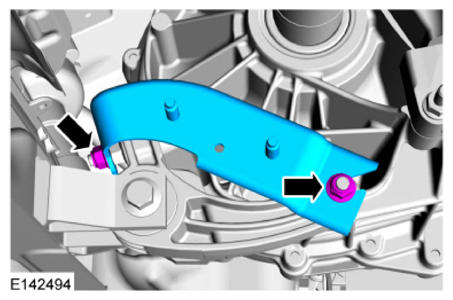

  32. G09600035

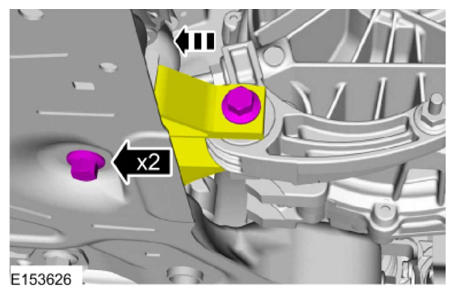

  33. G09600036
  34. Discard the specified component. Follow local disposal regulations.

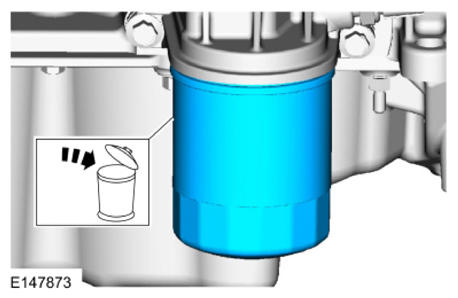

    G09600037
  35. Torque  : 20 lb.ft (27 Nm)

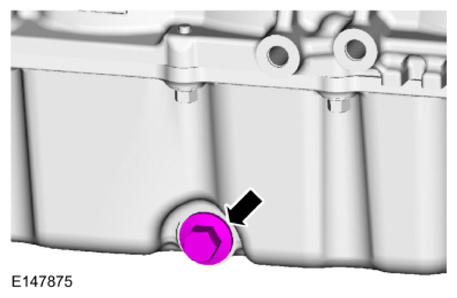

    G09600038
  36. Install Special Service Tool: 300-OTC1585AE Powertrain Lift  ., 014-00001.

    Use the General Equipment: Wooden Block

    G09600039

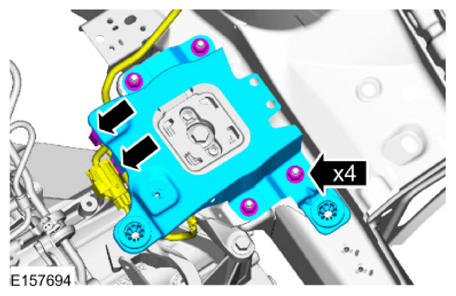

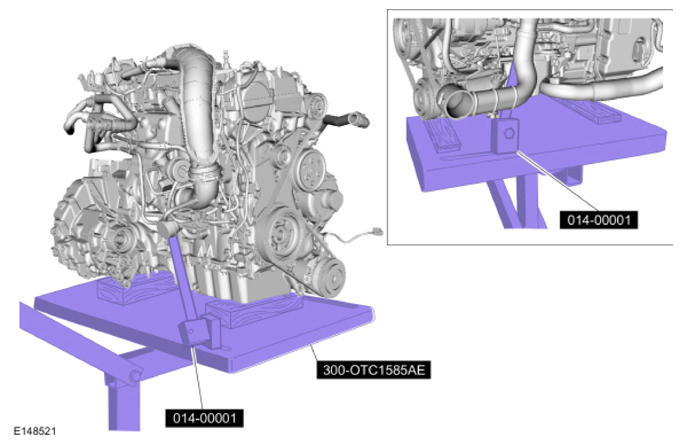

  37. G09600040

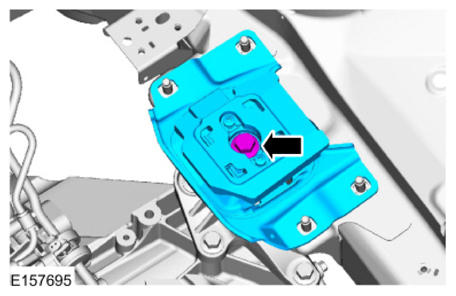

  38. G09600041

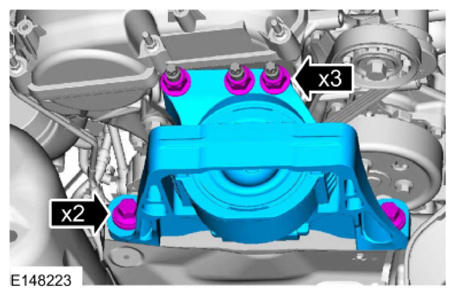

  39. G09600042
  40. Use Special Service Tool: 300-OTC1585AE Powertrain Lift  ., 014-00001.

    Use the General Equipment: Wooden Block

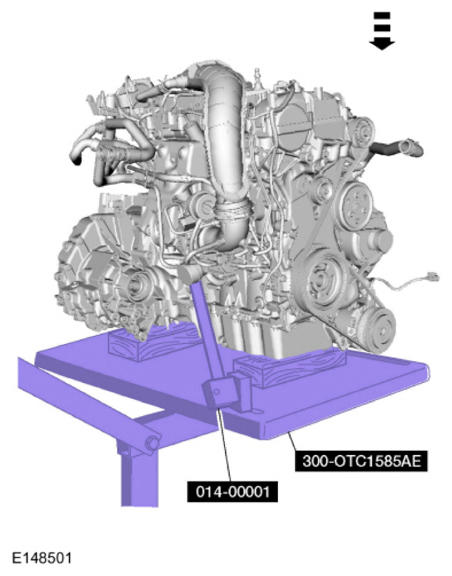

    G09600043

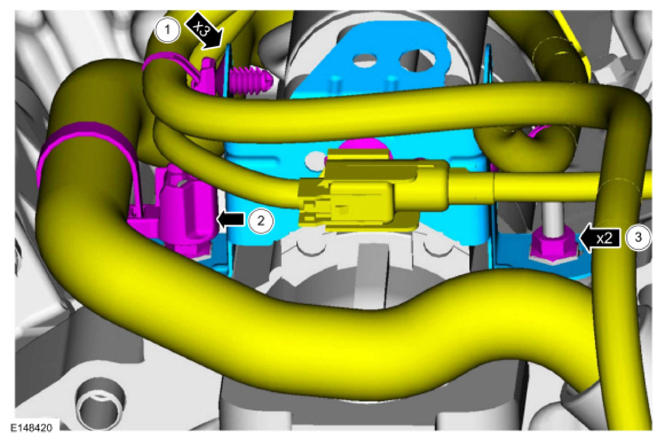

  41. G09600044

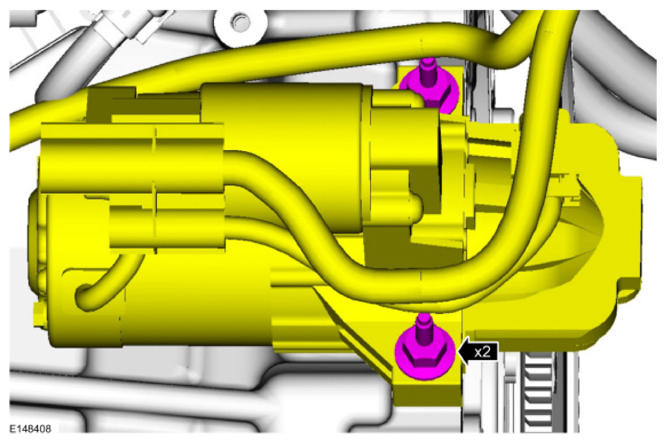

  42. G09600045
  43. G09600046

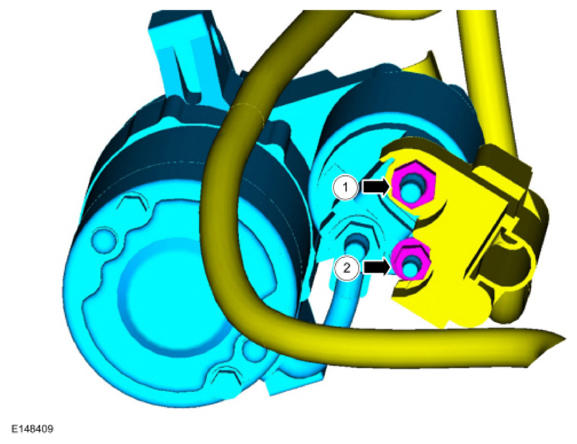

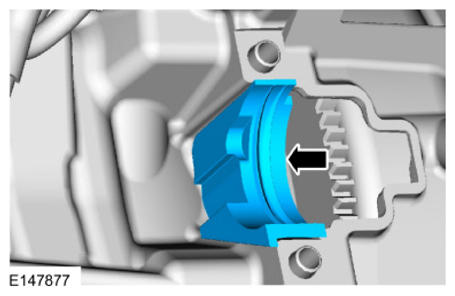

  44. G09600047

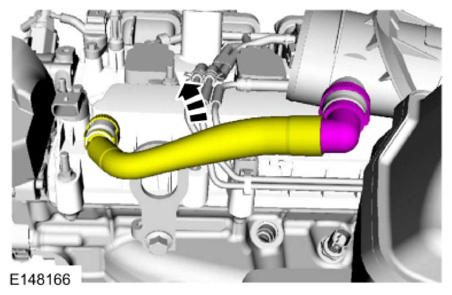

  45. G09600048

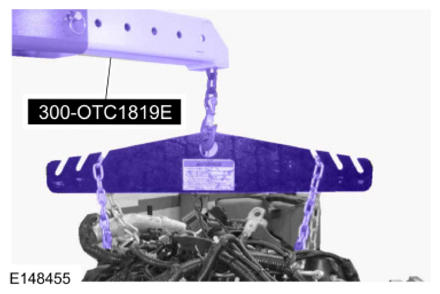

  46. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away  .
    G09600049

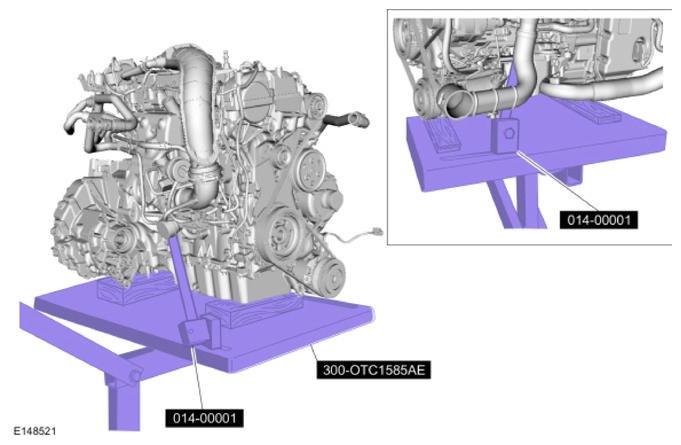

  47. Remove Special Service Tool: 300-OTC1585AE Powertrain Lift  ., 014-00001.

    Use the General Equipment: Wooden Block

    G09600050

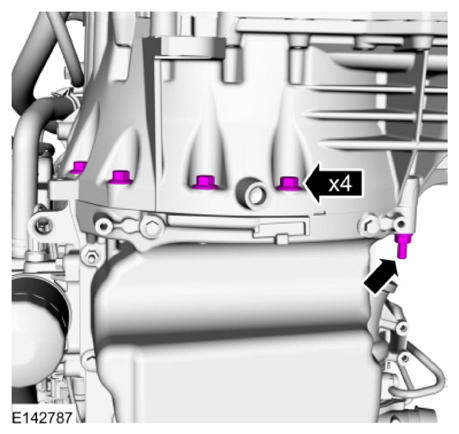

  48. G09600051

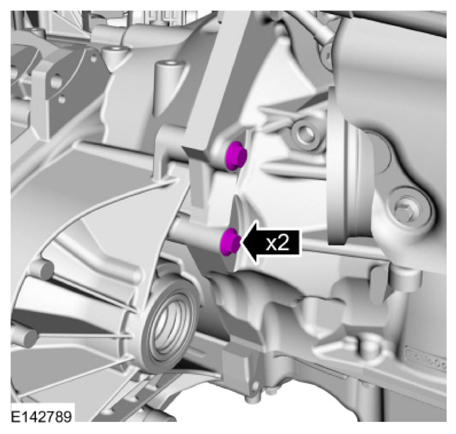

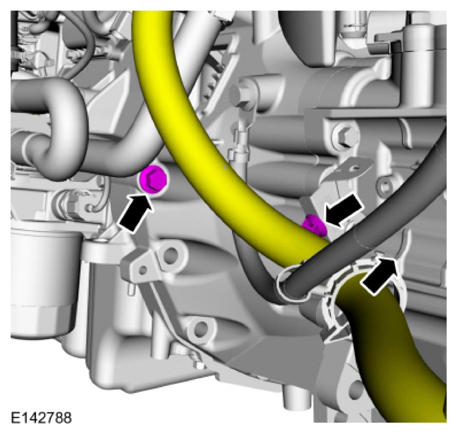

  49. G09600052
  50. G09600053
  51. Two people required.

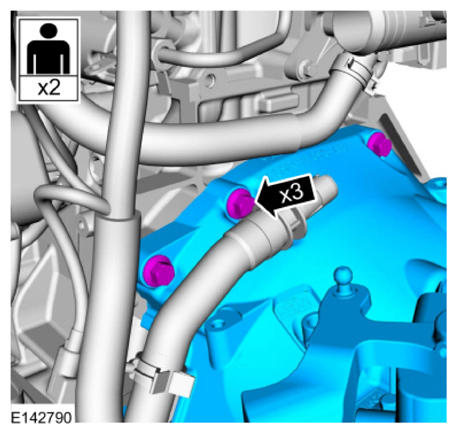

    G09600054
