Intake Manifold: Installation
NOTE:
If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
-

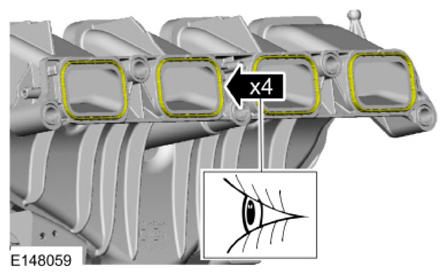

NOTE: Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.
Visual check.

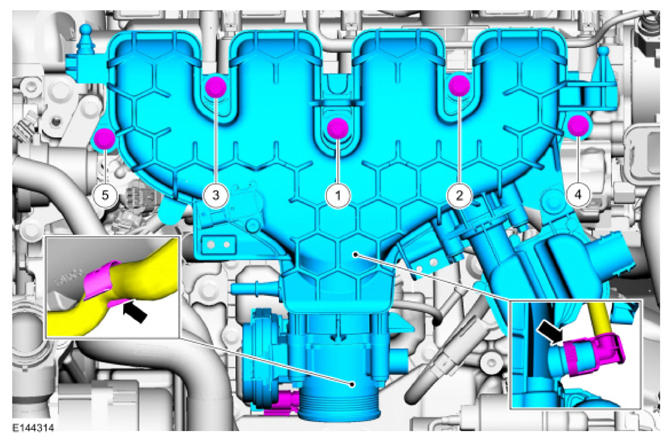

- Torque
: 177 lb.in (20 Nm)
-

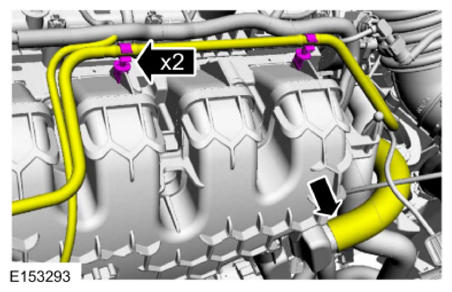

- Refer to: QUICK RELEASE COUPLING
.
- Refer to: QUICK RELEASE COUPLING
.
- Refer to: BATTERY DISCONNECT AND CONNECT .
