Removal And Installation: Flywheel: Installation

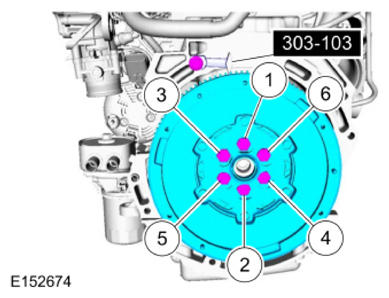

  1. NOTE: Special bolts are used for installation. Do not use standard bolts.

    Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel  .

    Torque  :

    Stage 1: 37 lb.ft (50 Nm)

    Stage 2: 59 lb.ft (80 Nm)

    Stage 3: 83 lb.ft (112 Nm)

    G09599979
  2. Refer to: CLUTCH DISC AND PRESSURE PLATE - 6-SPEED MANUAL TRANSMISSION - MMT6 .
  3. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
