Key Programming Using Diagnostic Equipment: Programming

  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. NOTE: To enter the PATS  security access if no programmed passive keys are available, start a vehicle session using a tear tag or PCM  part number. The PATS  security access can still be granted even with the ignition off.

    Refer to: DIAGNOSTIC METHODS .

  3. From the diagnostic scan tool, enter TOOLBOX. Select Body>Security>PATS Functions and follow the on-screen instructions to enter PATS  security access.
    • NOTE: A maximum of 8 keys can be programmed into the vehicle.

      From the diagnostic scan tool menu, select the appropriate key programming procedure and follow the on-screen instructions to program the passive key(s).

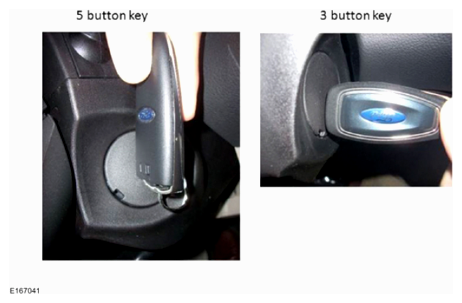

    • NOTE: When prompted by the scan tool, place the passive key next to the PATS  transceiver.
      G08591238
