Front Control/Display Interface Module (FCDIM): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Upload the FCDIM  configuration information to the scan tool by following the scan tool on screen instructions.

  3. Remove the ACM  .

    Refer to: AUDIO FRONT CONTROL MODULE (ACM) .

  4. Torque  : 12 lb.in (1.3 Nm)

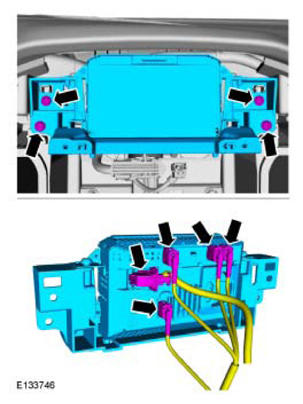

    G08065702
  5. NOTE: This step is only necessary when installing a new component.

    Torque  : 18 lb.in (2 Nm)

    G08065703
