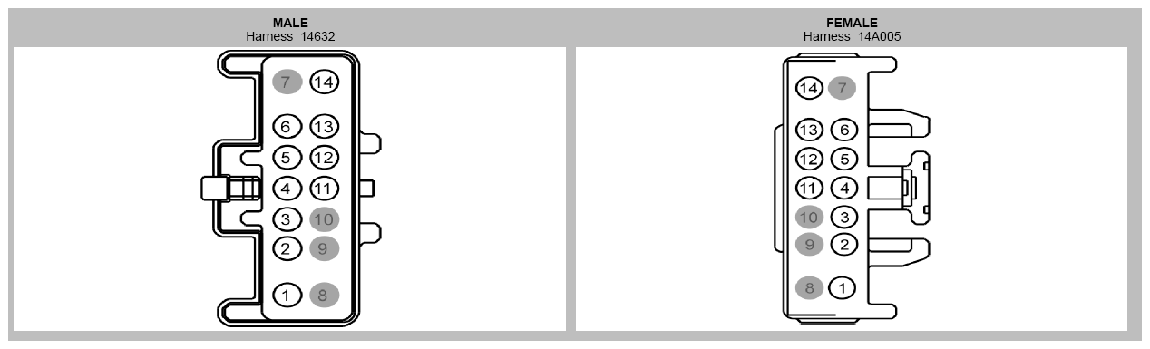

Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CBP48 (GY-YE) |
12 |
|
| 2 |
CPW14 (VT-WH) |
20 |
14632 |
| 2 |
CPW14 (VT-WH) |
22 |
14A005 |
| 3 |
CPW18 (GY-VT) |
20 |
14632 |
| 3 |
CPW18 (GY-VT) |
22 |
14A005 |
| 4 |
CPW17 (BN-GN) |
20 |
14632 |
| 4 |
CPW17 (BN-GN) |
22 |
14A005 |
| 5 |
CPL11 (GY-BN) |
16 |
14A005 |
| 5 |
CPL11 (GY-BN) |
18 |
14632 |
| 6 |
VME12 (BN-WH) |
18 |
|
| 7 |
* |
* |
|
| 8 |
* |
* |
|
| 9 |
* |
* |
|
| 10 |
* |
* |
|
| 11 |
CPL39 (YE) |
20 |
14632 |
| 11 |
CPL39 (YE) |
26 |
14A005 |
| 12 |
CPL52 (VT-GY) |
16 |
14A005 |
| 12 |
CPL52 (VT-GY) |
18 |
14632 |
| 13 |
RME12 (BN-BU) |
18 |
|
| 14 |
GD348 (BK-YE) |
12 |
14A005 |
| 14 |
GD348 (BK-YE) |
14 |
14632 |
