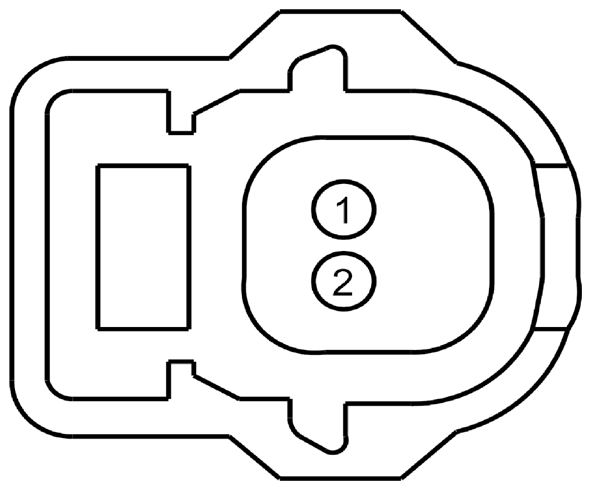

Front Impact Sensor, Left Connector End View (C1465)

Fig 1: Identifying Front Impact Sensor, Left Connector (C1465)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR214 (WH-BU)	18	SENSOR - IMPACT FRONT RH FEED
2	RR130 (GN-BU)	18	CTRL MOD. - SENSOR IMPACT FRONT RH FEED

Available Pigtail Kits

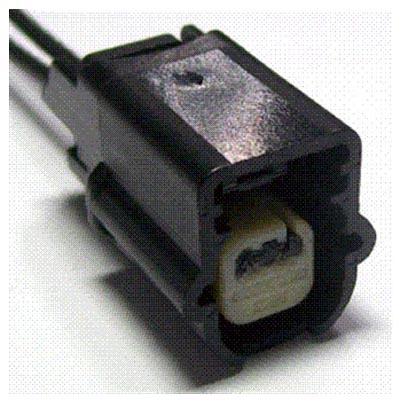

Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC  Gauge: 20  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer

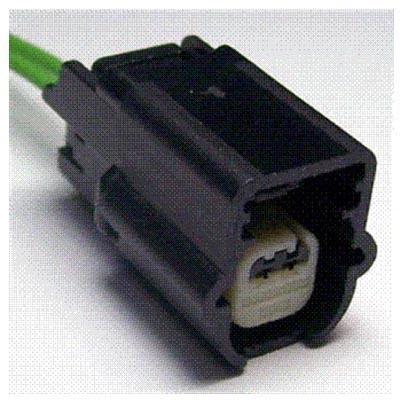

Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
Pigtail Kit Part Number WPT-1090	Service Part Number: AU2Z-14S411-YA  Gauge: 18  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Side Impact
