Left Front Interior Compartment Harness

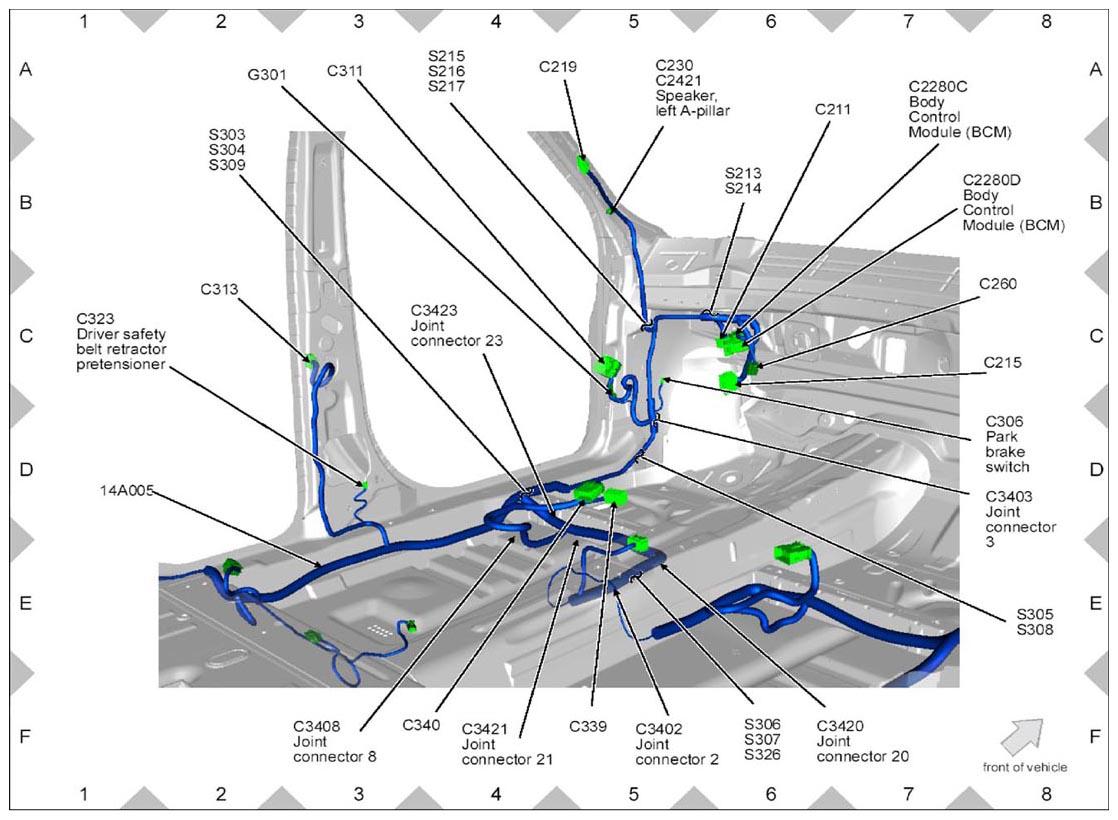

Fig 1: Left Front Interior Compartment Harness Wiring Harness Connectors Location

G09253458

Courtesy of FORD MOTOR CO.
