Engine Harness

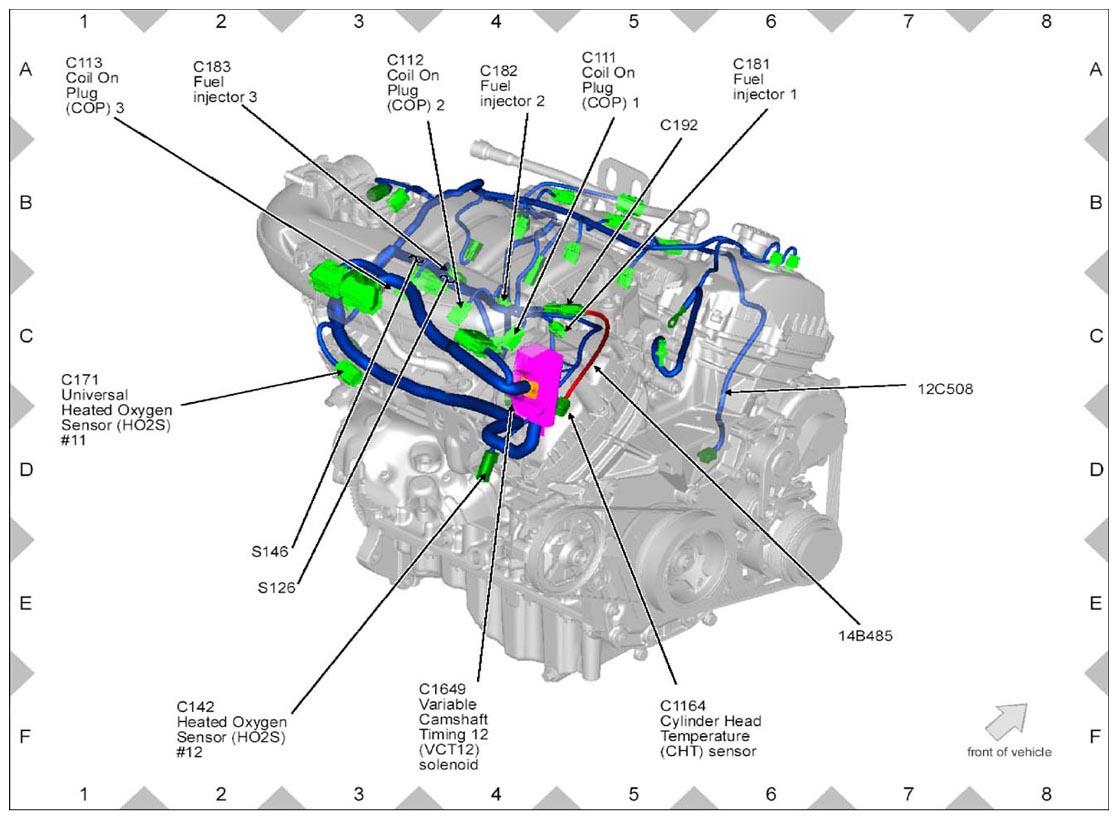

Fig 1: Engine Wiring Harness Connectors Location (1 Of 4)
G09253447Courtesy of FORD MOTOR CO.

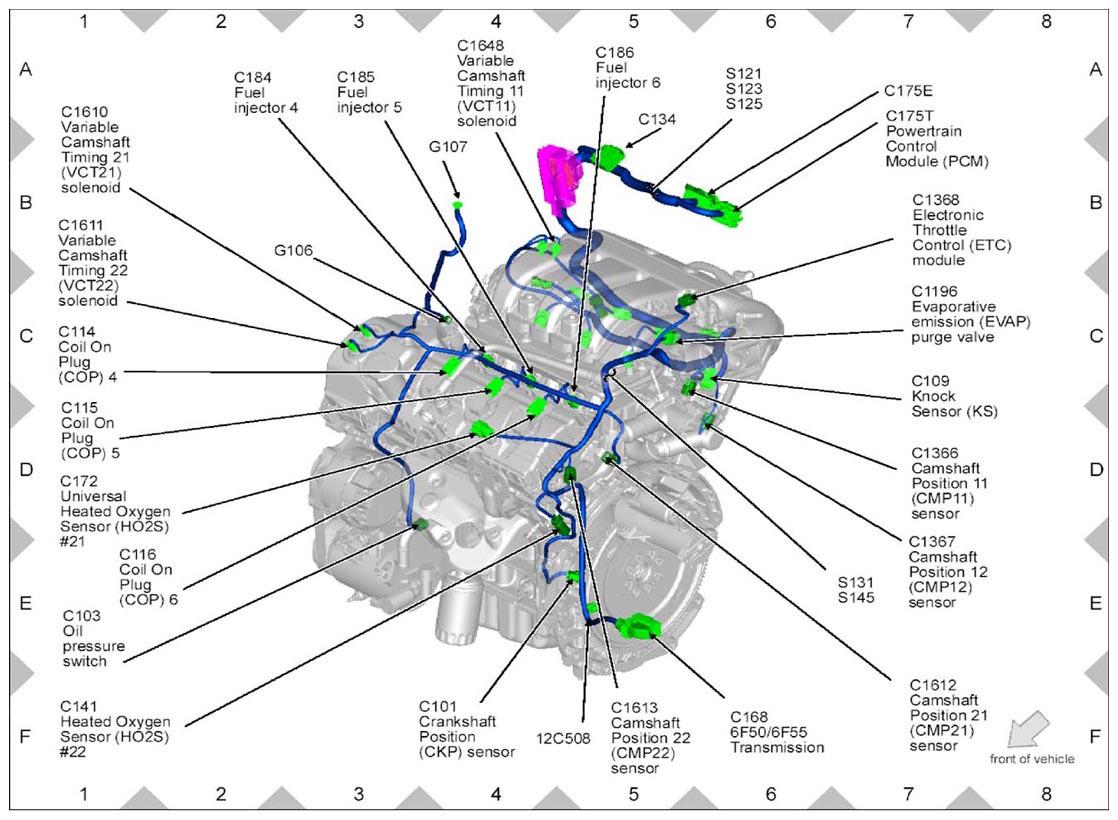

Fig 2: Engine Wiring Harness Connectors Location (2 Of 4)
G09253448Courtesy of FORD MOTOR CO.

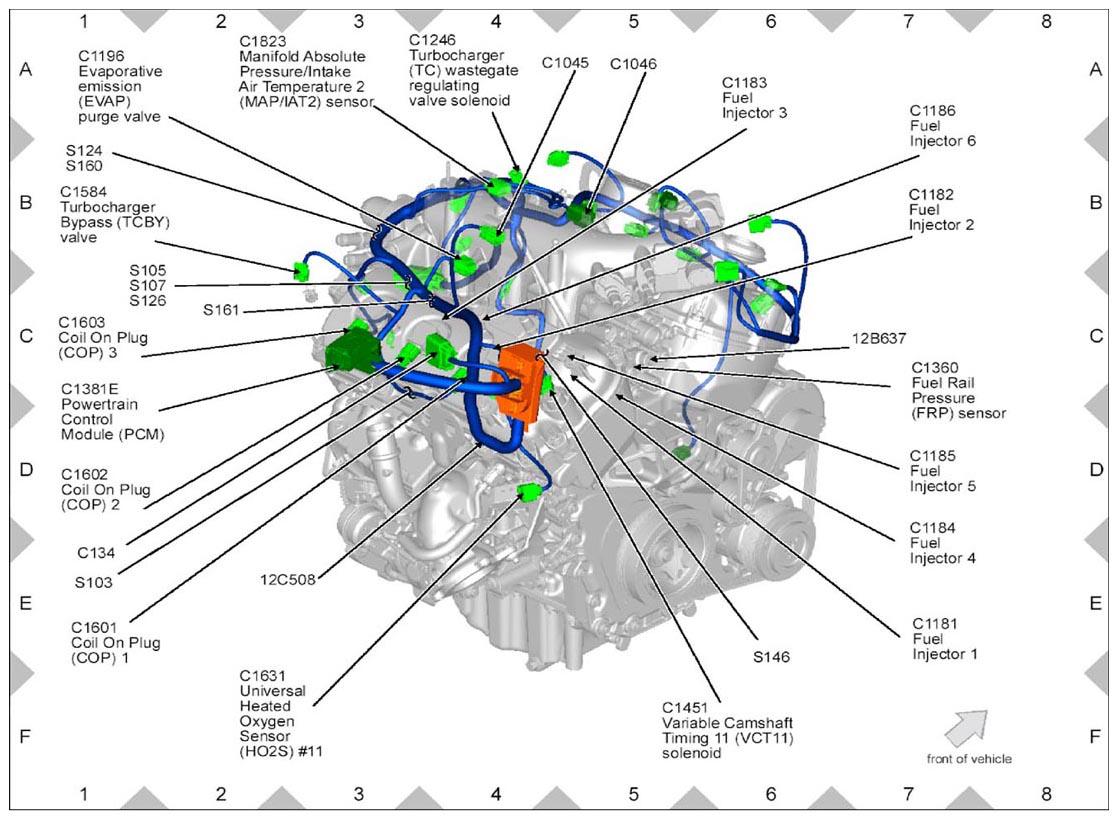

Fig 3: Engine Wiring Harness Connectors Location (3 Of 4)
G09253449Courtesy of FORD MOTOR CO.

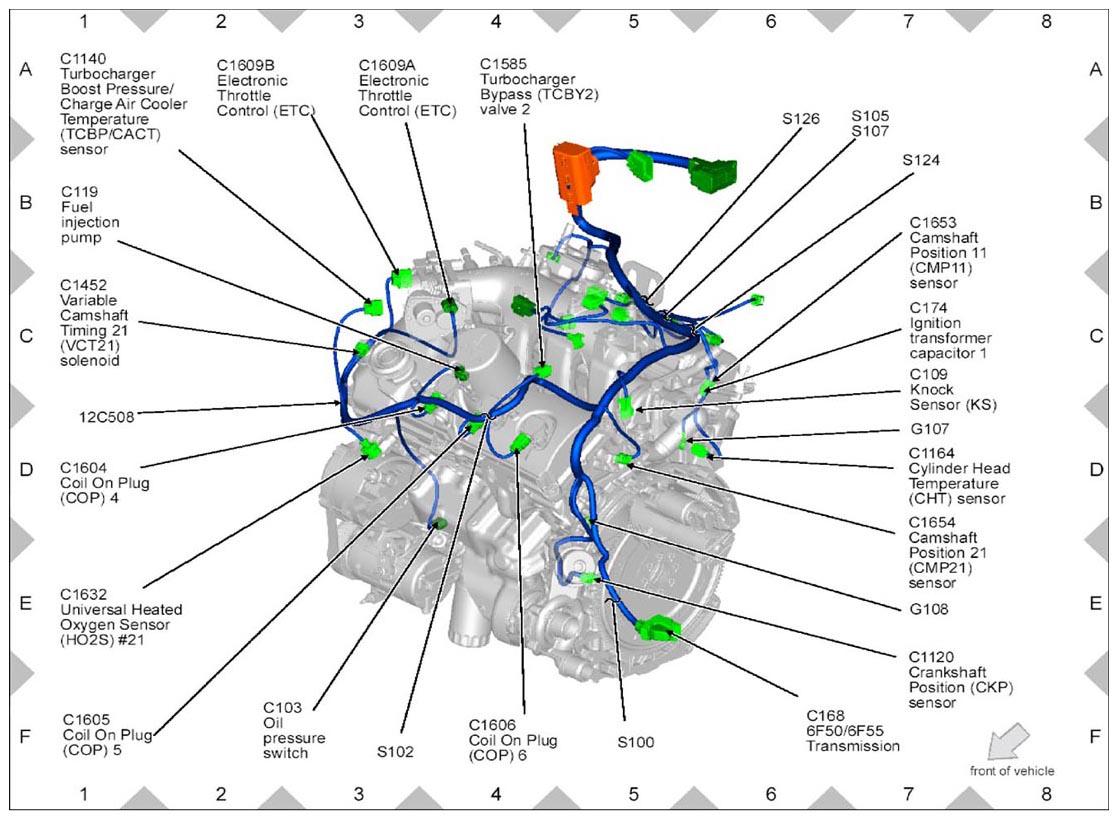

Fig 4: Engine Wiring Harness Connectors Location (4 Of 4)
G09253450Courtesy of FORD MOTOR CO.
