Center Console Harness
Center Console Harness

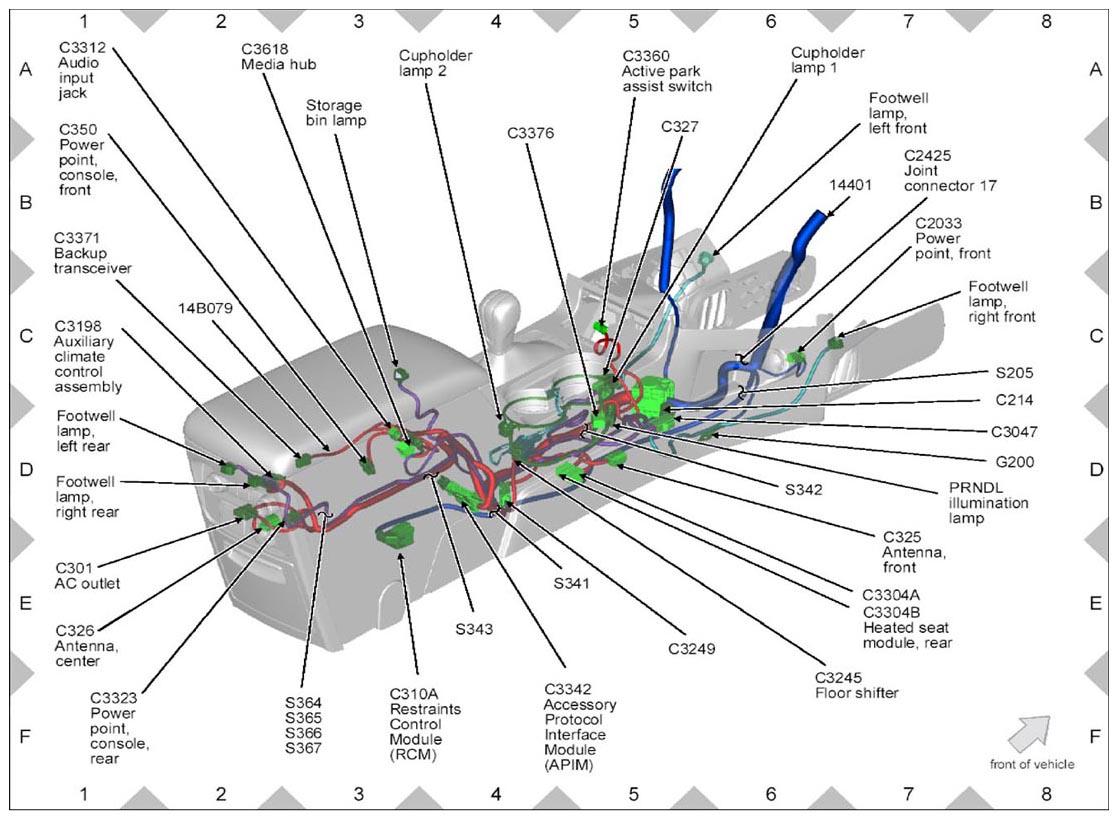

Fig 1: Center Console Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
