Instrument Panel Upper Section

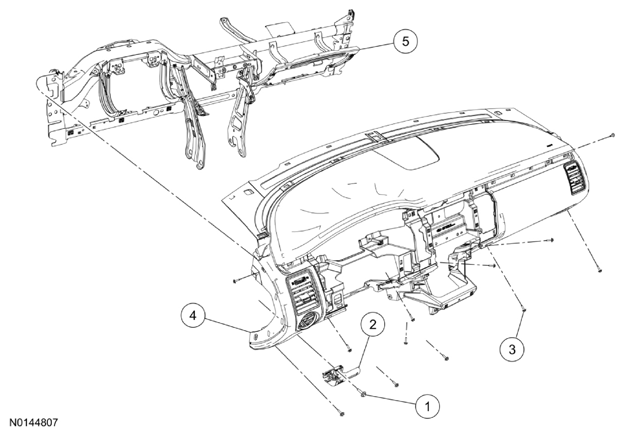

Fig 1: Instrument Panel Upper Section Components Location
G08626200Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505424 Hood release handle bolt
2 16916 Hood release handle
3 W707628 Instrument panel upper section screw (13 required)
4 04320 Instrument panel upper section
5 04545 In-vehicle crossbeam
  1. For additional information, refer to the appropriate procedures.
