OEM Ground Distribution: Grounds: G201

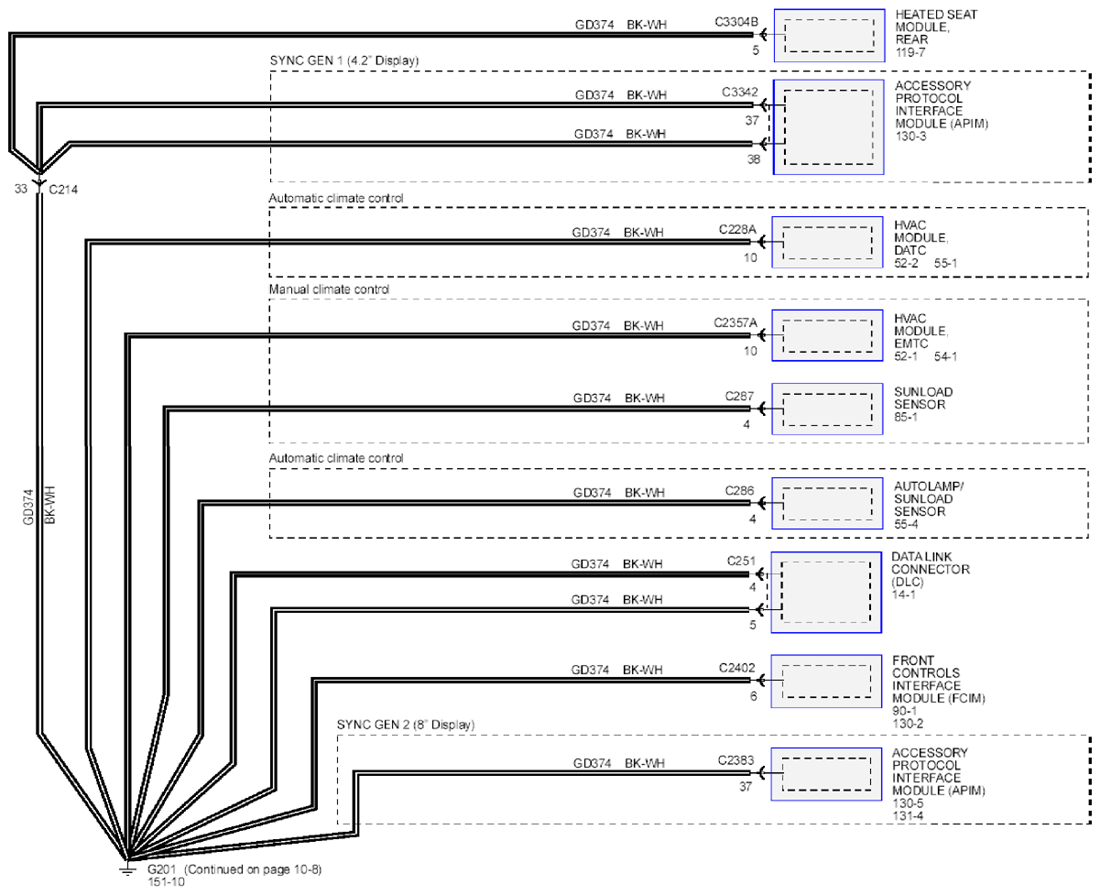

Fig 1: Grounds - Wiring Diagram - G201 (1 Of 2)

G09252305

Courtesy of FORD MOTOR CO.

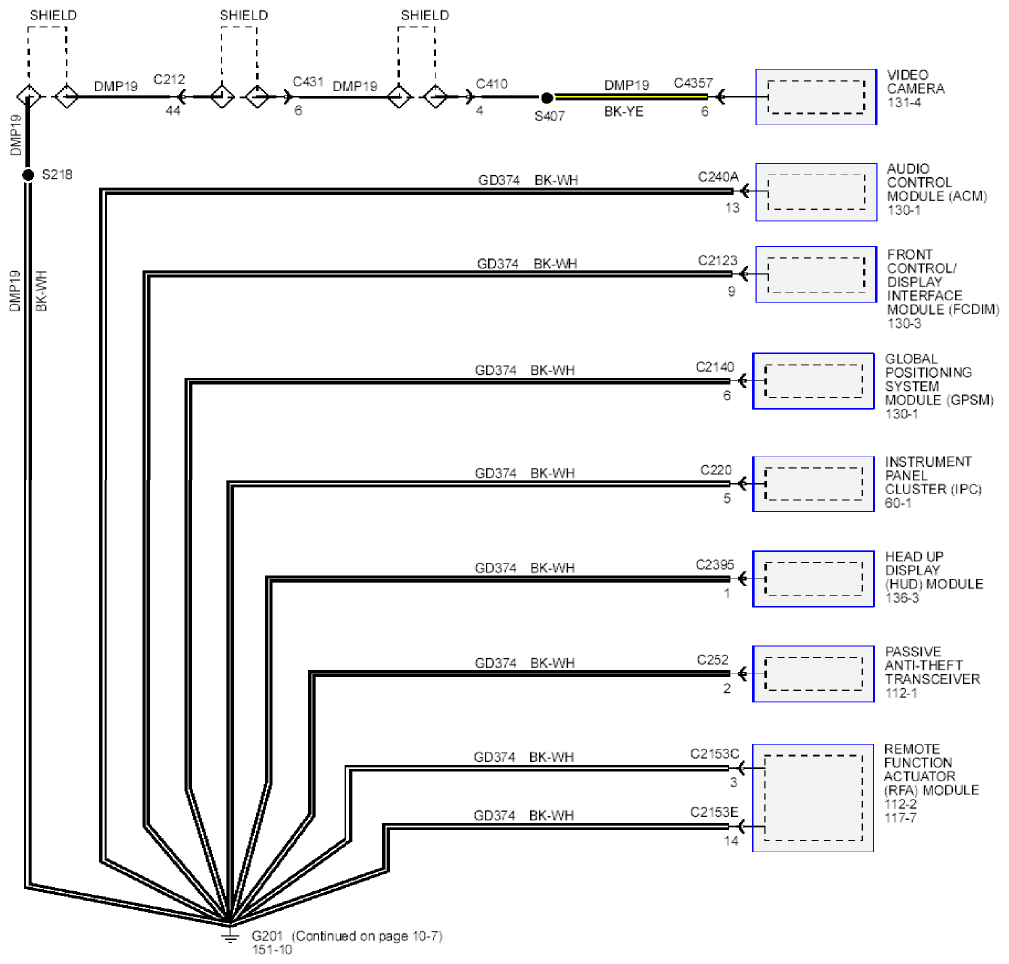

Fig 2: Grounds - Wiring Diagram - G201 (2 Of 2)

G09252306

Courtesy of FORD MOTOR CO.
