Body Control Module (BCM)

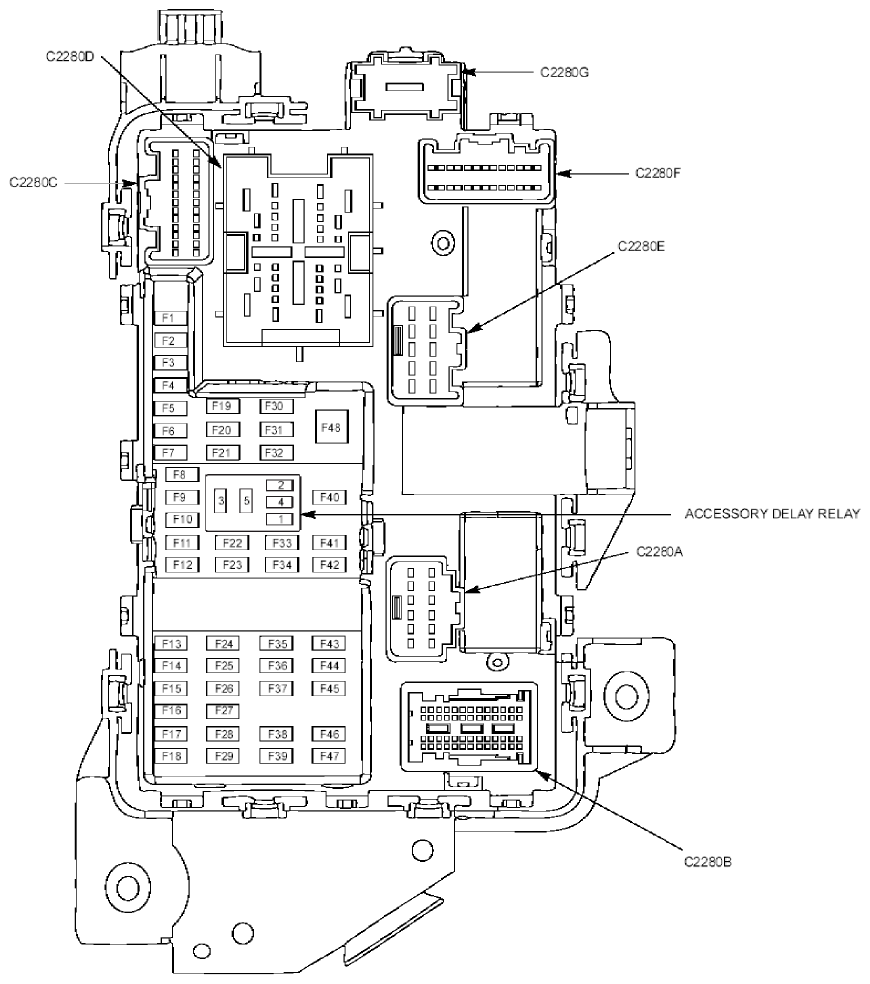

BODY CONTROL MODULE RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ACCESSORY DELAY RELAY |
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, driver side front |
| F2 | 15 | Power fold seat motors, Seat control switch, driver side front |
| F3 | 30 | Not used |
| F4 | 10 | Glove box lamp, Interior lamps, Third row power seat relay 2nd row seat control switches |
| F5 | 20 | Subwoofer, Audio Digital Signal Processing (DSP) |
| F6 | 5 | Not used |
| F7 | 7.5 | Driver Door Module (DDM) - with memory Driver Seat Module (DSM) - with memory Exterior rear view mirror switch Keypad switch assembly |
| F8 | 10 | Liftgate/Trunk Module (LTM) |
| F9 | 10 | FCIM, APIM, FCDIM, TPM module |
| F10 | 10 | Run/Acc Feeds, |
| F11 | 10 | Remote Function Actuator RFA) module Head Up Display (HUD) module |
| F12 | 15 | Puddle lamps, Interior lighting, Backlighting, Exterior rear view mirrors |
| F13 | 15 | Right front park/turn lamps - turn lamp, Right stop/turn trailer tow lamp relay - turn lamp, Right rear lamp assembly - turn lamp |
| F14 | 15 | Left front park/turn lamps - turn lamp, Left stop/turn trailer tow lamp relay - turn lamp, Left rear lamp assembly - turn lamp |
| F15 | 15 | High mounted stoplamp, Reversing lamps relay, Auto dimming interior mirror unit - reverse, Rear lamp assemblies - backup lamp |
| F16 | 10 | Right headlamp - low beam |
| F17 | 10 | Left headlamp - low beam |
| F18 | 10 | Floor shifter, power Fold Mirror (PFM), Powertrain Control Module (PCM), Passive anti-theft transceiver - w/o IA, Keyless entry keypad - w/o IA, Start/Stop switch - with IA |
| F19 | 20 | Not used |
| F20 | 20 | Door lock actuators, Remote Function Actuator (RFA) module |
| F21 | 10 | Not used |
| F22 | 20 | Horn |
| F23 | 15 | Steering Column Control Module (SCCM), Instrument Panel Cluster (IPC) |
| F24 | 15 | Data Link Connector (DLC), Steering Column Control Module (SCCM) |
| F25 | 15 | Liftgate release relay |
| F26 | 5 | Start/stop switch, Ignition switch |
| F27 | 20 | Remote Function Actuator (RFA) module |
| F28 | 15 | Not used |
| F29 | 20 | Audio Control Module (ACM), Global Positioning System Module (GPSM) |
| F30 | 15 | Parking lamp trailer tow relay, Headlamps - park lamp, Front park/turn lamps park lamp |
| F31 | 5 | Brake pedal Position (BPP) switch |
| F32 | 15 | Door lock switches, Master window control switch Power window motors, DC/AC inverter module Window adjust switches, Auto-dimming interior mirror unit, Roof opening motor assembly |
| F33 | - | Not used |
| F34 | 10 | Rear heated seat module, Side obstacle detection control modules, Parking Aid Module (PAM), Video camera |
| F35 | 5 | In-vehicle temperature sensor, Joint connector 24 |
| F36 | - | Not used |
| F37 | 10 | Refrigerator |
| F38 | 10 | Door lock switches, Power window motors, Window adjust switches, Auto-dimming interior mirror unit, Roof opening motor assembly |
| F39 | 15 | Headlamp - high beam |
| F40 | 10 | Rear Lamp assemblies - park lamp License plate lamps, |
| F41 | 7.5 | Restraints Control Module (RCM), Occupant Classification System Module (OCSM) |
| F42 | 5 | Not used |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Not used |
| F46 | 10 | HVAC module |
| F47 | 15 | Fog lamps, Front park/turn lamps |
| F48 | 30 c.b. | Window control switch, right rear Window control switch, left rear Window control switch, passenger side |
