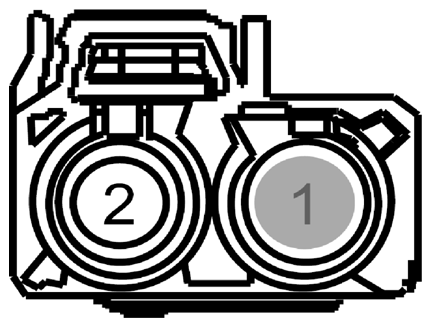

Antenna Module Connector End View (C9021)

Fig 1: Identifying Antenna Module Connector (C9021)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	VME43 (BU)	20	CTRL MOD. - ANTENNA # SATELLITE DIGITAL RADIO +
