Occupant Classification System (OCS) Sensor: Removal

NOTE: To prevent system failure, carry out the OCS reset when a front passenger seat cushion is disassembled, a new trim cover is installed or an OCS service kit is installed. Use a scan tool to carry out the OCS reset command.

NOTE: The cushion heater mat on a front outboard passenger seat is not serviced separately. If a new cushion heater mat is needed on the front passenger seat, install an OCS service kit equipped with a heater mat. Failure to follow this instruction may result in incorrect operation of the OCS .

NOTE: Removal steps in this procedure may contain installation details.

All seats

Remove the passenger seat.
Refer to: FRONT SEAT .

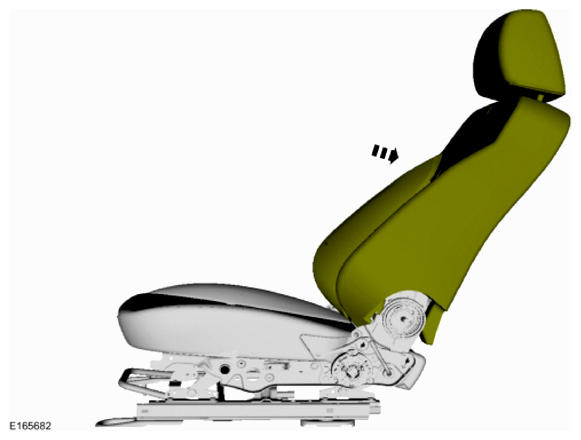

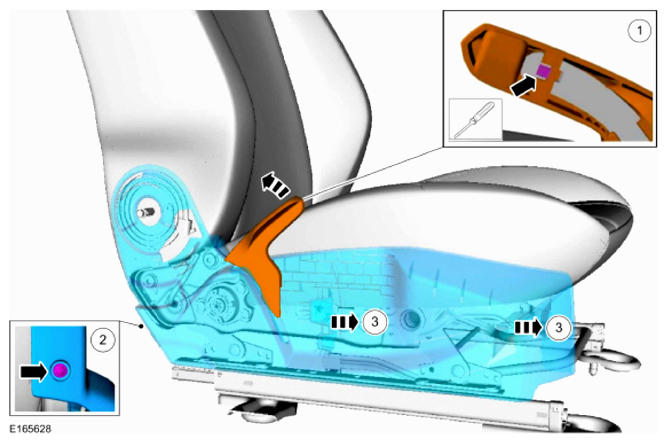

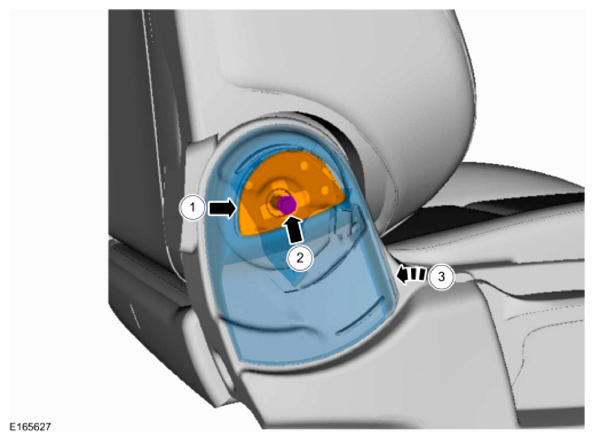

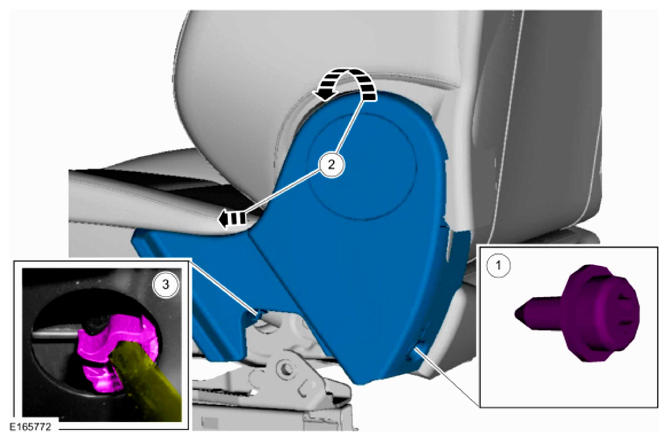

1. 2. Torque : 35 lb.in (4.0 Nm)
1. If equipped.
2. Torque : 27 lb.in (3.0 Nm)

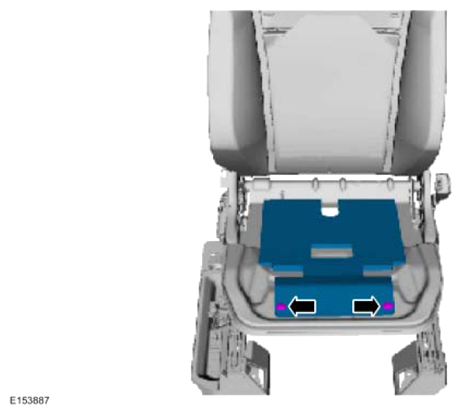

1. Torque : 27 lb.in (3 Nm)

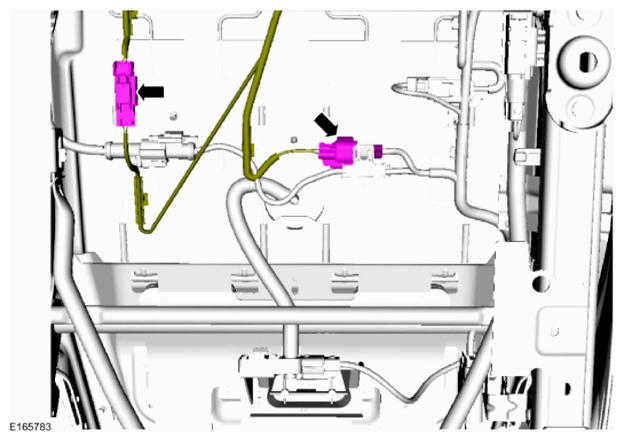

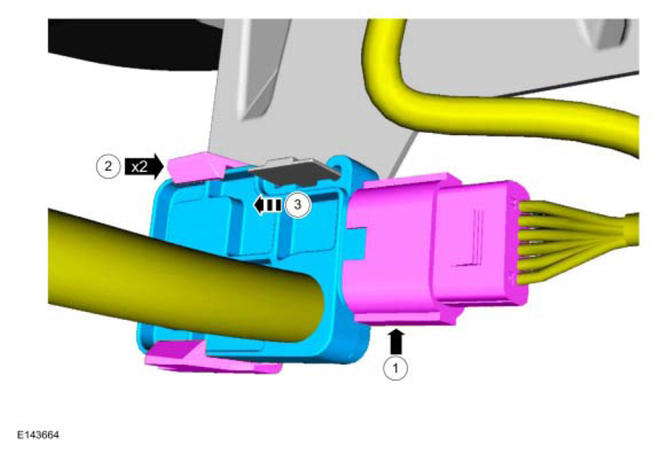

Heated seat

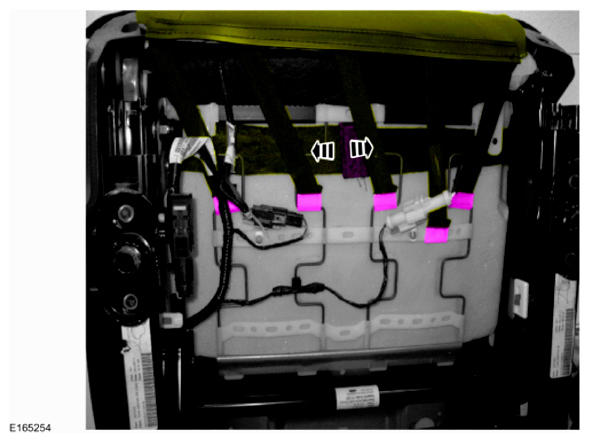

All seats except Recaro™

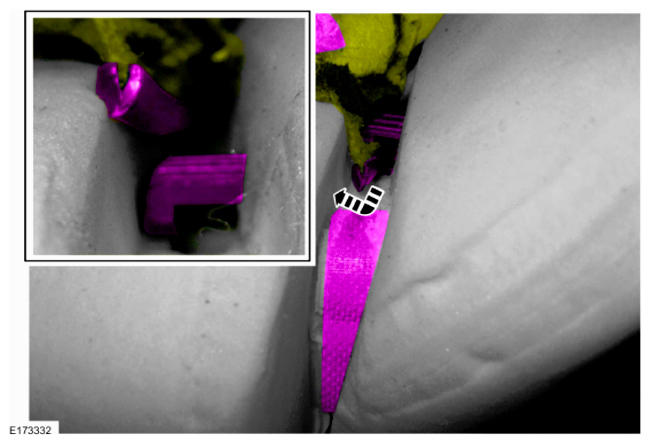

Recaro™ seat

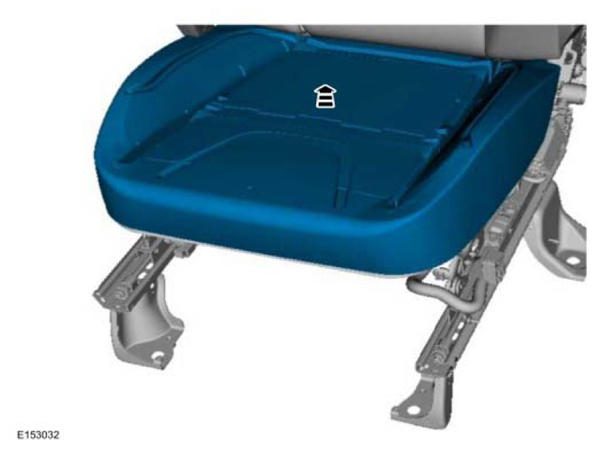

All seats

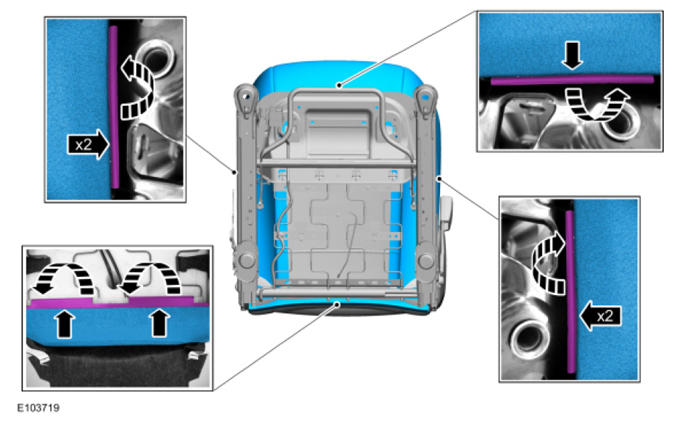

NOTE: Base seat shown in illustration, Recaro™ similar.

Recaro™ seats

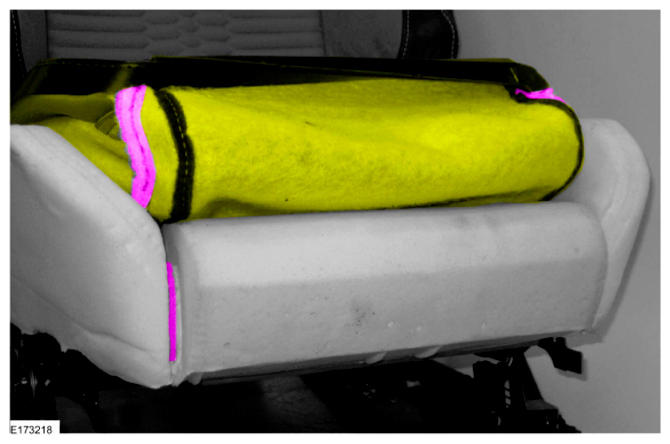

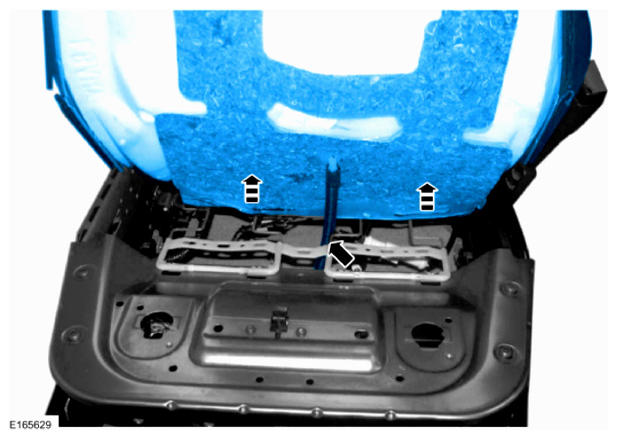

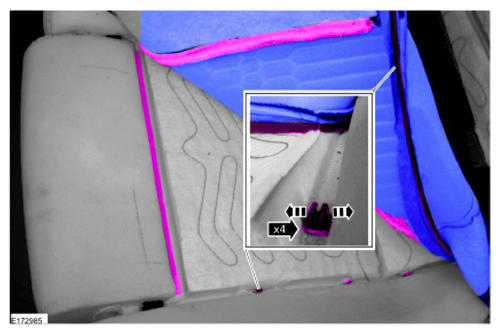

NOTE: Use care when separating the cushion trim cover from the hook-and-loop strips, or the hook-and-loop strips can be torn from the cushion foam pad.
On both sides.

Seats equipped with original equipment (OE) occupant classification system (OCS)
All seats
NOTE: Original equipment (OE) OCS shown in illustration, service kit similar.
NOTE: Follow the unique instructions or graphic for this step in installation

Recaro™ seats

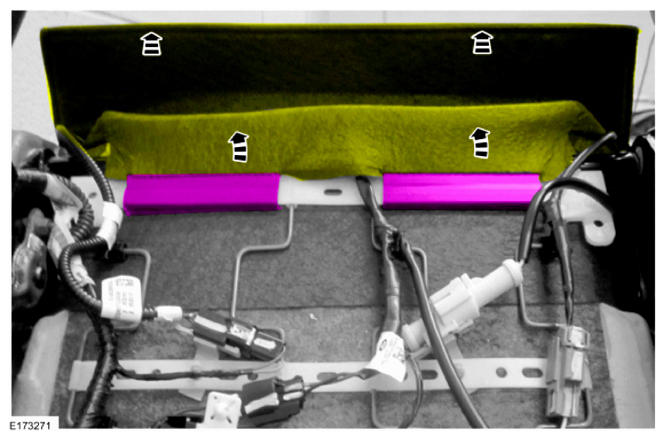

NOTE: Use care when separating the cushion trim cover from the hook-and-arrow strip, or the hook can be torn from the cushion foam pad.

On both sides.

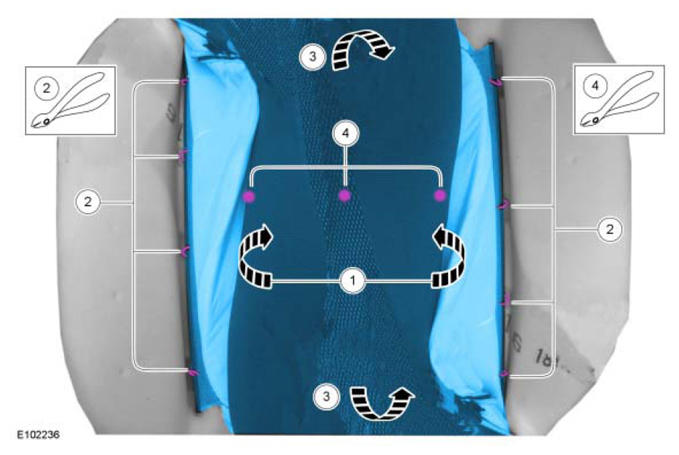

All seats except Recaro™
