Heated Rear Window Element Connector End View (C402A)

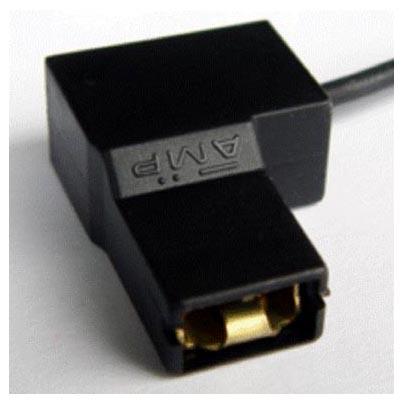

Fig 1: Identifying Heated Rear Window Element Connector (C402A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRD06 (BN-YE)	14	RELAY - HEATER REAR WINDOW

Available Pigtail Kits
Pigtail Kit Part Number WPT-748	Service Part Number: 3U2Z-14S411-DXAA  Gauge: 20  Pin material: Tin  Cavities: 1  Vehicle Uses Switch - Park Brake
Pigtail Kit Part Number WPT-1022	Service Part Number: 3U2Z-14S411-DXAB  Gauge: 12  Pin material: Tin  Cavities: 1  Vehicle Uses Switch - Heated Back Light (Rear Defrost) Switch - Park Brake Terminal - Rear Window Defroster Grid
