Section 1 (Engine Mechanical - 1.0L ECOBOOST): Removal: Engine

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

G09548777
300-OTC1585AE
Powertrain Lift
G09548778
300-OTC1819E
2, 200# Floor Crane, Fold Away
Tie Rod End Remover
Steering Wheel Holder
Adjustable Mounting Arm
Cable Ties
Hose Clamp Remover/Installer
Wooden Block
  1. Refer to: JACKING AND LIFTING - OVERVIEW .
  2. Refer to: FUEL SYSTEM PRESSURE RELEASE .
  3. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
  4. If equipped.

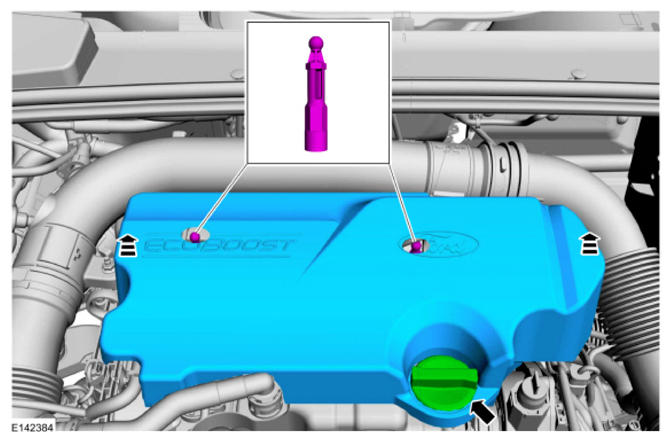

    G09548779

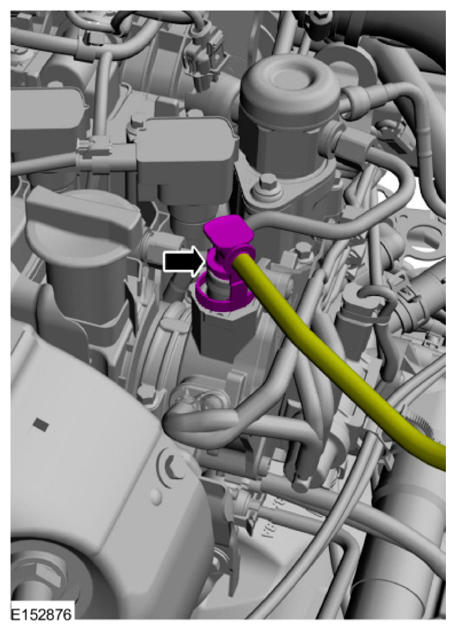

  5. G09548780

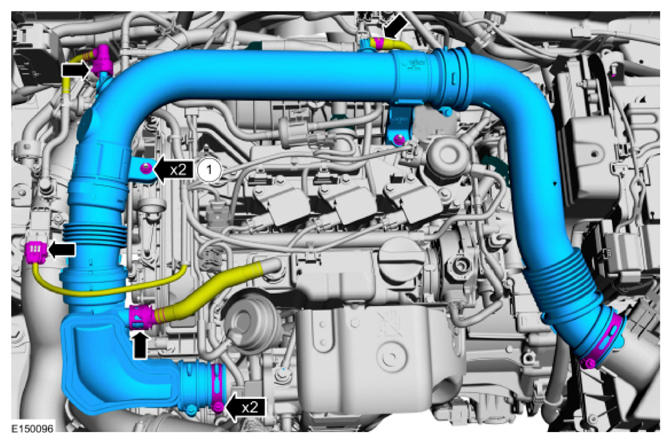

  6. Use the General Equipment: Hose Clamp Remover/Installer
    G09548781
  7. Use the General Equipment: Hose Clamp Remover/Installer
    G09548782

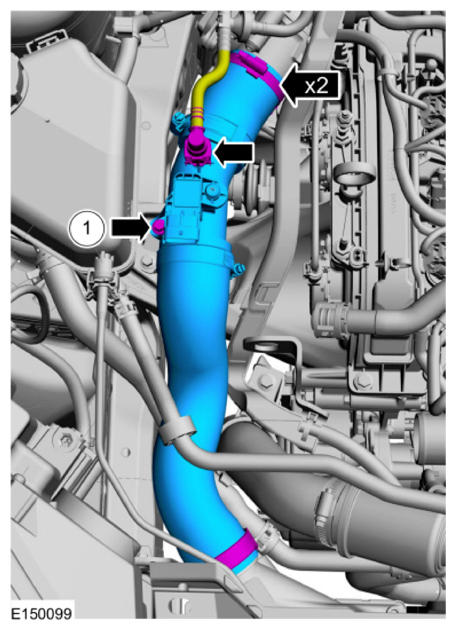

  8. G09548783
  9. Refer to: BATTERY TRAY - 1.0L ECOBOOST (90KW/120PS)/1.6L ECOBOOST (132KW/180PS) - SIGMA .
  10. G09548784

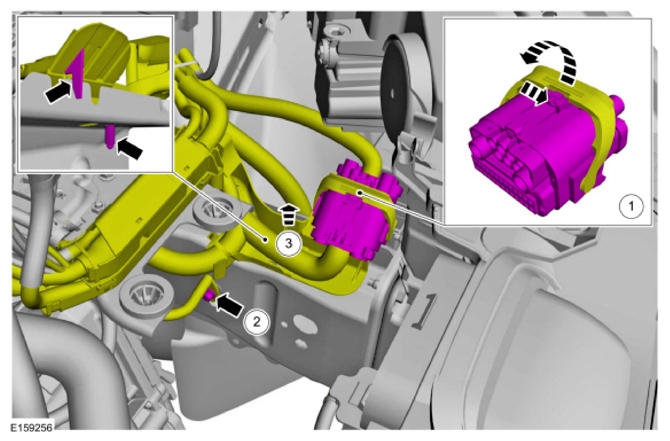

  11. G09548785

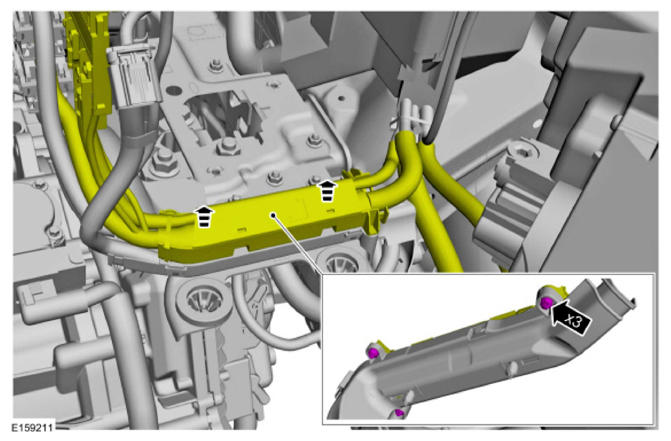

  12. G09548786

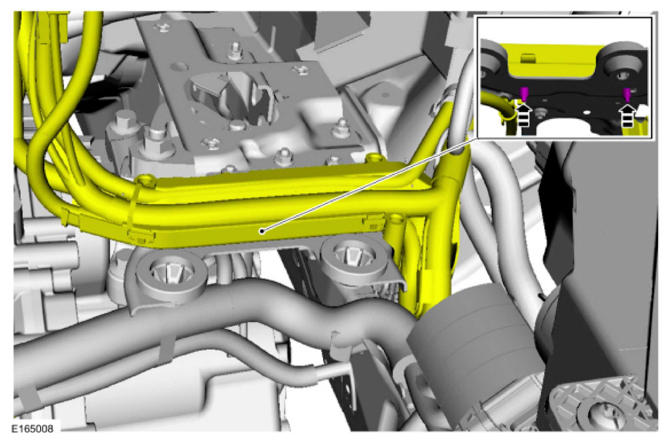

  13. G09548787
  14. G09548788
  15. G09548789
  16. G09548790
  17. Use the General Equipment: Hose Clamp Remover/Installer
    G09548791
  18. G09548792
  19. NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
    NOTE: Make sure that all openings are sealed.
    G09548793

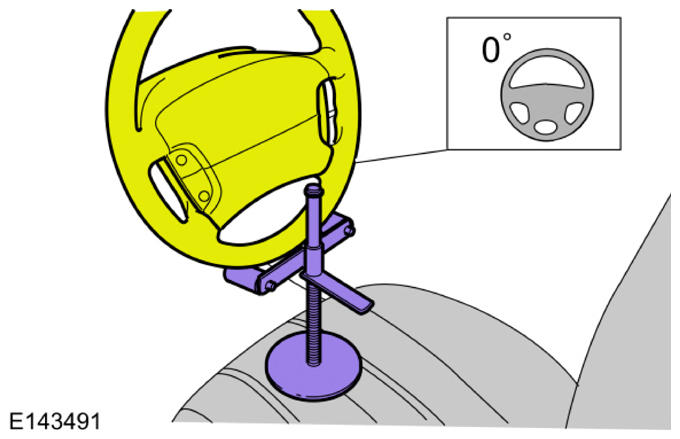

  20. Use the General Equipment: Steering Wheel Holder
    G09548794

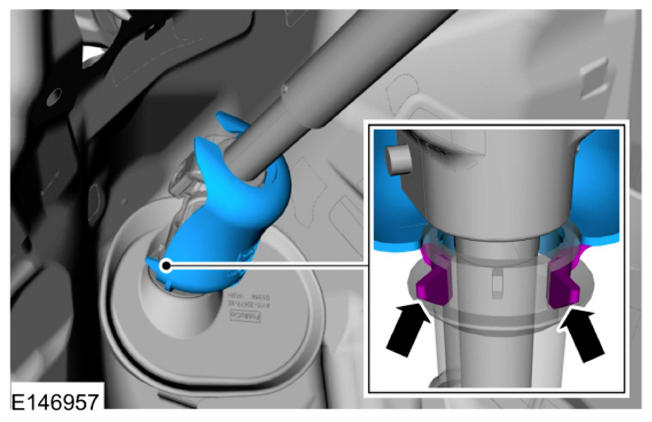

  21. If equipped.
    G09548795
  22. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the steering column shaft has rotated, remove and re-center the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

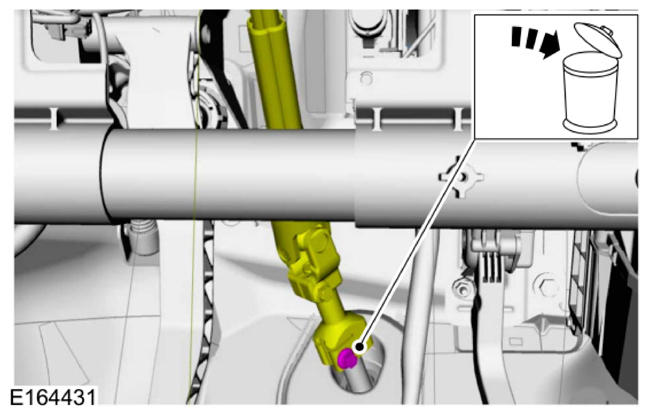

    G09548796

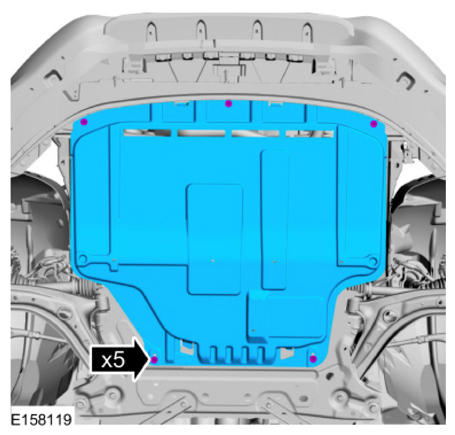

  23. G09548797
  24. G09548798
  25. NOTE: Gearshift cables must not be kinked or bent.
    G09548799

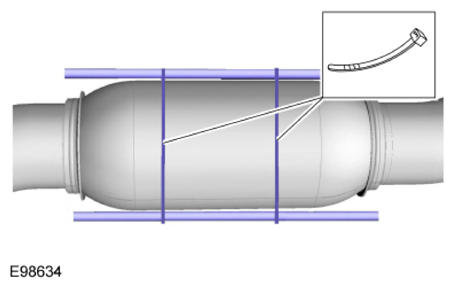

  26. NOTE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

    Use the General Equipment: Cable Ties

    G09548800
  27. G09548801

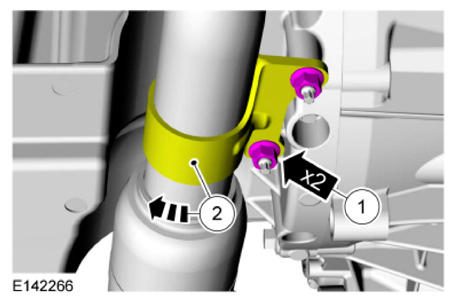

  28. G09548802
  29. G09548803

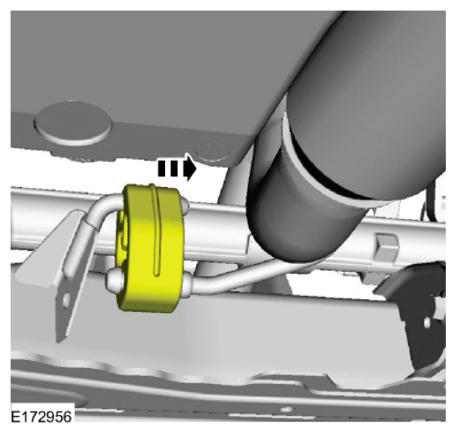

  30. G09548804
  31. Torque  : 18 lb.ft (25 Nm)

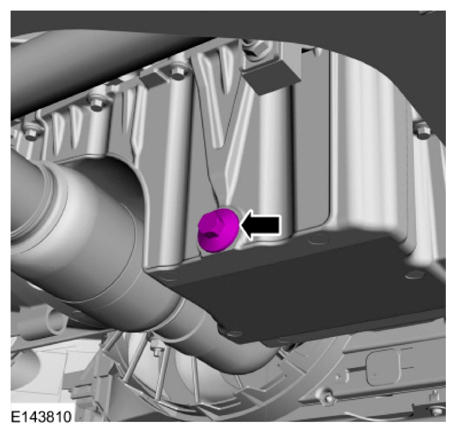

    G09548805
  32. G09548806

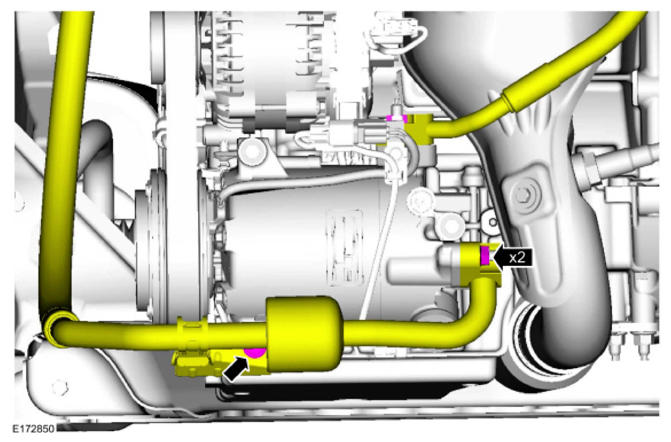

  33. NOTE: Make sure that all openings are sealed.
    G09548807
  34. G09548808
    1. Refer to: SPRING LOCK COUPLINGS .
    2. Refer to: QUICK RELEASE COUPLING .
      G09548809
  35. Front RH  and LH  .

    Refer to: WHEEL AND TIRE .

  36. G09548810

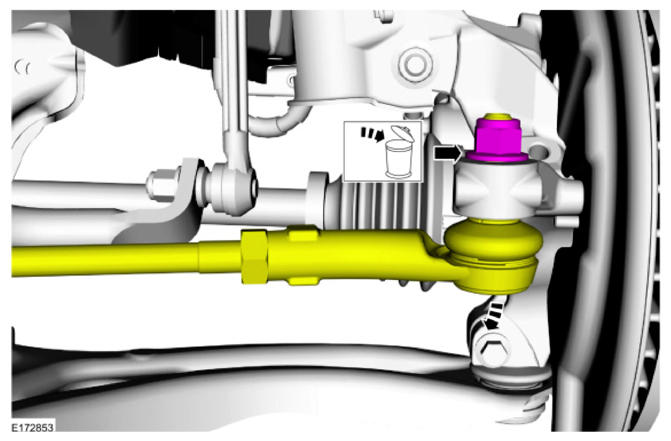

  37. Use the General Equipment: Tie Rod End Remover
    G09548811

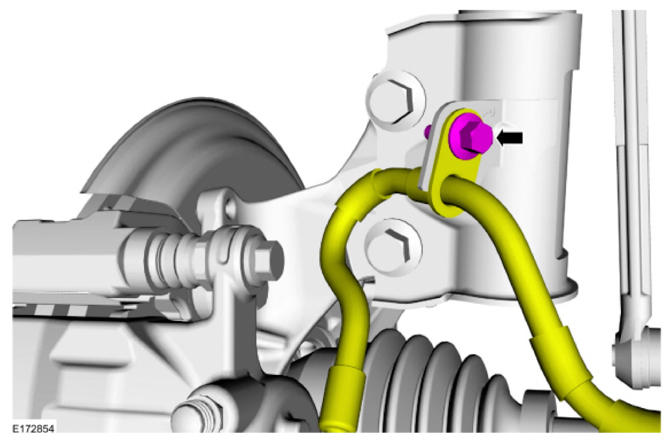

  38. G09548812
  39. NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may result.

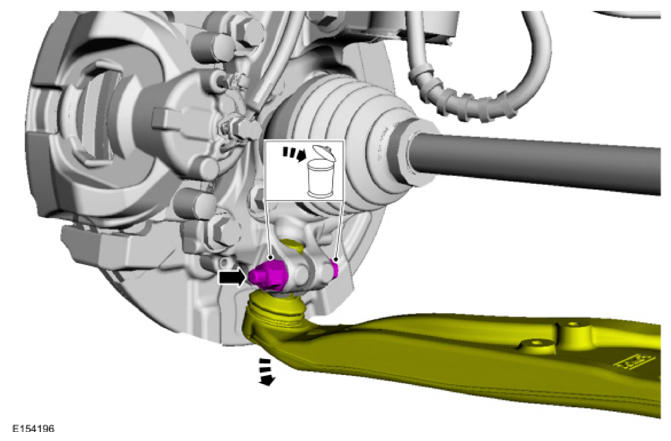

    G09548813

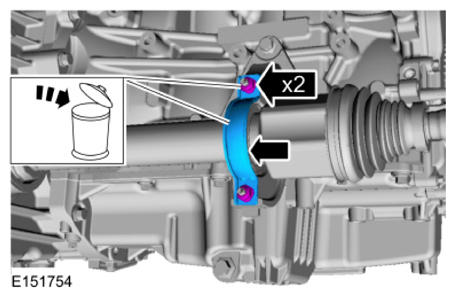

  40. G09548814

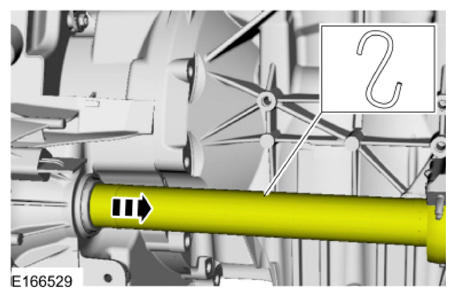

  41. G09548815
  42. G09548816
  43. Remove LH  brake disc.

    Refer to: BRAKE DISC .

  44. G09548817

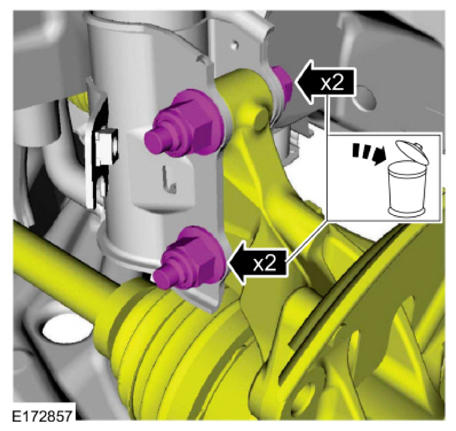

  45. G09548818

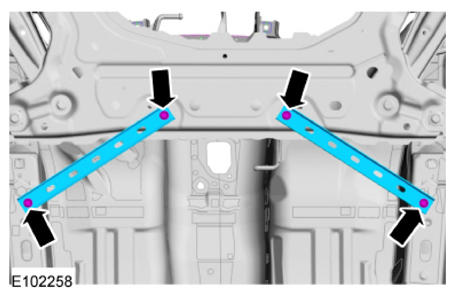

  46. G09548819

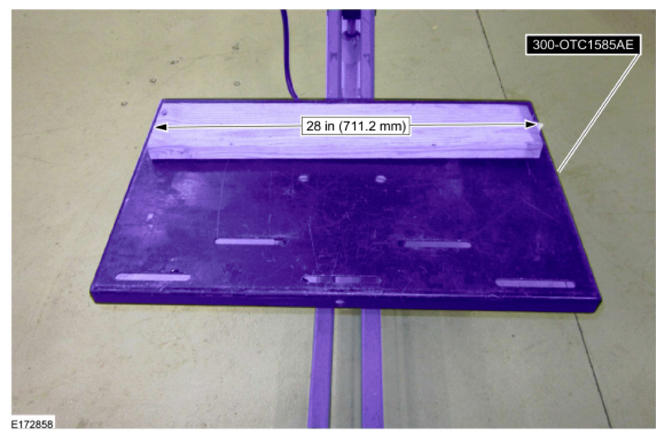

  47. Use Special Service Tool: 300-OTC1585AE Powertrain Lift  .

    Use the General Equipment: Wooden Block

    G09548820
  48. Use Special Service Tool: 300-OTC1585AE Powertrain Lift  .

    Use the General Equipment: Wooden Block

    Use the General Equipment: Adjustable Mounting Arm

    G09548821

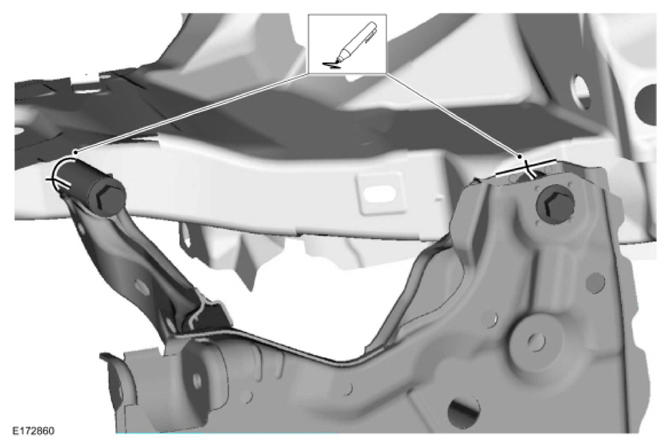

  49. G09548822

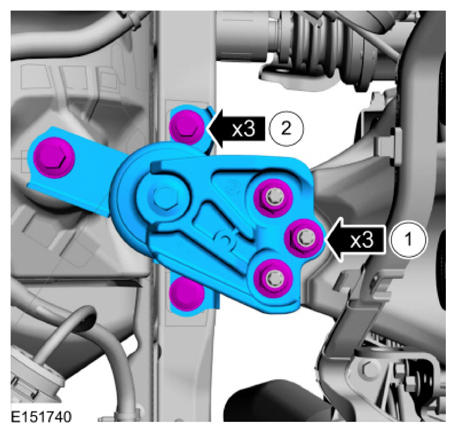

  50. G09548823
  51. G09548824

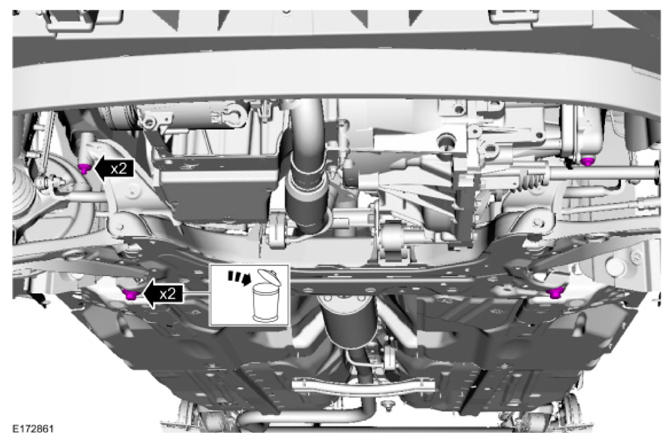

  52. G09548825

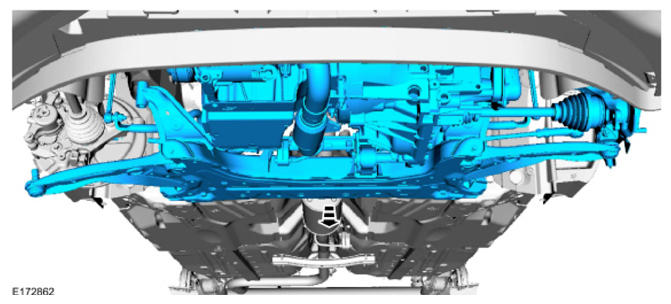

  53. Using the powertrain lift, lower the powertrain and subframe as an assembly.
    G09548826
  54. NOTE: Wiring harness removed for clarity.

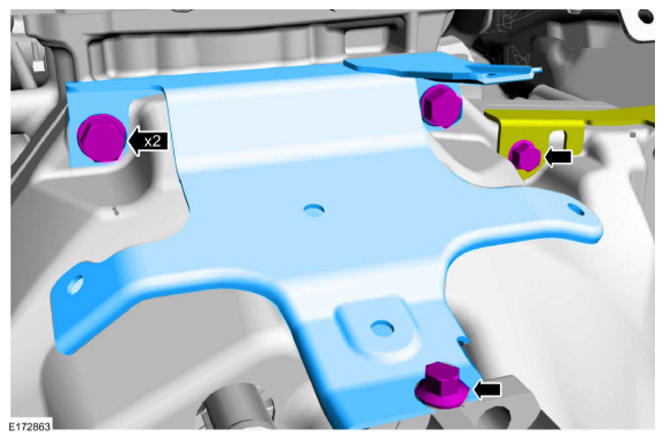

    G09548827
  55. G09548828

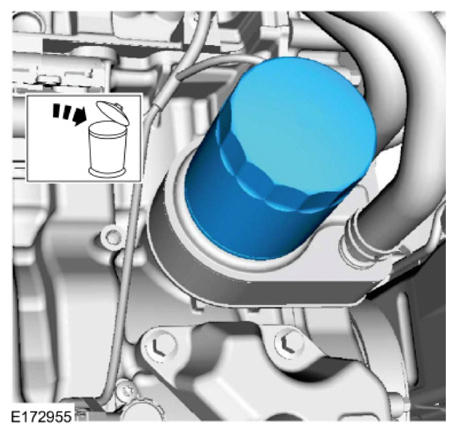

  56. G09548829
  57. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away  .
    G09548830
  58. G09548831
  59. G09548832
