Intake Manifold: Installation
WARNING: This page is about a different variant/trim than selected.

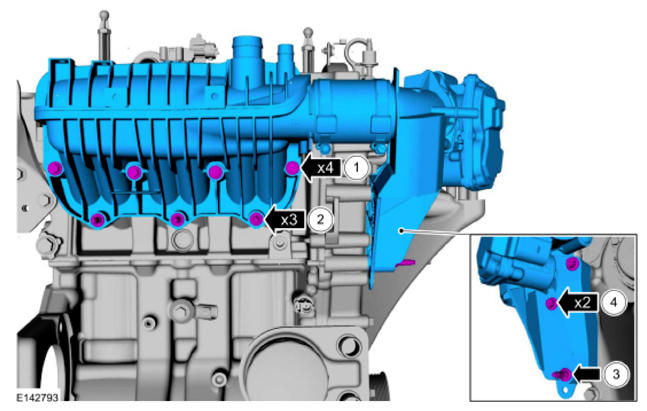

- To install, reverse the removal procedure.
-
NOTE:
Only tighten the bolts finger tight at this stage.

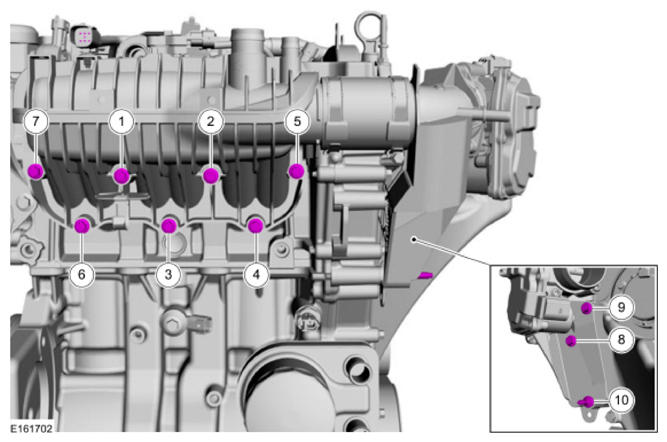

- Torque
:
1-10: 89 lb.in (10 Nm)

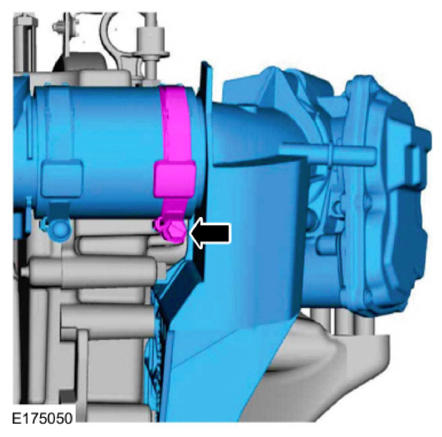

- Torque
: 44 lb.in (5 Nm)
