Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.

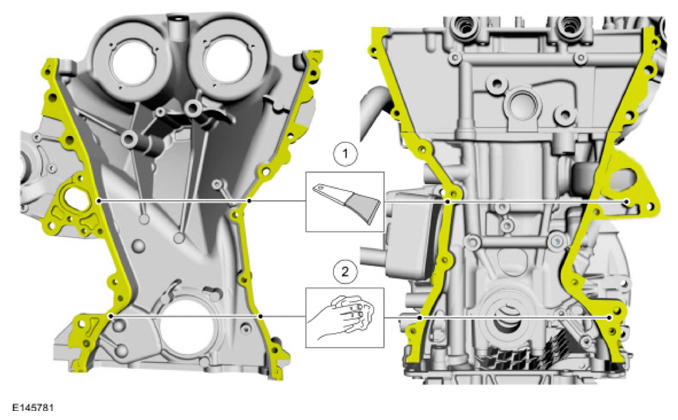

NOTE: Make sure that the surface is clean and free of foreign material before taping around the component.

Material : Motorcraft® Metal Surface Prep/ZC-31-B

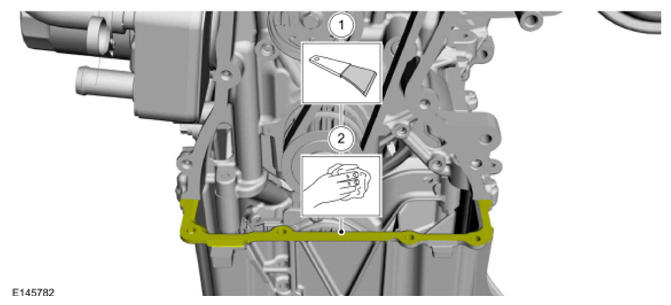

NOTE: Make sure that the surface is clean and free of foreign material before taping around the component.

Material : Motorcraft® Metal Surface Prep/ZC-31-B

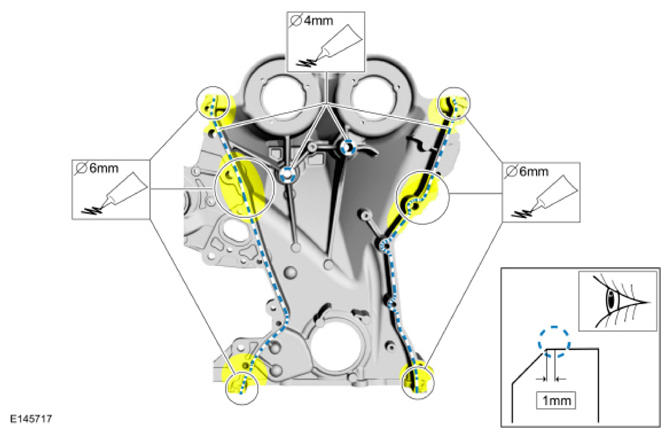

NOTE: The component must be installed within 10 minutes of applying the sealant.

Material : Silicone Gasket and Sealant/TA-30 (WSE-M4G323-A4)

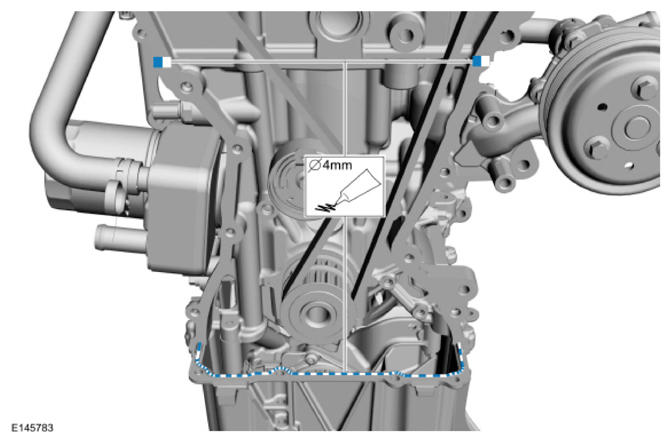

NOTE: The component must be installed within 10 minutes of applying the sealant.

Material : Silicone Gasket and Sealant/TA-30 (WSE-M4G323-A4)

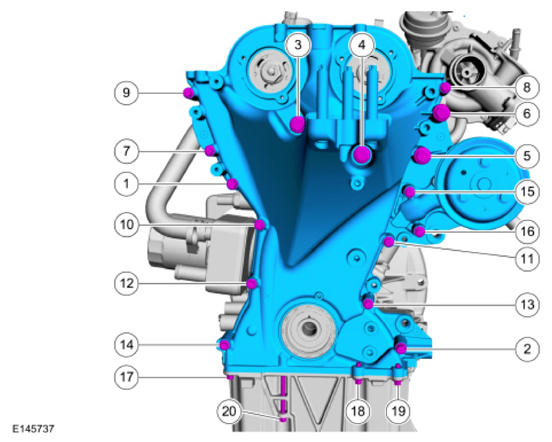

- NOTE: Make sure that new components are installed.

  Torque :

  1-2, M6x60: 44 lb.in (5 Nm)
- NOTE: Make sure that new components are installed.

  Torque :

  3-6, M10x95: 89 lb.in (10 Nm)
- NOTE: Make sure that new components are installed.

  Torque :

  7-16 M6x60: 44 lb.in (5 Nm)
- Torque :
  17-19 M6x60: 44 lb.in (5 Nm)

  20 M6x75: 44 lb.in (5 Nm)
- Torque :
  3-6: 30 lb.ft (40 Nm)
- Torque :
  3-4:

  Stage 1: 52 lb.ft (70 Nm)

  Stage 2: 90°
- Torque :
  5-6:

  Stage 1: 52 lb.ft (70 Nm)

  Stage 2: 90°
- 1-2
  Torque :

  Stage 1: 80 lb.in (9 Nm)

  Stage 2: 90°
- 7-20
  Torque :

  Stage 1: 133 lb.in (15 Nm)

  Stage 2: 90°
Torque : 89 lb.in (10 Nm)

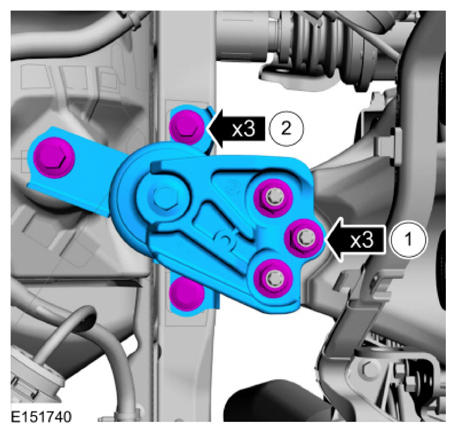

- 1. Torque : 59 lb.ft (80 Nm)
- 2.
  NOTE: Only tighten the bolts finger tight at this stage.
Remove

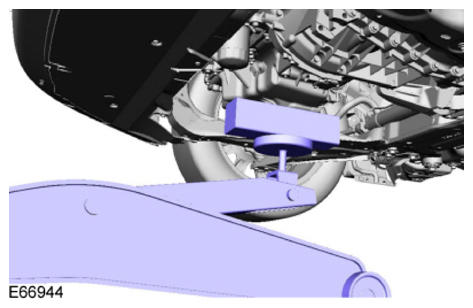

Use the General Equipment: Trolley Jack

Use the General Equipment: Wooden Block
Torque : 66 lb.ft (90 Nm)
