Valve Clearance Adjustment: Check
WARNING: This page is about a different variant/trim than selected.
- Refer to: VALVE COVER .
-
NOTE: Only rotate the crankshaft clockwise.

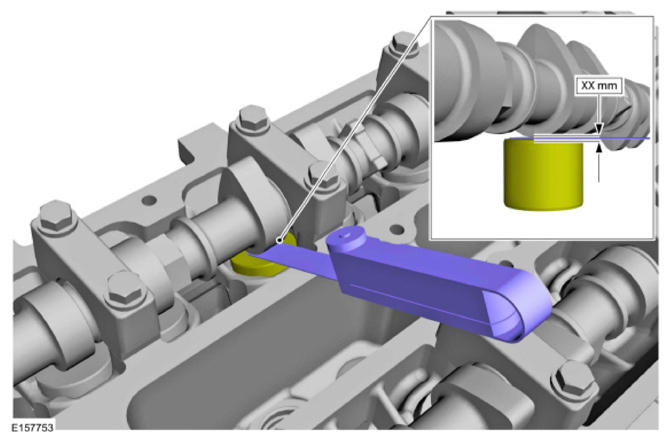

Rotate the crankshaft until the corresponding piston is at TDC and then measure the valve clearance(s).
Use the General Equipment: Feeler Gauge
- Note down each cylinder number and the valve clearances measured.
- Compare the measured valve clearance(s) with the specifications.
Refer to: SPECIFICATIONS .
