Disassembly and Assembly of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

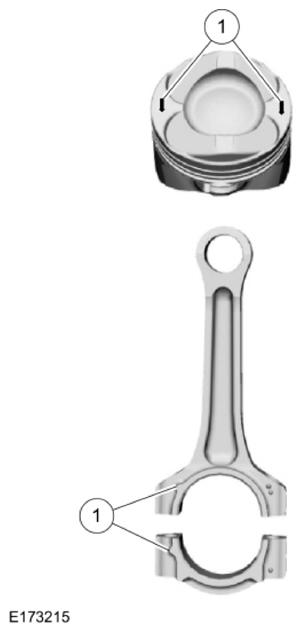

    • 1. Indicates front of engine.
      G09548936
  2. G09548937

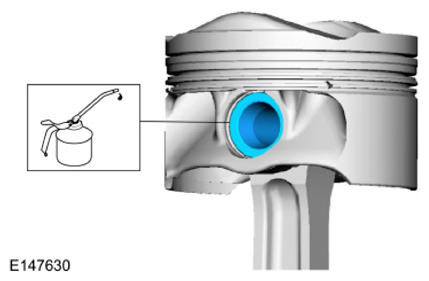

  3. Material  : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.)/XO-5W20-QSP (U.S.) (WSS-M2C945-A)
    G09548938

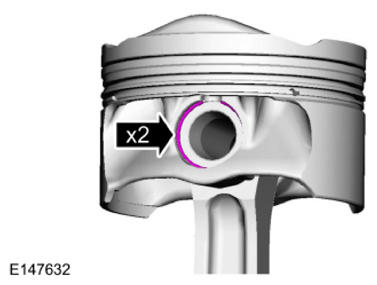

  4. G09548939

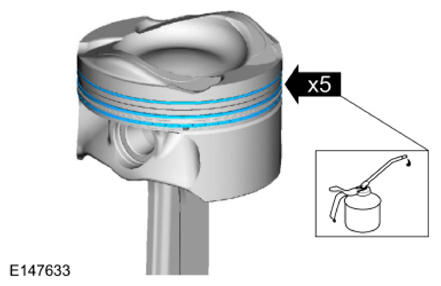

  5. Material  : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.)/XO-5W20-QSP (U.S.) (WSS-M2C945-A)
    G09548940

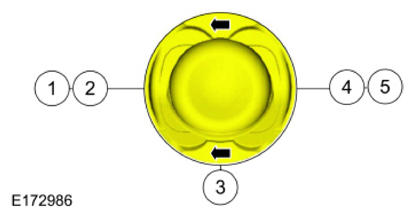

  6. NOTE: The upper and lower compression rings are to be fitted with the identification marks on the upper side.
    NOTE: Arrows faces the front of the engine.
    • 1. Upper compression ring gap location.
    • 2. Upper oil control segment ring gap location.
    • 3. Expander ring gap location.
    • 4. Lower oil control segment ring gap location.
    • 5. Lower compression ring gap location.
      G09548941
