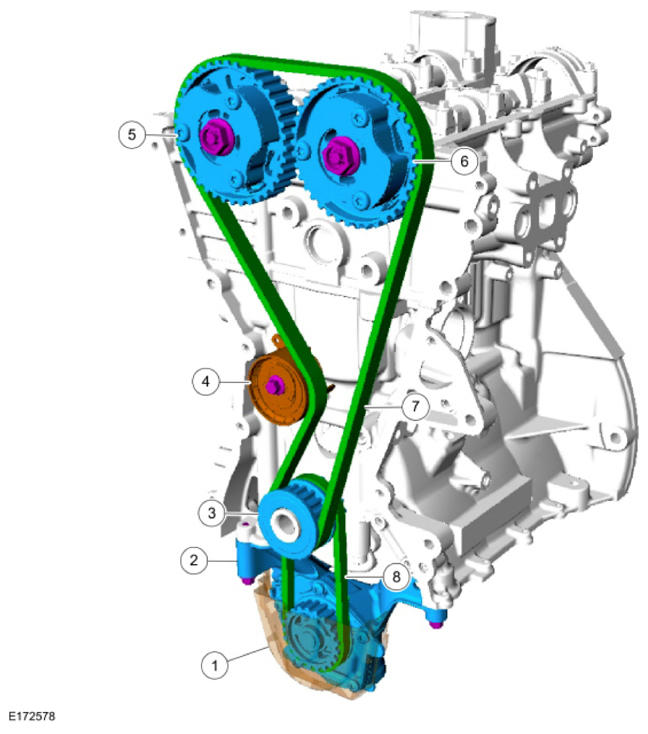

Timing components
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6664 | Oil pump cover |
| 2 | 6600 | Oil pump |
| 3 | 6315 | Timing drive pulley (outer)/Oil pump drive pulley (inner) |
| 4 | 6K245 | Timing belt tensioner |
| 5 | 6C524 | VCT (variable camshaft timing) unit-intake |
| 6 | 6C525 | VCT (variable camshaft timing) unit-exhaust |
| 7 | 6K288 | Timing belt |
| 8 | 6B651 | Oil pump belt |
