Ambient Lighting Module: Removal

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the instrument panel lower trim panel. REFER to: Instrument Panel Lower Trim Panel

2.

Remove the floor console finish panel. REFER to: Floor Console

3.

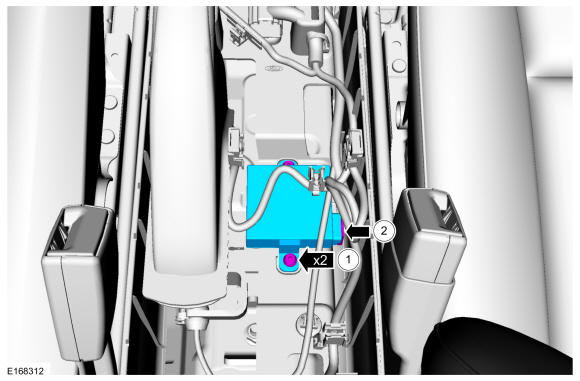

Remove the ambient lighting module.
- 1.

  Remove the screws.
- 2.

  Disconnect the electrical connector.

GFD55098

Courtesy of FORD MOTOR COMPANY
