Vehicle Dynamic Systems
Vehicle Dynamic Systems

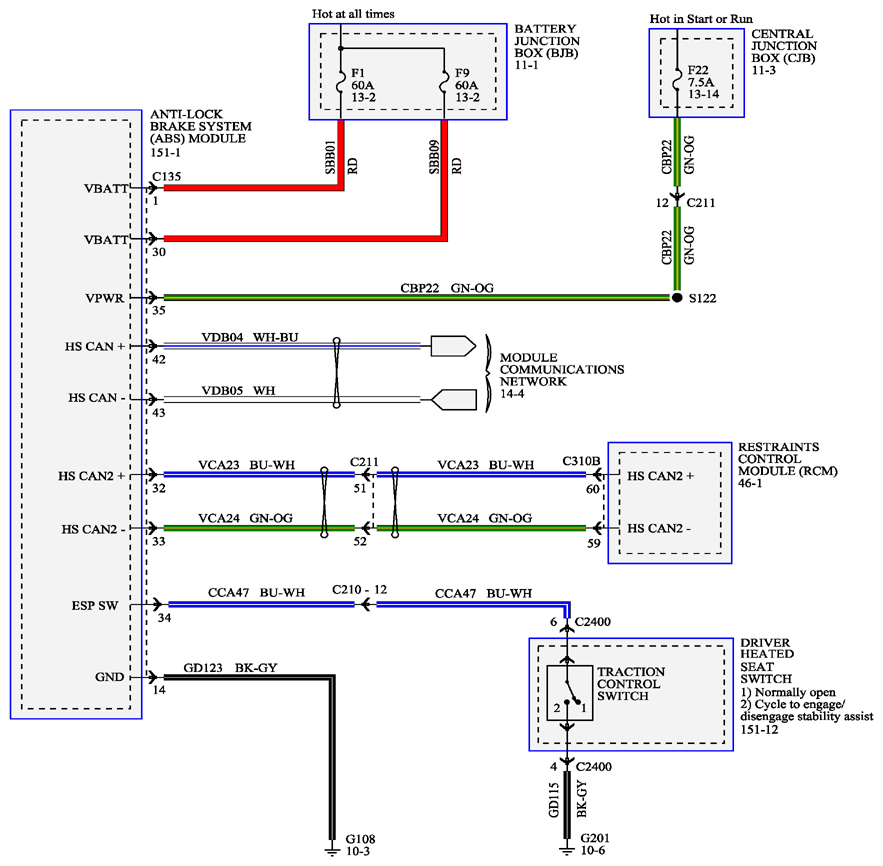

Fig 1: Vehicle Dynamic Systems - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

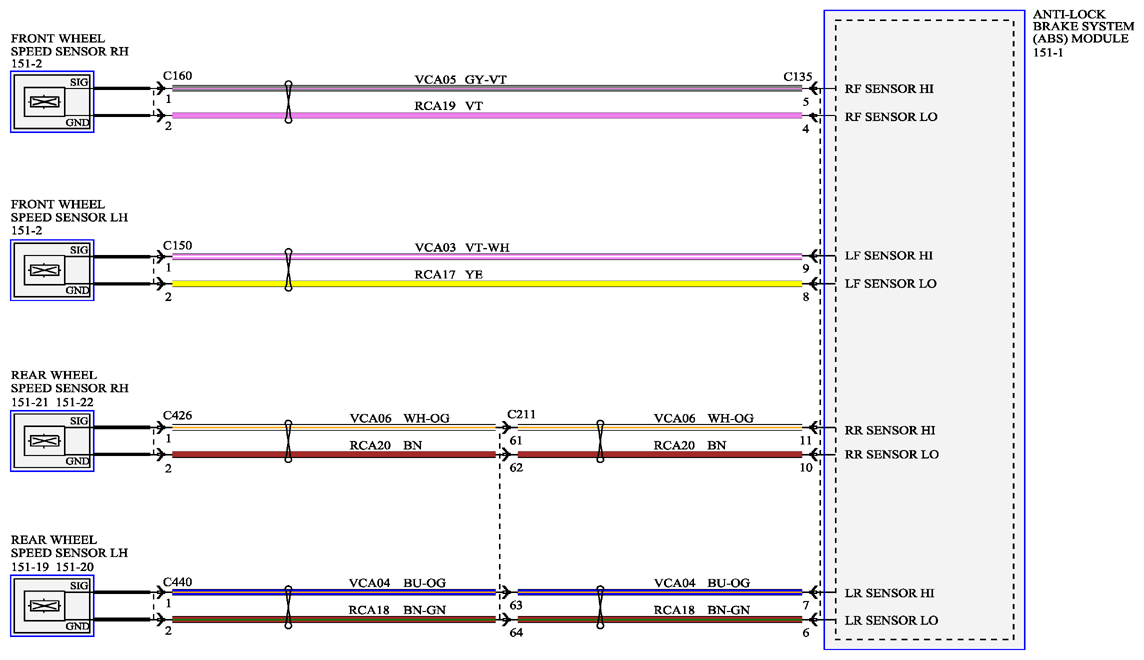

Fig 2: Vehicle Dynamic Systems - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
