Transmission Control Module (TCM) Wiring Harness: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: BATTERY TRAY - 1.0L ECOBOOST (90KW/120PS)/1.6L ECOBOOST (132KW/180PS) - SIGMA .

    Refer to: BATTERY TRAY - 1.6L DURATEC-16V TI-VCT (88KW/120PS) - SIGMA .

    1. 2. Torque  : 89 lb.in (10 Nm)
    2. 3. Torque  : 18 lb.ft (25 Nm)
      G09551321
  3. G09551442

    Vehicles with 1.0L engine

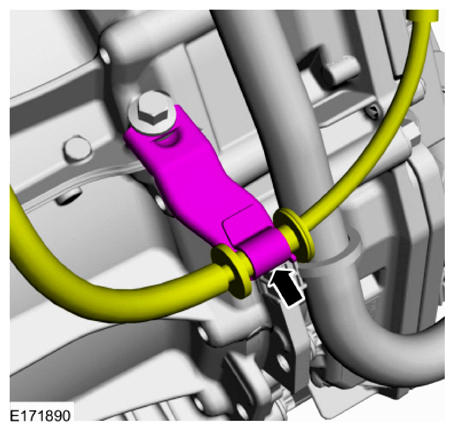

  4. G09553189

    All vehicles

  5. NOTE: Take extra care not to damage the wiring harnesses.

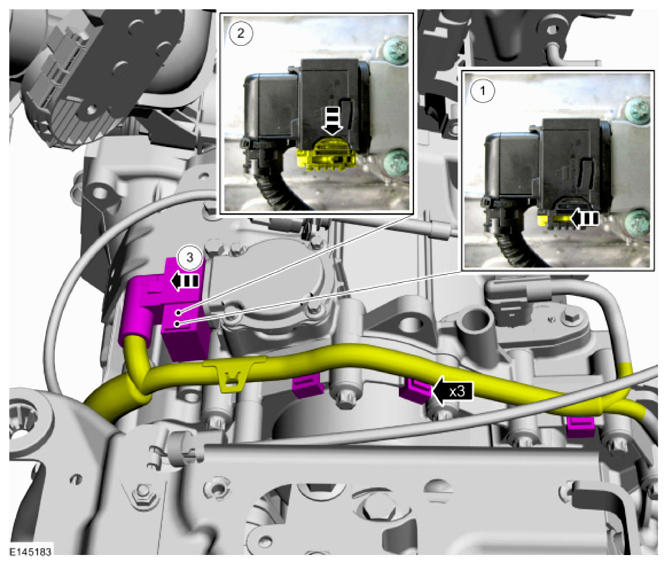

    G09553190

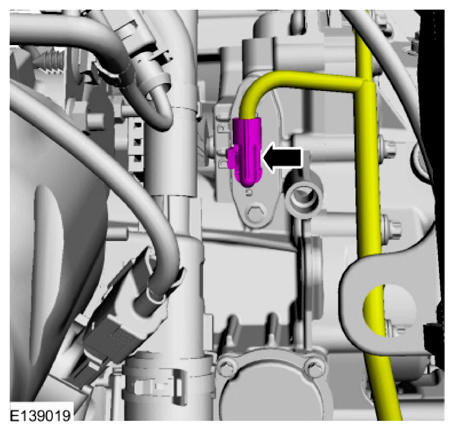

  6. G09553191
  7. Refer to: JACKING & LIFTING .
  8. If equipped.
    G09548667

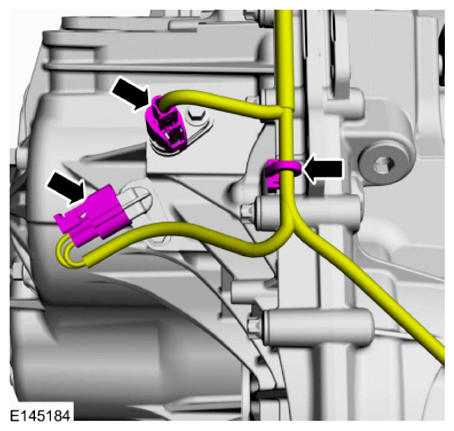

  9. G09553193
  10. G08064140

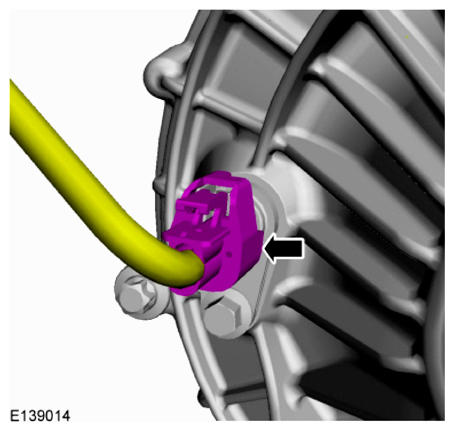

  11. G09553195

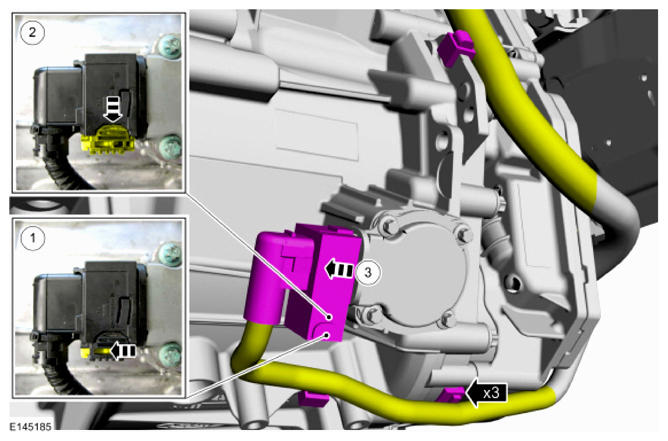

  12. G09553196
  13. NOTE: Make sure that the terminals or pins/sockets of the transmission control module (TCM) and the TCM electrical connector are not bent or damaged.

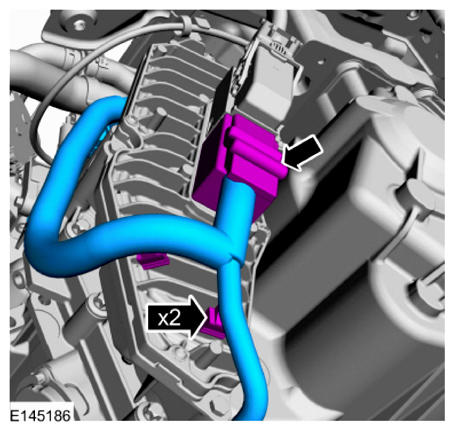

    G09553197
