Exterior Rear View Mirror Switch: Schematic

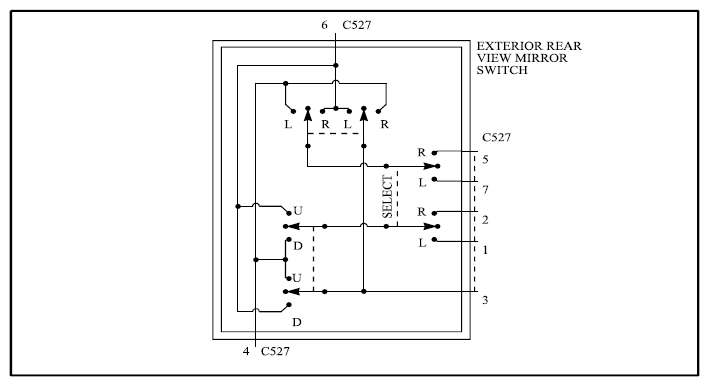

Fig 1: Exterior Rear View Mirror Switch Schematic

G09259748

Courtesy of FORD MOTOR CO.
