OEM Ground Distribution: Grounds: G301

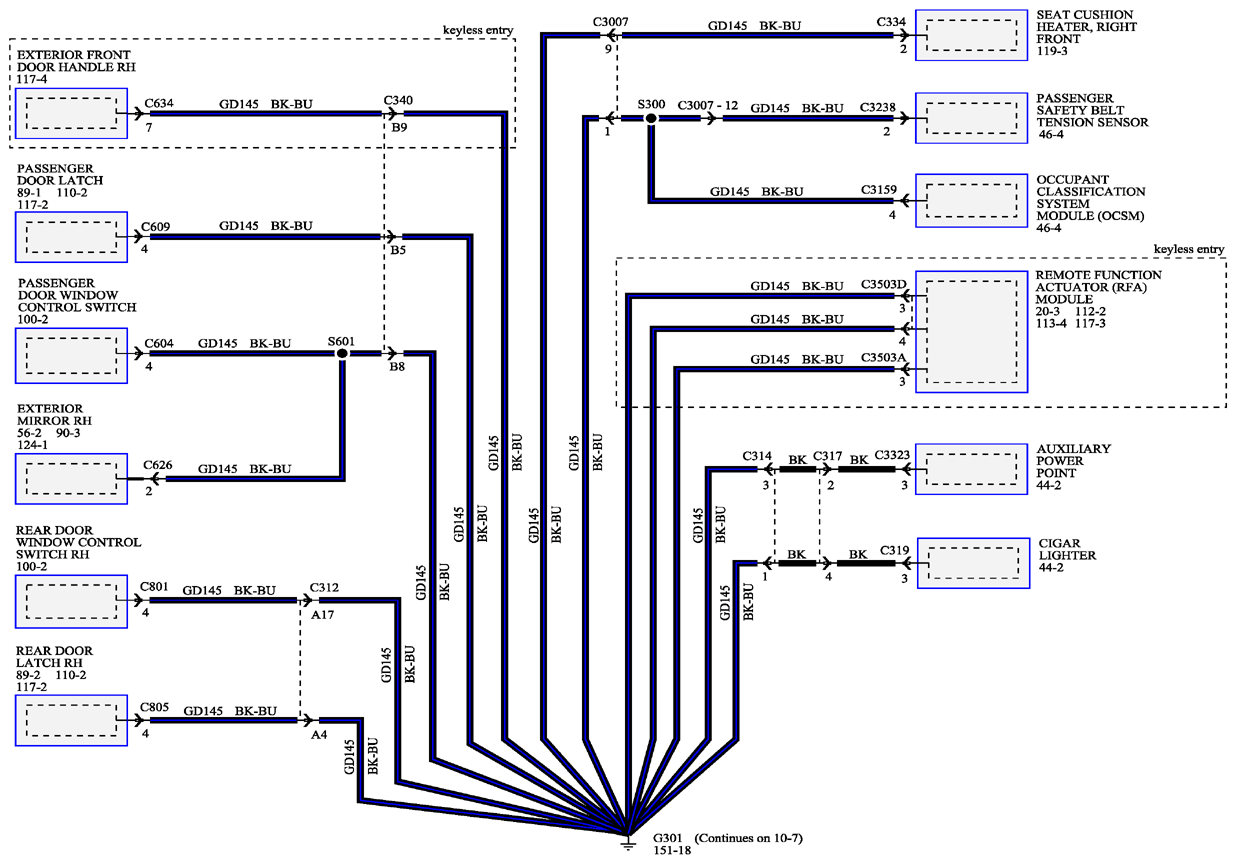

Fig 1: Grounds - Wiring Diagram (G301)

G09259555

Courtesy of FORD MOTOR CO.
