OEM Ground Distribution: Grounds: G201

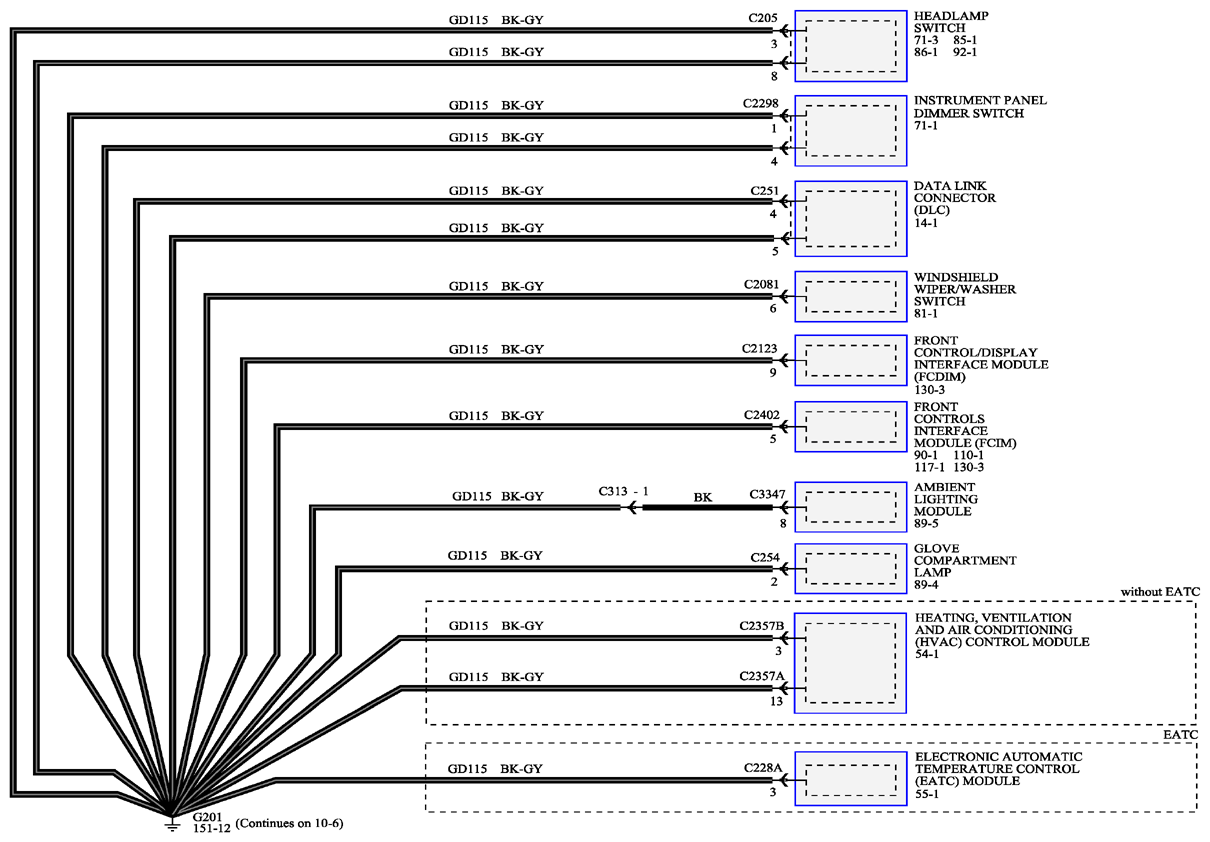

Fig 1: Grounds - Wiring Diagram (G201)

G09259552

Courtesy of FORD MOTOR CO.
