Current Flow (1)

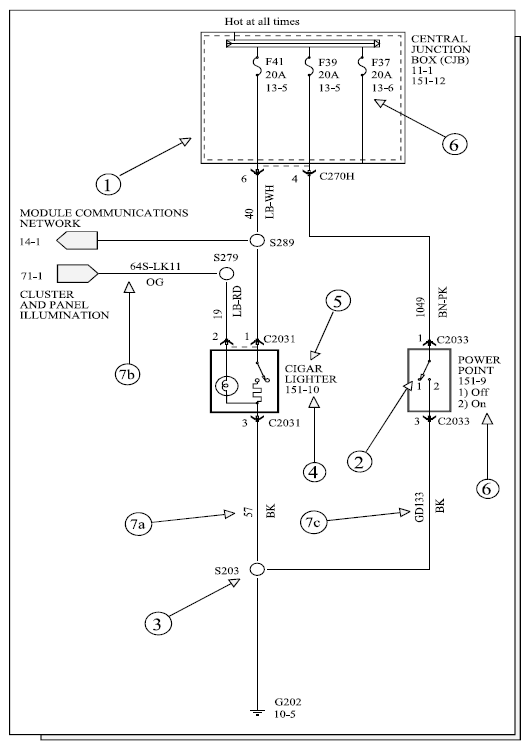

Each graphic normally starts with the component that powers the circuit, such as a fuse or the ignition switch. Current flow is shown from the power source at the top of the illustration to ground at the bottom of the illustration. A full representation of the power supply of a fuse or the power distribution from a fuse to various components is given in "Power Distribution ". Full representation of the ground connections are shown in "Ground Distribution ".
| Item | Description |
|---|---|
| 1 | Current Flow |
| 2 | Switch Positions |
| 3 | Splices |
| 4 | Component Referencing |
| 5 | Component Names |
| 6 | Internal Name and Function Identification Numbers |
| 7 | Circuit Numbering and Wire Identification |
